Description

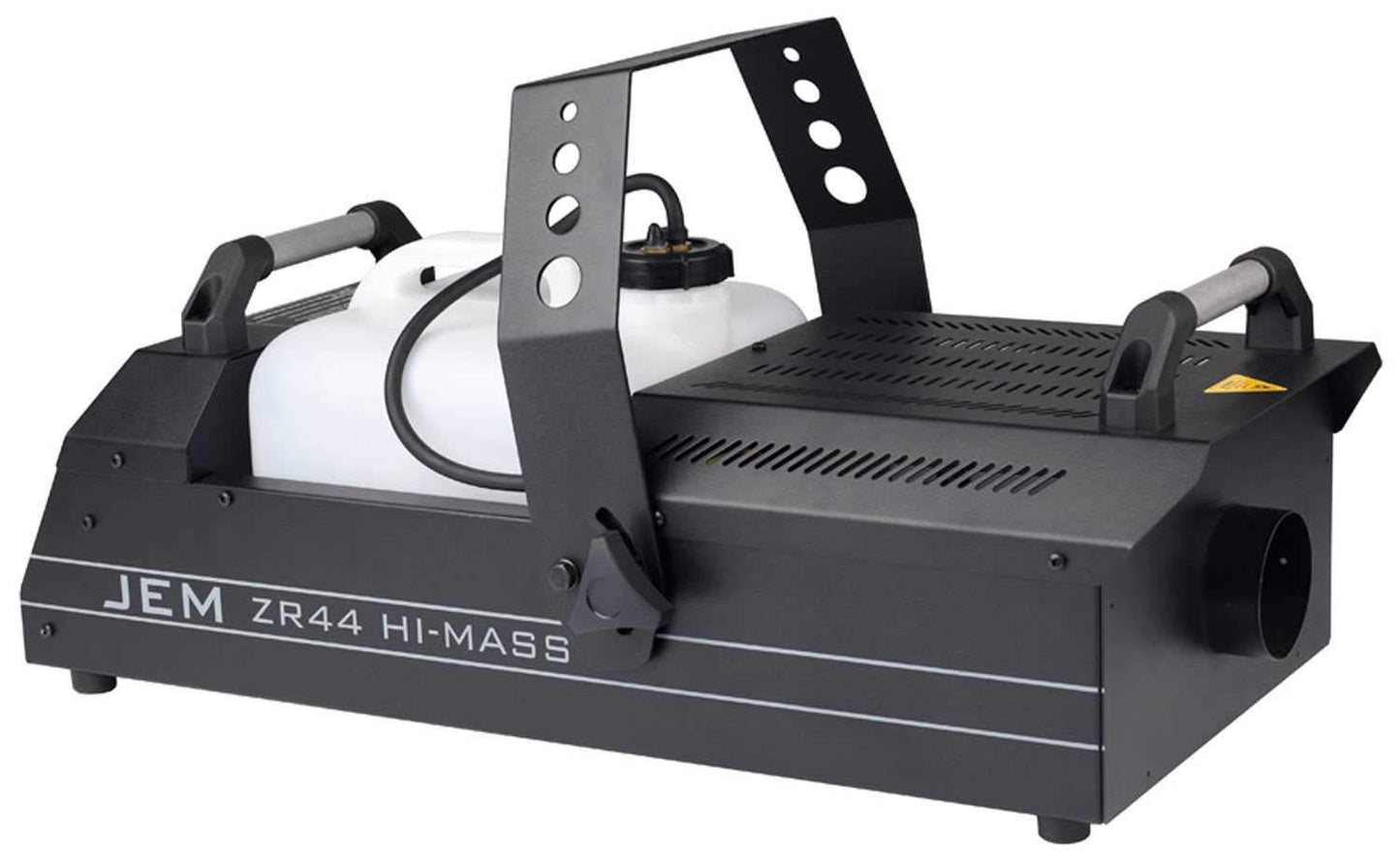

Martin JEM ZR44 230V Hi-Mass DMX Fog Machine

The Jem ZR44 Hi-Mass is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.

Features:
  • 3 and 5 pin DMX interface
  • Prepared for multifunctional digital remote
  • RDM capable
  • Floor standing or truss mounting
  • Neutrik PowerCon connector
  • 1200 m³/min fog output
  • Continuous output
  • Tough and solid design
  • 1800 W heat exchanger
  • 7.5 min heat-up time
  • Indirect Fluid Sensing System
  • Proprietary Pro Steam Simulation fluid solution
  • Different fluid options for different applications
  • Leaves no oil residue on light fixtures
  • Soft Start technology
Specifications:

Performance
  • Max. fog output (approx.): 1200 m3
  • Max. operating time at const. full output (approx.) - 9.5L: 3.5 Hours
  • Operating time: Continuous, automatic level adjustment
  • Warm-up time (approx.): 7.5 minutes
Control and Programming
  • Control options: Onboard analogue remote control (Supplied), Multi-Function digital remote control (Optional), DMX (3 and 5 pin), 0-10V analog, RDM capable
  • Remote control features: Instant or timer-controlled variable output
  • Delay time 2-144 seconds, run time 2-144 seconds
  • DMX channels: 1
  • RDM Capable via DMX socket
  • Digital link machine to machine (Using optional Digital Multi-Function remote)
Construction
  • Housing: Steel and aluminum
  • Heat exchanger: 1800 W, direct thermal protection
Fluid System
  • Fluid pump: Oscillating piston, high pressure X2
  • Onboard fluid capacity: 9.5 l
  • Fluid consumption at peak output: 150 ml per minute
  • Indirect fluid sensing system for unattended operation
Installation
  • Orientation: Floor or adjustable mounting bracket
Connections
  • Remote control: 2 x 3-pin locking XLR
  • DMX and RDM data in/out: 2 x 3-pin and 2 x 5-pin locking XLR
  • Power cable entry: Neutrik PowerCon
Electrical
  • AC power (EU models): 220-240 V nominal, 50 Hz
  • AC power (US models): 110-120 V nominal, 60 Hz
  • Main fuse (220-240 V power): 10 A
  • Main fuse (110-120 V power): 20 A
Typical Power and Current
  • US model: 120 V, 60 Hz: 1750 W, 14.58 A
  • Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • 50/60Hz operation
Thermal
  • Maximum ambient temperature (Ta max.): 40° C
  • Exterior surface temperature, steady state: 50° C
  • Max. nozzle temperature: 200° C
Physical
  • Length:685 mm
  • Length (Inc Optional Drip Tray):750 mm
  • Width:345 mm
  • Height:225 mm
  • Dry weight:19 kg
Included Items
  • User manual
  • Analogue remote control
  • Container 9.5l
