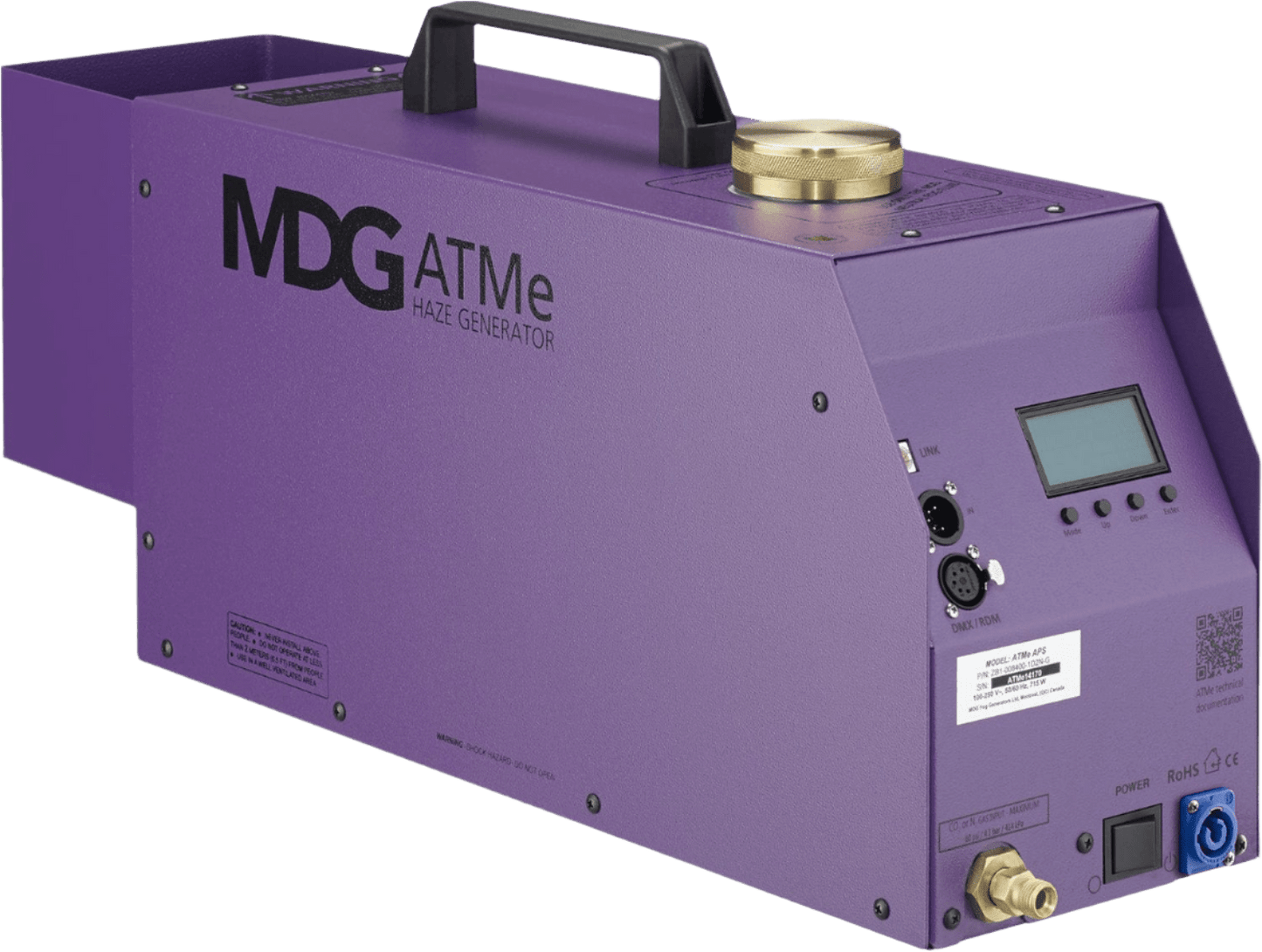

MDG ATMe Single High Output Haze Generator with Onboard DMX

The ATMe single high output haze generator is the evolution of the world-famous ATMOSPHERE^APS, the industry's standard for more than two decades.

Features:

• LONGEST HANGING TIME - Our MDG Neutral fluid is specially created for the longest hanging time.
• VARIABLE HAZE OUTPUT - 0-100% haze output control from your DMX / RDM device. 100% duty cycle.
• APS™ (AUTOMATIC PURGING SYSTEM) - This system purges the heating module after the first heating cycle and after every emission of haze preventing residual build up and clogging.
• NUMEROUS CONTROL OPTIONS - 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.
• EXTREMELY QUIET OPERATION - Noise emission (at 1m/3.3ft): 45.4 dB in standard mode. The theater mode reduces the fan speed depending on haze output level.
• LOWEST FLUID CONSUMPTION ON THE MARKET - At 1.38 bar (20 psi) ATMe uses only 55 ml (1.86 oz) of fluid per hour to give a total running time of 46 hours from its 2.5 L (0.66 US gallon) reservoir.

Specifications:

• Fluid consumption:
  • 55 ml (1.86 oz) per hour at 1.38 bar (20 psi)
  • 110 ml (3.72 oz) per hour at 2.76 bar (40 psi)
• CO2 consumption:
  • 0.18 kg (0.4 lb) per hour at 1.38 bar (20 psi)
  • 0.36 kg (0.8 lb) per hour at 2.76 bar (40 psi)
• Reservoir capacity: 2.5 L (0.66 US gallon)
• APS™ (Automatic Purging System): Standard
• Haze colour: Pure white
• Particle size: 0.5 - 0.7 micron
• Total running time:
  • 46 hours at 1.38 bar (20 psi) with a full tank
  • 23 hours at 2.76 bar (40 psi) with a full tank
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
• Power consumption: 715 W
• Noise emission: 45.4 dB (A) at 1 m (3.3 ft)
• Dimensions:
  • Length: 68.5 cm (27”)
  • Width: 18 cm (7”)
  • Height: 30 cm (12”)
  • Weight: 16.8 kg (37 lb)
• Shipping weight: 30.5 kg (67 lb) with flight case
• Approval: CB, CSA and UL Certified. CE Declaration
