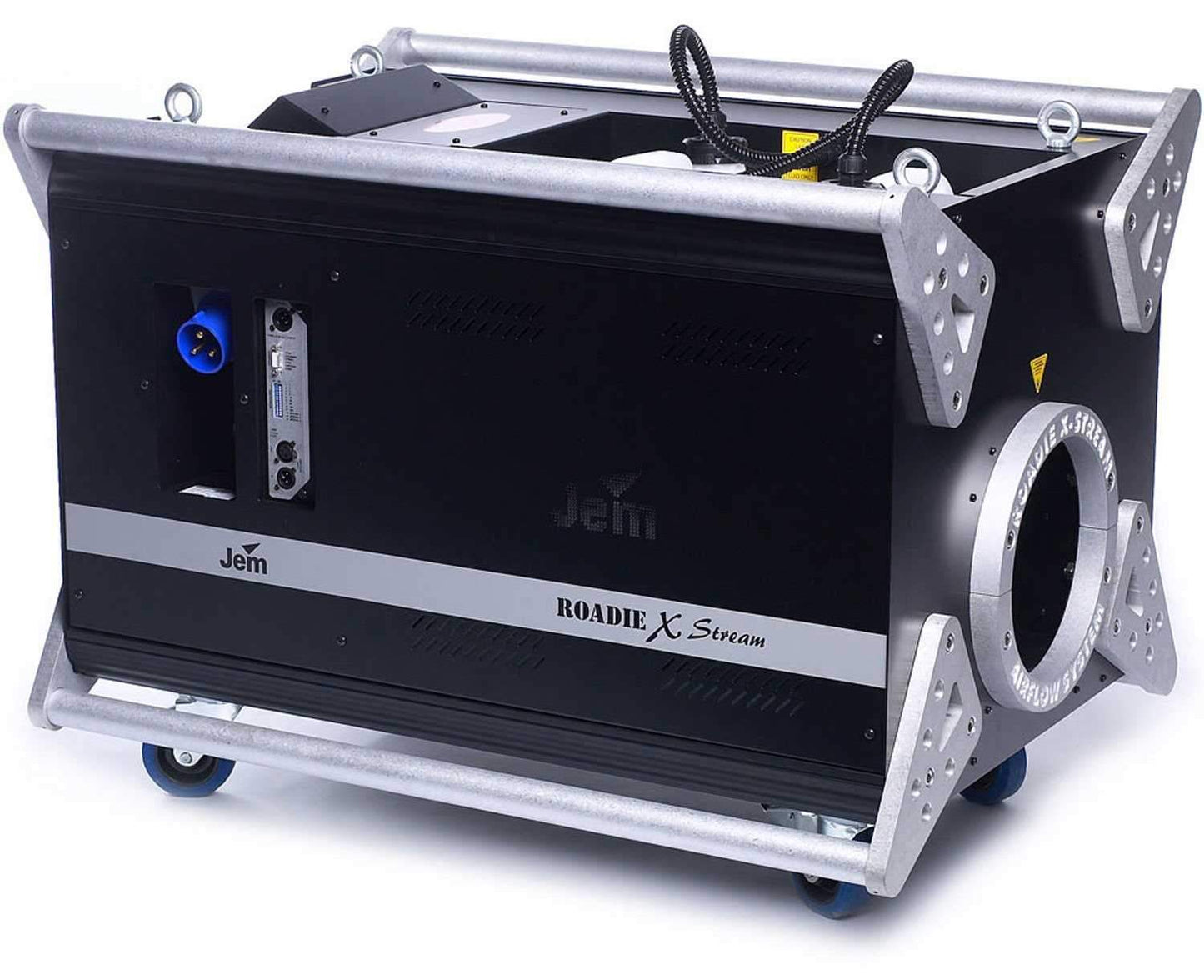

Martin JEM Roadie X-Stream DMX Dense Fog Machine
The Roadie X-Stream blends fog and air to produce a variety of effects; from an optically translucent haze to an immensely dense "white-out" of fog.
Features:- Onboard DMX
- On-board control panel
- Optional hand-held remote control
- For vertical or horizontal effect projection
- Output and density level control
- Continuous output
- 5000 m³/min fog output Integrated high velocity fan
- 2 x 2500 W heat exchanger
- 18 min heat-up time
- 2 x 9.5 liter fluid capacity
- Low fluid sensing
Performance
- Max. fog output (approx.): 5000 m3 per minute
- Max. operating time at full output (approx.): 108 minutes
- Operating time: Continuous, automatic level adjustment
- Warm-up time (approx.): 18 minutes
- Control options: Onboard control panel, DMX
- Compatible remote controls: For limited control
- DMX channels: 2 (output and fan)
- Protocol: USITT DMX512/1990
- Housing: Steel and aluminum
- Heat exchanger: 2 x 2500 W, direct thermal protection
- Fluid pump: Oscillating piston, high pressure X4
- Onboard fluid capacity: 2 x 9.5 l
- Fluid consumption at peak output: 500 ml per minute
- Orientation: Floor or flying kit
- Remote control: 3-pin locking XLR
- DMX data: 3-pin locking XLR
- Power cable entry: IEC-EN60309-2 Socket (Cee Type)
- AC power: 208 V 60 Hz / 220 - 240 V 50 Hz
- Main fuse (208-240 V power): Onboard 25 A Breaker
- Typical Power and Current
- 220 V, 50 Hz: 4327 W, 19.66 A
- 230 V, 50 Hz: 4729 W, 20.56 A
- 240 V, 50 Hz: 5150 W, 22.4 A
- Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
- Maximum ambient temperature (Ta max.): 40° C
- Exterior surface temperature, steady state: 50° C
- Max. nozzle temperature: 200° C
- Length: 1140 mm
- Width: 645 mm
- Height: 655 mm
- Dry weight: 167 kg
