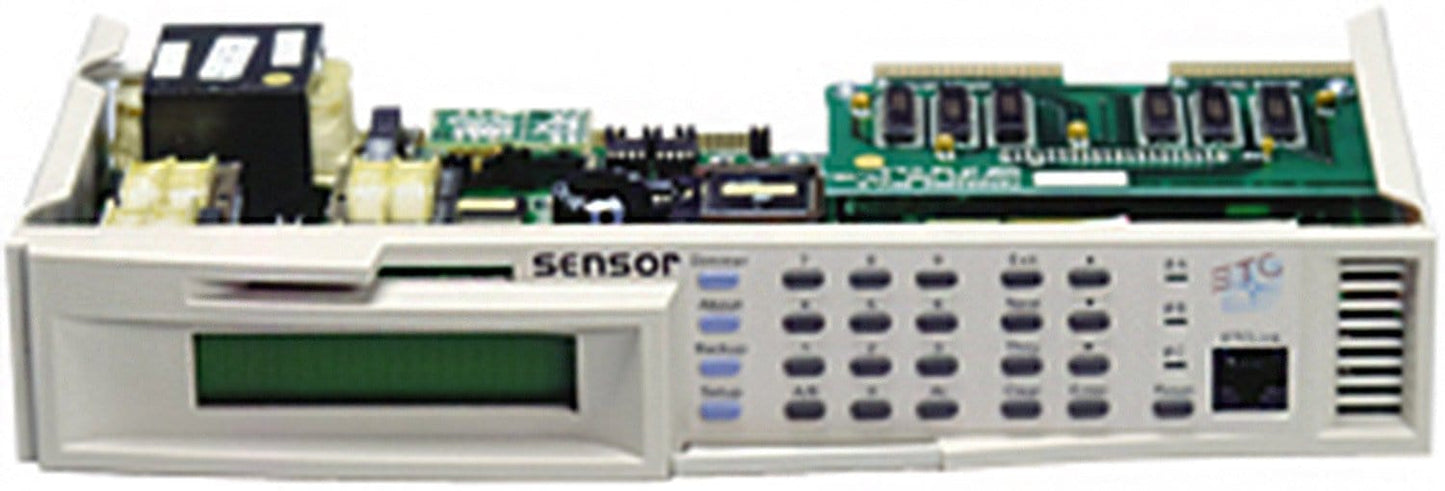

ETC CEM Electronic Modular Control
The Sensor® Control Electronics Module (CEM) receives and manages up to two DMX512 inputs, controls dimmer output, and communicates feedback information to compatible lighting control devices and other ETCLink peripherals.
Features:
- Rugged industrial construction
- Adaptable modular design
- ETCLink rack status feedback
- Advanced Features (AF) dimmer circuit load reporting support
- Advanced configuration editing
- 32 Backup Looks stored in rack memory
- Dual DMX512 connections
- ETC Dimmer Doubling™ support
- UL and cUL listed
Specifications:
- Available in 48- or 96-channel models
- 16 gauge steel chassis, finished with textured epoxy paint
- Slide-in modules can be installed and removed without tools
- UL and cUL listed
- Electrical:
- Accepts either three phase 120/208 VAC or single phase 120/240 VAC
- Voltage range 90-140 VAC
- Line feed frequencies from 47-63Hz
- Any phase operation
- Available in 48- or 96-channel models
- 16 gauge steel chassis, finished with textured epoxy paint
- Slide-in modules can be installed and removed without tools
- UL and cUL listed
- Electrical:
- Accepts either three phase 120/208 VAC or single phase 120/240 VAC
- Voltage range 90-140 VAC
- Line feed frequencies from 47-63Hz
- Any phase operation
