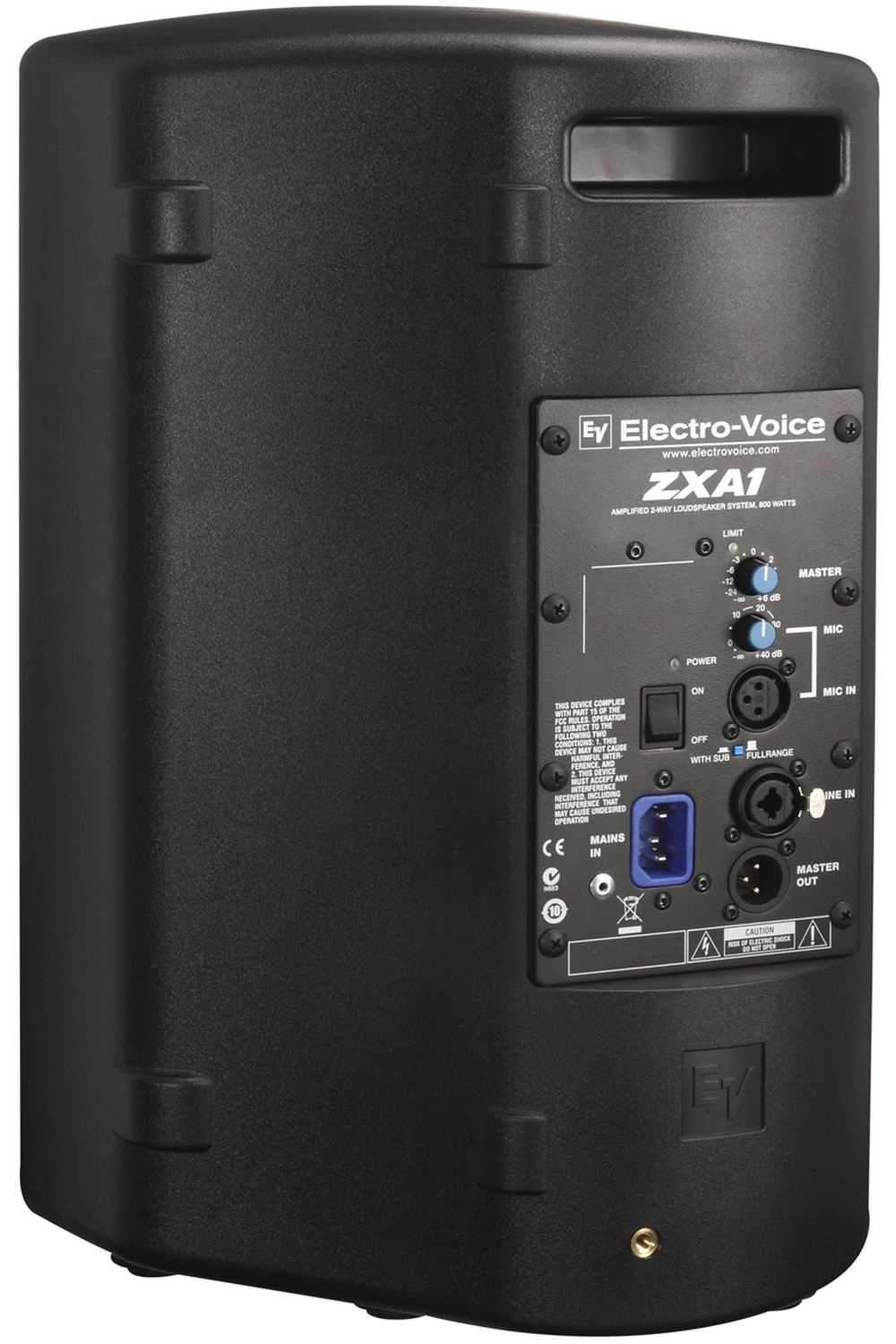

Electro-Voice ZXA1-90B 8-Inch Powered Speaker
The Electro-Voice ZxA1 is a compact, amplified loudspeaker system, which is designed for portable sound reinforcement applications that require maximum portability.
The ZxA1 utilizes the EV8L, a high output, low distortion, 203 mm (8 inch) woofer. The woofer is paired with the DH2005, a titanium diaphragm true compression driver. The compression driver is coupled to a rotatable 90 degrees x 50 degrees waveguide for smooth response to 20 kHz and excellent pattern control.
The ZxA1 loudspeaker is powered by an integrated 800W, 2 channel amplifier module. The amplifier has XLR microphone and line level inputs, as well as a XLR line level output for daisy chaining several amplified speakers or a subwoofer. The biamplified design features steep crossover slopes and woofer excursion protection for maximum output and reliability. A switchable high pass filter allows for use with a subwoofer.
The ZxA1 injection molded enclosure is made from high impact polystyrene for durability and lightweight. The handle pocket and pole mount make the ZxA1 ideal for many portable applications. The ZxA1 enclosure also features a built in monitor angle for floor monitor applications. The bottom of the ZxA1 features four #8-32 suspension points for permanent installation.
Features:- Integrated 800W Lightweight Power Amplifier
- Selectable 100 Hz High Pass Filter
- Biamplified Design with Steep Crossover
- Slopes and Transducer Protection
- EV8L 8" High-Output LF Transducer
- DH2005 1" Exit True Compression Driver
- 90 degrees x 50 degrees Coverage Pattern
- Rotatable Horn Design
- Integral Monitor Angle on Enclosure
- Line and Microphone Inputs
- 123 dB Maximum SPL
- Built-In Pole Mount
- Integral Handle Pocket for Easy Carrying
- Freq. Response1 (-3 dB): 60 Hz - 20 kHz
- Freq. Range1 (-10 dB): 48 Hz - 20 kHz
- Max. Calculated SPL: 123 dB
- Horizontal Coverage: 90 degrees or 50 degrees
- Vertical Coverage: 50 degrees or 90 degrees
- Amplifier Power Output: 800W
- LF Transducer: EV8L, 203mm (8 in) Driver
- HF Transducer: DH2005, 25mm (1 in) Exit Compression Driver
- Crossover Frequency: 1.8 kHz
- High Pass Frequency: 100 Hz, User Selectable
- Power Requirement (120V): 95V - 132V, 50 - 60 Hz, 0.6A
- Power Requirement (230V): 190V - 264V, 50 - 60 Hz, 0.4A
- Line Input: XLR and TRS Combo
- Mic Input: XLR with Independent Gain
- Line Output: XLR (Mic and Line Sum)
- Enclosure Material: High Impact Polystyrene
- Grille: Polyester Powder Coated, 18GA Galvanized Steel
- Dimensions (H x W x D): 457mm x 282mm x 264mm (17.98" x 11.12" x 10.38")
- Net Weight: 19.0 lbs (8.6 kg)
- Shipping Weight: 22.7 lbs (10.3 kg)
