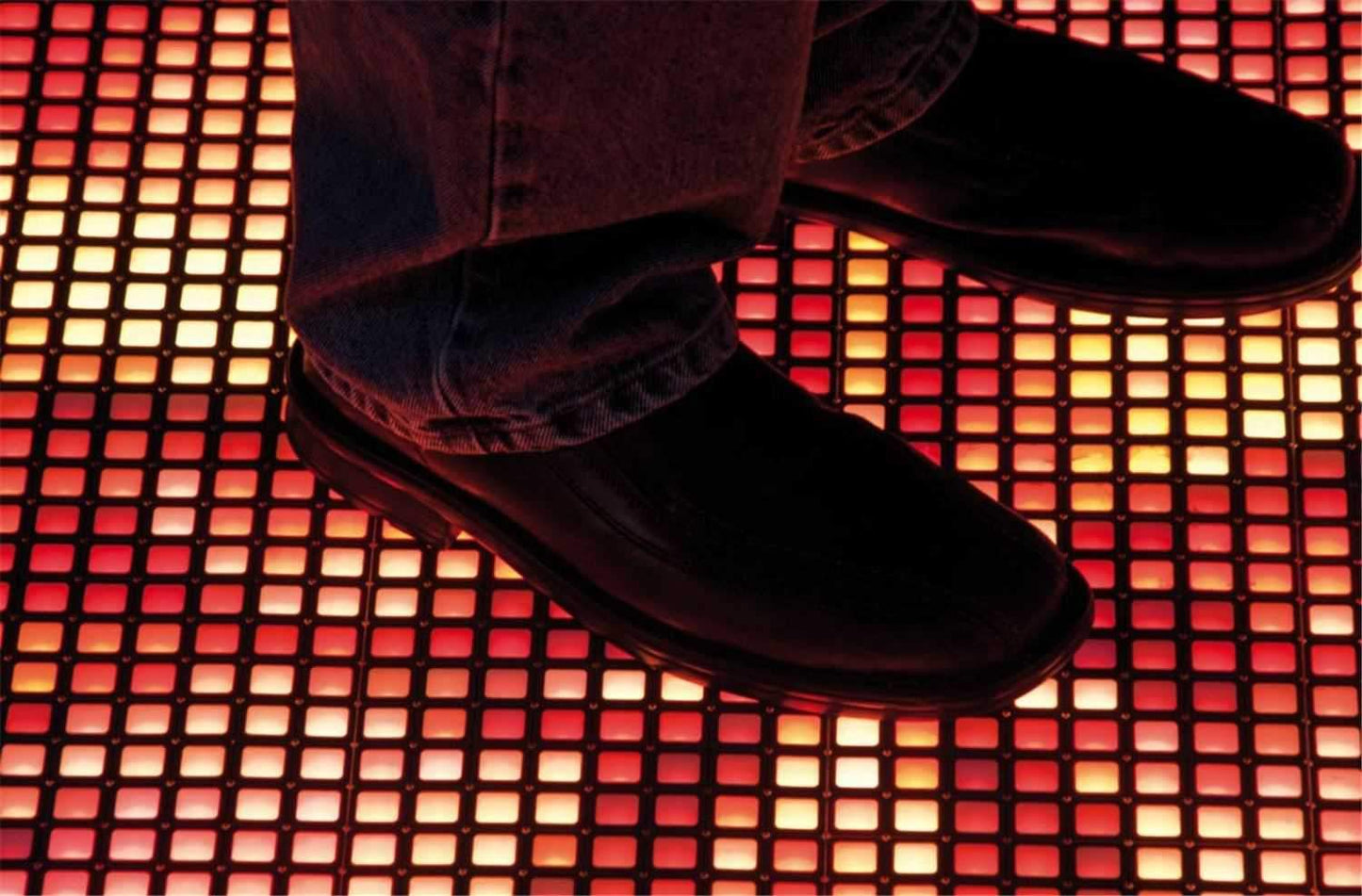

Elation EVLED1024SMDFX Flexible LED Video Panel

Elation EVLED1024SMDFX Flexible LED Video Panel

• 3-1 SMD Tri-Color LED Technology
• 20mm pixel pitch
• 1,100lbs per tile section weight bearing
• Video signal supplied via Ethernet from EVLED VSC
• Power / Data Linkable
• Panel Clip lock system
• Aluminum Alloy structure

• Transparency: 0%
• Curtain Composition: Al-alloy frame, rubber compound for weatherproof
• Tile Size: 25.2 X 25.2 X 4 in/ tile 640 X 640 X 103 mm/tile
• Tile Weight: 44 lbs/tile 20 kg/tile
• Tile Area: 0.4096m2 /tile
• Pixel Pitch: 20 mm
• Luminosity: 1500 nits
• Color Temperature: 6500 k
• Visual Angle: 110 / 110° (50% brightness)
• Visual Range: 160 / 160°
• Pixel Configuration: 1R 1G 1B (3-in-1 SMD)
• Tile Resolution: 32 x 32 pixels/tile
• Pixel Resolution: 2500 pixels/m2
• LED Quantity: 1024 per tile (3-in-1)
• Number of Colors: 14M
• Processing Depth: 14 bits
• Contrast Ratio: 1500:1
• Life Span: 100,000 hours LED
• Frame Rate: 60Hz
• Data Refresh Rate: 800Hz
• Display Mode: synchronous with video source
• LED Failure Rate: 1/10000
• MTBF: >10000 hours
• Drive Mode: Static, Constant Current Drive
• Power Supply: AC 100-240V, 50Hz or 60Hz
• Working Voltage: DC 5V
• Power Consumption: 750 w/m2 (max); 400 w/m2 (average)
• Ingress Protection: IP65
• Ambient Temperature: 20 to +50 Celsius degree
• Relative Humidity: 10% to 99%
• Maximum Weight Load: 1,100lbs / 500 kg
