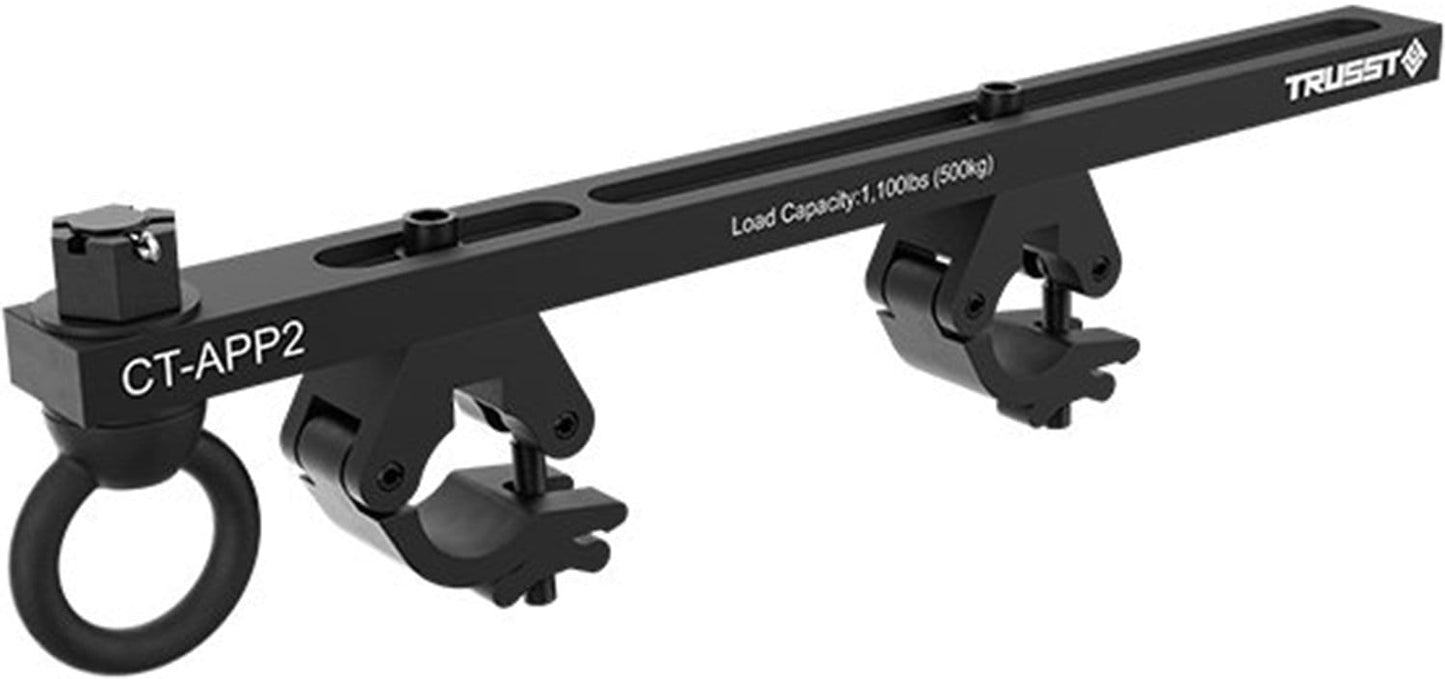

Chauvet CT-APP2 Video Wall Hanger Bar

CT-APP2 allows you to create a hang point on the upper chords of box truss to support video walls. The clamp mounting points are adjustable to work with box truss up to 20.5” wide. The Adjustable Panel Point for Video provides a safe and secure connection and supports weights of up to 500 kg.

Features:

• Mounts on top of a horizontal truss to create a hang point for video panels or other needs virtually anywhere on the truss length
• Adjusts to fit any size box truss with 2” (50mm) chords up to 20.5” x 20.5”
• Includes load rated 360-degree wrap around style coupler clamps made of heavy duty extruded aluminum that won’t scratch or damage truss
• Rated eye bolt, permanently attached, orients for easy rigging connections using shackles up to 5/8” in size
• Made of 6061 T-6 aluminum and graded steel hardware for strength and durability
• Built with versatility, safety and durability in mind
• Completely anodized in black

Specifications:

• Load capacity: 1,100 lb. (500 kg)
• Fits: 2 inch (50 mm) truss up to 20.5” x 20.5”
• Weight: 7.8 lb. (3.5 kg)
• Dimensions: 25.5 x 1.9 x 5.9 in (650 x 50 x 150 mm)
• Color: Black anodized
