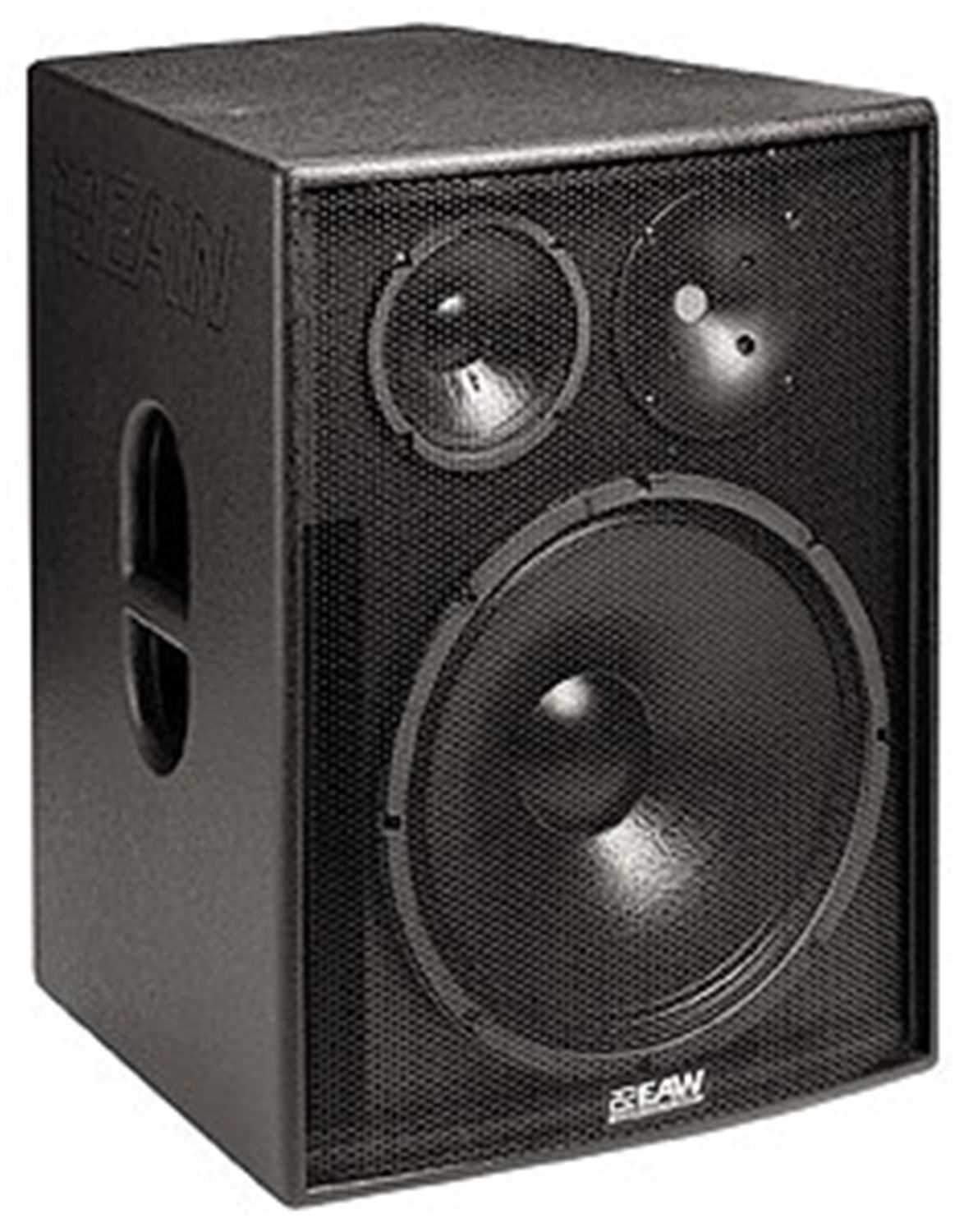

EAW FR153Z 15 IN 3 WAY SPEAKER
A 3-way passive full range system in a compact vented trapezoidal enclosure. It incorporates a 15 in woofer, a 6.5 in midrange cone in a sealed subenclosure, and a 1 in exit/2 in voice coil compression driver mounted to a 100? conical Wave Guide Plate?. It comes with handles, rubber foot-pads, a pole mount cup, and three 3/8-16 mounting points. An internal passive crossover network uses complex asymmetrical filters to divide the signal and performs critical equalization functions.
The true 3-way design requires each transducer to operate only in its optimum passband for superior overall response. A dedicated midrange subsystem handles the majority of the vocal range, resulting in increased intelligibility and more natural sounding vocals.
Features:- 60 Hz - 18 kHz frequency response at ?3 db
- 500 watts at 8 ohms continuous
- 2 Neutrik NL4 Speakon connectors
- 3 3/8-16 mounting/suspension points
- Size: 22.25" x 19.75" x 19.75"
- Weight: 75 lbs
