DiGiCo DMIWAVES Waves Interface Card for Digico

DiGiCo DMIWAVES Waves Interface Card for Digico

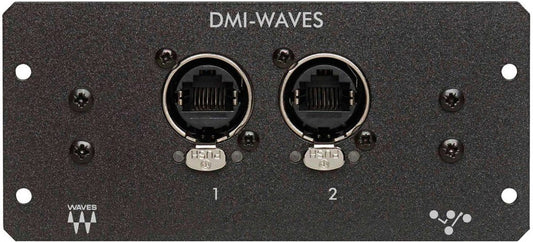

This card will provide 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Ethercon ports. DMI-WAVES Waves SoundGrid network is a flexible protocol that allows audio to be passed over ethernet. This card provides 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Ethercon connections. The card features two network ports connected via an inbuilt network switch, meaning that a network switch is not necessary for smaller setups. Connecting to the SoundGrid network gives benefits such as being able to send audio to and from a DAW, running Waves plugins in real-time and being able to send audio to and from any DiGiGrid products. On the SD12, a DMI-WAVES card can be used as a substitution for an inbuilt waves port. Alternatively, it could be used for virtual soundcheck from an external DAW. On S-Series consoles, this card allows easy integration of Waves plugins. One port on the card can be connected to a computer running Waves MultiRack, and the other can be connected to a Waves server. The DMI-WAVES can also be used in the Orange Box to run a virtual soundcheck on an Optocore loop.

Features:

• 64 inputs and 64 outputs at 48kHz and 96kHz
• Two network ports connected via an inbuilt switch
• Ethercon connections
• Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4

Specifications:

• CONNECTIONS: 2 x EtherCON ports
• SIGNAL PROCESSING: 64 Inputs and 64 Outputs at 48kHz and 96kHz
• OPTIONS: Compatible With: S-Series / SD12 / Quantum Range / Orange Box / 4REA4
• PHYSICAL:
  • Dimensions: 126.4mm (w) x 176.3mm (d) x 58mm (h)
  • Weight: 236g
  • Product Code: MOD-DMI-WAVES
• AUDIO SPECIFICATIONS: Sample Rate: 48kHz or 96kHz
