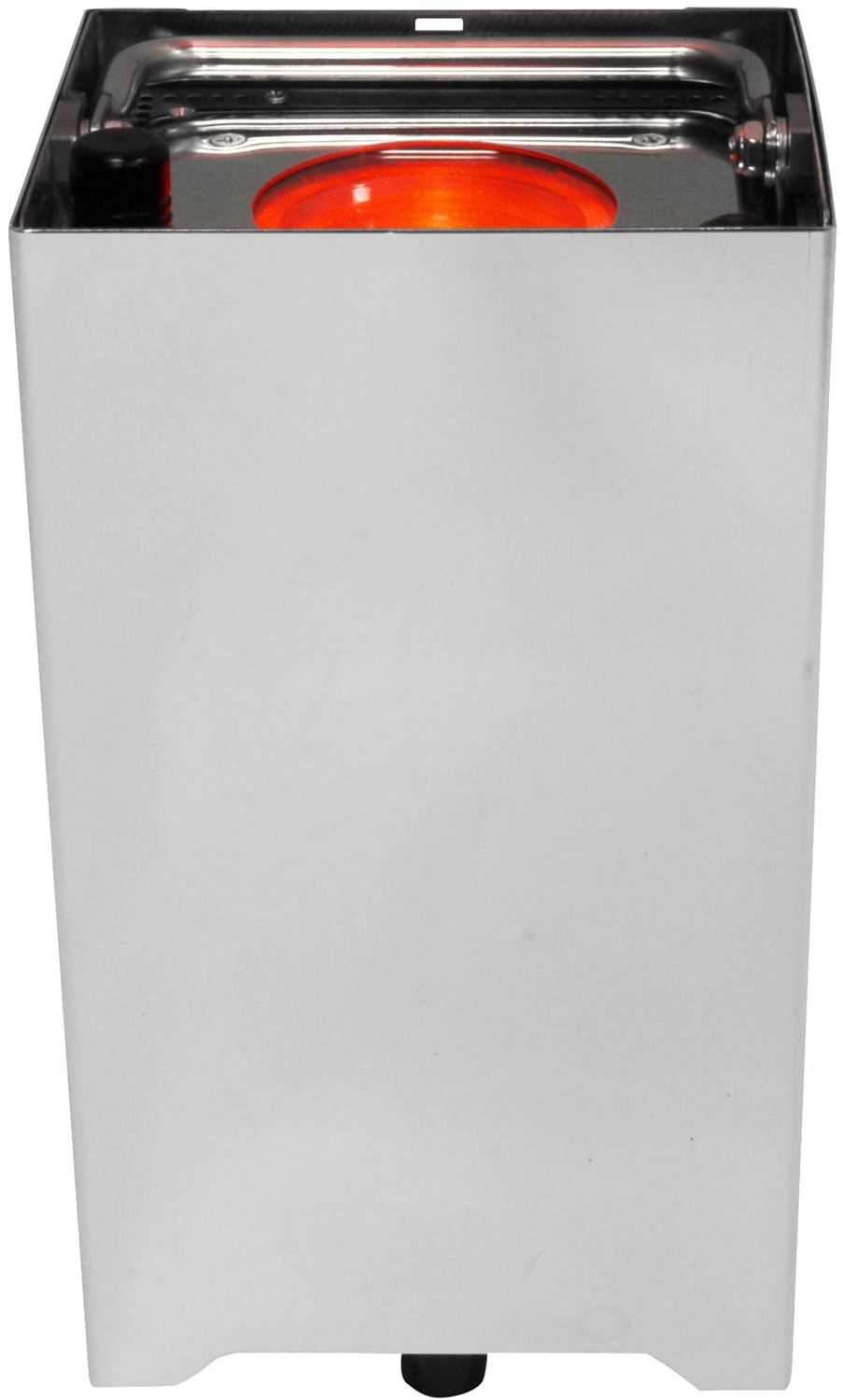

Chauvet WELL Quad-M Battery Powered Wash Uplight
WELL Quad-M is a small, lightweight, lithium-ion battery-powered wash uplighter that creates stunning color cross fades and is controlled by Wireless WDMX, Wired DMX, or IR controller. With its single 40-watt RGBA LED, it's perfect for uplighting scrims, spandex, or columns in banquet rooms during weddings or corporate events.
Features:- 3, 4, 5, 6, 10 or 15 DMX channels
- 16-bit dimming of individual colors as well as master dimmer
- Lithium ion battery
- IR remote controllable (remote included)
- 10-hour battery life at full output
- 10-hour charge time from 0 to 100%
- Reflective mirror finish, blends with surroundings
- Easy-to-use charger included
- DMX Channels: 3, 4, 5, 6, 10 or 15
- Data Connectors: 3- and 5-pin XLR
- Light Source: 1 LED (quad-color RGBA) 40 W, (650 mA), 50,000 hours life expectancy
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 20Hz
- Stand Alone Color Mixing: Yes
- Color Temperature Presets: Yes
- Beam Angle (with color blend filter): 15°
- Beam Angle (without color blend filter): 9°
- Field Angle (with color blend filter): 28°
- Field Angle (without color blend filter): 22.5°
- Frequency (operating): 2.4 GHz
- Dimming Modes: 8
- Illuminance (with color blend filter): 246 lux @ 5 m,
- Illuminance (without color blend filter): 504 lux @ 5 m
- Color Temperature (range): 2,800 to 10,000 K
- IP Rating: IP44, temporary outdoor use
- Cable Length (single unit): 5 ft (1.5 m)
- Cable Length (charging case): 5 ft (1.5 m)
- Power Connection (single unit): Edison plug to IEC
- Power Connection (charging case): Edison plug to powerCON
- Power Input (single unit): IEC
- Power Input (charging case): powerCON
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current (single unit charging ): 79 W, 0.65 A @ 120 V, 60 Hz
- Power and Current (charging case charging ): 474 W, 3.9 A @ 120 V, 60 Hz
- Power and Current (single unit charging ): 83 W, 0.39 A @ 208 V, 60 Hz
- Power and Current (charging case charging ): 498 W, 2.34 A @ 208 V, 60 Hz
- Power and Current (single unit charging ): 84 W, 0.36 A @ 230 V, 50 Hz
- Power and Current (charging case charging ): 504 W, 2.16 A @ 230 V, 50 Hz
- Battery Charge Time: 10 hours
- Battery Life (full output): 10 hours
- Battery Power: 22.2 VDC, 8.8 Ah
- Weight (single unit): 12.2 lb (5.53 kg)
- Weight (charging case): 143.3 lb (65 kg)
- Dimensions (single unit): 6.06 x 6.06 x 11.32 in (154 x 154 x 287.6 mm)
- Dimensions (charging case): 27 x 16 x 23 in (686 x 407 x 584 mm)
- Approvals: CE
