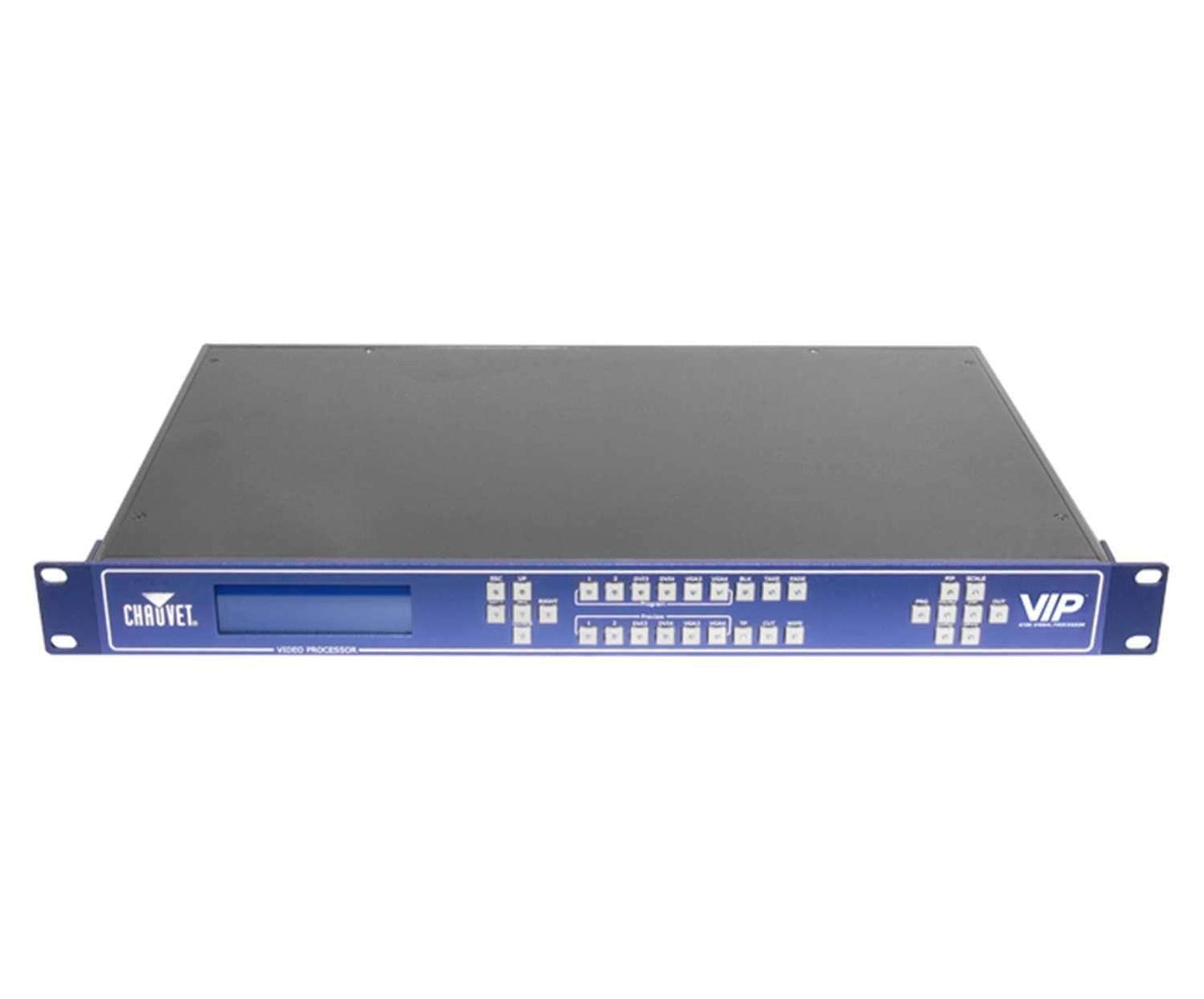

Chauvet VIP 5162 Rackmount Signal Processor
VIP 5162 Signal Processor is a rack-mountable switcher for multiple input sources. It includes functions that manipulate video images, such as scaling, positioning, brightness, contrast, color correction, and picture-in-picture. Transition swipes, fades and cuts are easily accessed for a seamless flow among input sources. Control is achieved through included software or touch buttons. VIP 5162 includes an industry standard STI input. For live applications, there is a separate DVI output for a preview monitor.
Features:- Required for video wall input signals, other than DVI or HDMI
- The signal processor is required for alternate video input signal, other than DVI or HDMI
- This signal processor is capable of independent horizontal and vertical scaling of the video source
- Control the brightness and X/Y positioning of the video
- 14 video input sources: CV(3), CV/SDI(1), USB(2), DVI(4), VGA(4)
- 3 video outputs: DVI(2), VGA(1)
- Up to 6 user-configurable inputs are selectable to be used with a dedicated preview monitor (simultaneously)
- A dedicated playback monitor with seamless switching and video transitions (wipe, cut, instant, blackout) make this perfect for live video switching
- Calendar time schedule available through internal time clock
- Play video content directly from the USB input using a flash drive, without a media server
- Picture-in-picture, brightness, contrast, color calibration, and cropping are available
- Control the unit via the PC software (USB, RS232, LAN) or front-surface controls
- 2 user presets are available
- Output up to 1920x1080 resolution (NTSC/PAL)
