Description

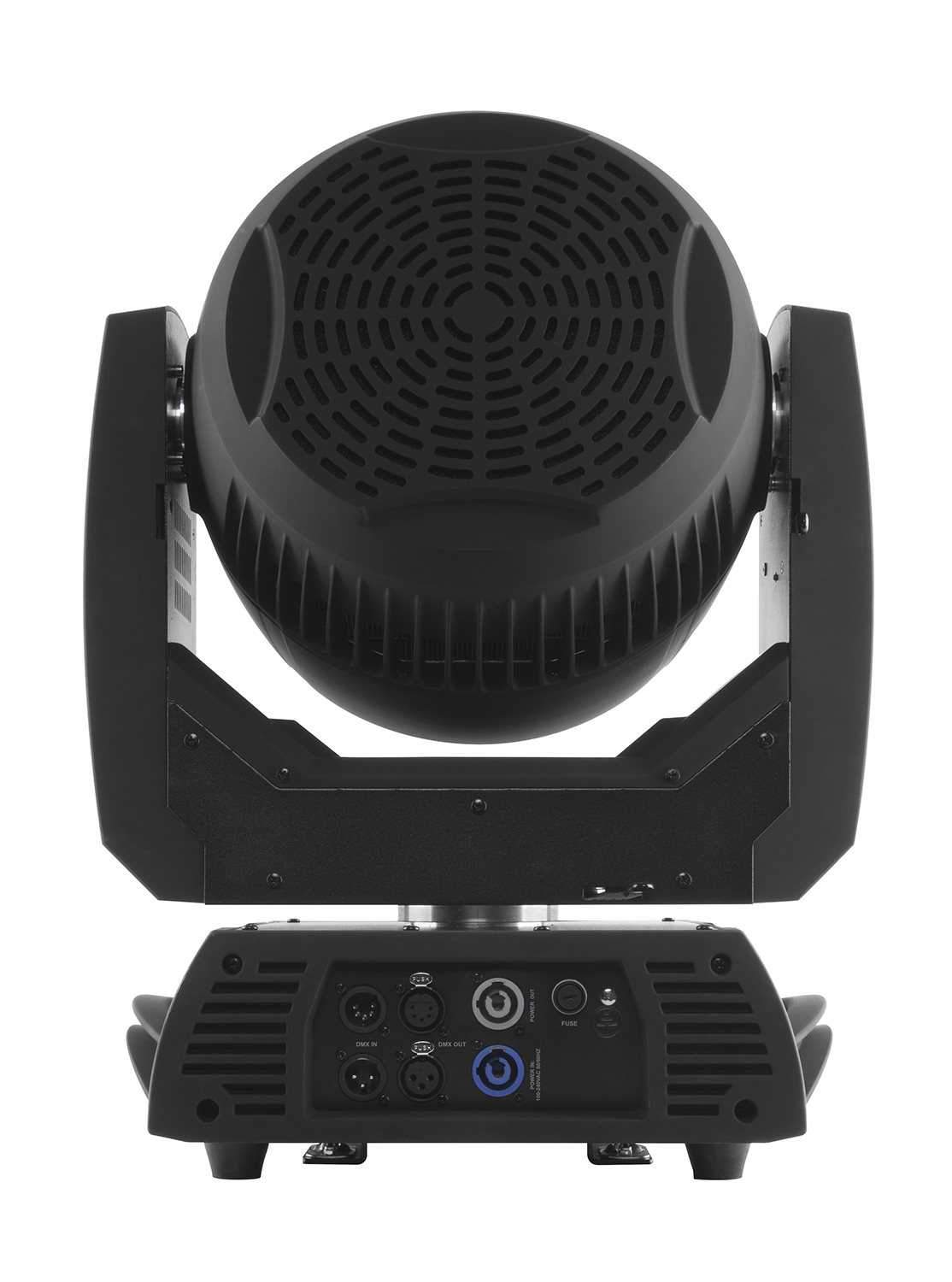

Chauvet Rogue R3 Wash 37 x 15-Watt LED Moving Head

Rogue R3 Wash is an ideal moving wash workhorse for rental and production inventories. Durable and dependable, it outputs a bright, evenly dispersed light and offers nine zones of LED control to pixel map its 37 x 15-Watt RGBW quad-LEDs. A quick moving zoom range of 12° – 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles, and powerCON in and out round out the excellent features of this outstanding moving wash.

Features:
  • Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
  • 37 RGBW LEDs, 15-Watt each
  • 9 zones of LED control for pixel mapping effects
  • Unique lens design offers excellent color mixing
  • 6 distinct dimming modes for different dimming needs
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
  • RDM (Remote Device Management) for added programming flexibility
Specifications:
  • Light source: 37 x 15-watt quad-color RGBW LEDs, (1 A), 50,000 hours life expectancy
  • Color temperature (range): 2,800 to 10,000 K
  • Beam angle: 8° to 30°
  • Field angle: 12° to 49°
  • Zoom angle: 12° to 49°
  • Illuminance (12°): 21,000 lux @ 5 m
  • Illuminance (49°): 1,902 lux @ 5 m
  • PWM frequency: 2,400 Hz
  • Pan and tilt: 540°/230°
  • Pan and tilt ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: electronic
  • Shutter/strobe: electronic
  • Zoom: motorized
  • Strobe rate: 0 to 20 Hz
  • Standalone color mixing: yes
  • Color temperature presets: yes
  • Dim curves: 4
  • Built-in automated programs: yes
  • Customizable programs: no
  • Recall custom programs: no
  • Power connection: Edison (local) plug to Neutrik powerCON
  • Power input: Neutrik powerCON
  • Power output: Neutrik powerCON
  • Data connectors: 3- and 5-pin XLR
  • Cable length (power): 5" / 1.5m
  • Control protocol: DMX, RDM
  • DMX channels: 21, 58, 99
  • Modes/personalities: 3 personalities
  • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V
  • Power and current: 660 W, 6.21 A @ 120 V, 60 Hz
  • Power and current: 689 W, 3.40 A @ 208 V, 60 Hz
  • Power and current: 704 W, 3.10 A @ 230 V, 50 Hz
  • CE, MET
  • IP rating: IP20, dry location
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • Exterior color: black
  • Housing material: high-impact flame-retardant polymer
  • Includes: Rogue R3 Wash, Neutrik powerCON power cord, omega bracket with mounting hardware
  • Fits: professional clamps: CTC-50HC, CTC-50HCN; safety cable: SC-07; Neutrik powerCON cables; DMX cables
  • Dimensions: 15.51" x 11.73" x 18.50" / 394mm x 298mm x 470mm
  • Weight: 38.5 lb / 17.46 kg
