Description

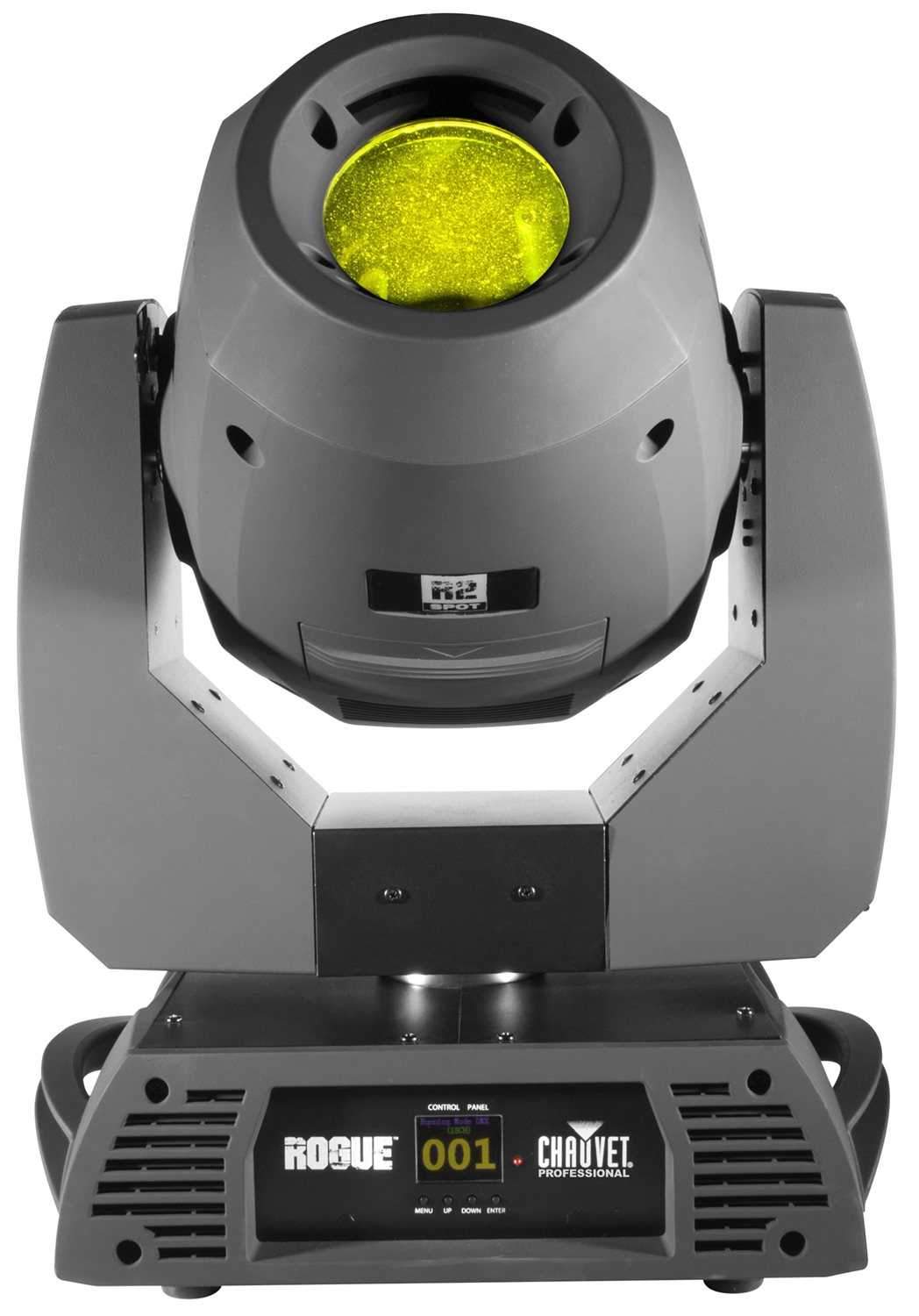

Chauvet Professional Rogue R2 Spot 240-Watt Moving Head LED Spot Light

Rogue R2 Spot is a class leader in LED automated spots, combining incredible value with professional quality engineering. Rogue R2 Spot features a powerful 240 W LED light engine to drive a bright, crisp spot that is designed to impress. Rogue R2 Spot features seamless fading between the two gobo wheels for excellence in your designs. Not to be outdone, Rogue R2 Spot features two continuously and variably scrolling color wheels, allowing you also to have a large series of split colors at your fingertips. Rogue R2 Spot's 16.5-degree beam angle comes with motorized iris, frost, and a 3-facet prism for creative beam shaping. Rogue R2 Spot also features industry-standard Neutrik powerCON power input/output connections for power linking, and 3-pin and 5-pin DMX data connections for ease of use at load in.

Features:
  • Intense 240 W LED light engine for punchy, bold beams
  • Unique game-changing Gobo Morphing between gobo wheels
  • Two color wheels with 7 colors, split color ability, and continuous variable speed scrolling
  • Two gobo wheels, rotating, interchangeable, indexing, continuously and variably scrollable
  • Iris, 3-facet prism, and frost for beam control
  • Beautiful 16-bit LED dimming for ultimate fade control
  • Neutrik powerCON power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
Specifications:
  • DMX Channels: 18 or 21
  • Data Connectors: 3- and 5-pin XLR
  • Light Source: 1 LED (CW) 240 W, (7 A), 8250 K, 50,000 hours life expectancy
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
  • Automatic Pan/Tilt Correction: Yes
  • Colors (1): 7 + white, split colors, continuous scroll at variable speeds
  • Colors (2): 7 + white, split colors, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
  • Prism: 3 Facets, motorized, rotating
  • Dimmer: Electronic
  • Focus: Motorized
  • Iris: Motorized
  • Frost: Motorized
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 22 Hz
  • Beam Angle: 16.5°
  • Illuminance (total): 5,500 lux @ 5 m
  • Color Temperature (at full): 8500 K
  • IP Rating: IP20, dry location
  • Cable Length: 5 ft (1.5 m)
  • Power Connection: Edison plug to Neutrik powerCON
  • Power Input: Neutrik powerCON
  • Power Output: Neutrik powerCON
  • Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 310 W, 2.6 A @ 120 V, 60 Hz
  • Power and Current: 304 W, 1.5 A @ 208 V, 60 Hz
  • Power and Current: 301 W, 1.4 A @ 230 V, 50 Hz
  • Weight (single unit): 46.6 lb (21.2 kg)
  • Weight (road case): 196 lb (89 kg)
  • Dimensions (single unit): 16.1 x 13.5 x 19.25 in (409 x 343 x 489 mm)
  • Dimensions (road case): 42.1 x 19.3 x 33.5 in (1,070 x 490 x 850 mm)
  • Approvals: CE, MET
