Description

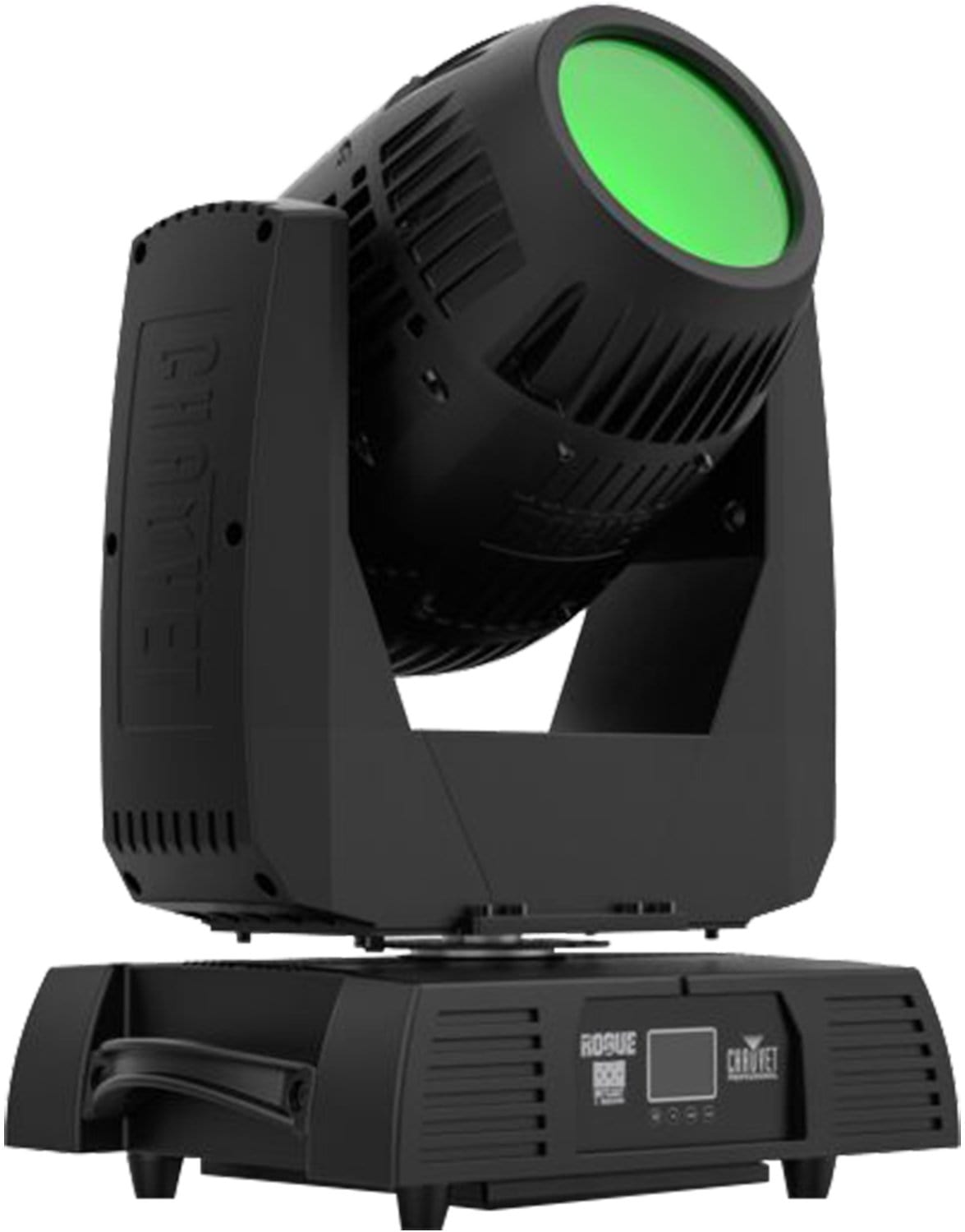

Chauvet Rogue Outcast 1 Beam Moving Head Light

Rogue Outcast 1 Beam is an IP65 moving head that outputs an intensely bright 300 W beam with 14 position color wheel individually controllable for solid and split hues. The outdoor-ready unit raises the bar in dynamic effect options with its ability to focus down to a pencil-thin 1° beam for tight aerials, overlapping 8 and 5-facet prisms, frost for even light distribution, and 17 static gobos for even more creative options. Control is over DMX and RDM.

Features:

  • Fully featured, IP 65 rated, high-powered beam fixture with an USHIO 300 W 6500 K, 8,000 hour lamp, a single color wheel, single static gobo wheel, and overlapping prisms
  • Rugged housing designed to withstand the elements in a temporary outdoor setting
  • Fast and precise movement of pan and tilt functions
  • Individually controllable and layerable 8 and 5-facet prisms
  • 14 position color wheel for solid and split colors
  • Frost for even light distribution
  • Tight 1° beam for extremely focused areal effects
  • 17 static gobos for massive visual impact
  • DMX and RDM protocol control
  • True 1 compatible power input

Specifications:

  • Optical
    • Light Source: USHIO NSL-300W lamp, 8000 K, 8,000 hours life expectancy
    • Color Temperature (at full): 7115 K
    • CRI: 73.9
    • Beam Angle: 1.2°
    • Field Angle: 2.1°
    • Illuminance (total): 154,000 lux @ 15 m
  • Dynamic Effects
    • Pan and Tilt: 540°/270°
    • Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
    • Colors: 14 + white, split colors, continuous scroll at variable speeds
    • Gobos: 17 + open (17 metal), continuous scroll at variable speeds
    • Dimmer: Motorized
    • Shutter/Strobe: Motorized
    • Focus: Motorized
    • Frost: Motorized
    • Prism: 5 Facets, motorized, rotating
    • Prism: 8 Facets, motorized, rotating
    • Move-in-Black: Yes
  • Construction / Physical
    • Dimensions: 16.23 x 12.2 x 23.19 in (412.2 x 310 x 589.1 mm)
    • Weight: 70.2 lb (32 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast
  • Connections
    • Power Connection: Edison plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65
    • Power Input: Seetronic Powerkon IP65
    • Data Connectors: 5-pin IP rated
    • Cable Length (power): 5 ft (1.5 m)
  • Control
    • Control Protocol: DMX, RDM
    • DMX Channels: 16 or 19
    • Modes/Personalities: 2 personalities (16, 19)
  • Electrical
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power and Current: 451 W, 3.81 A @ 120 V, 60 Hz
    • Power and Current: 436 W, 2.09 A @ 208 V, 60 Hz
    • Power and Current: 408 W, 1.76 A @ 230 V, 50 Hz
  • Certifications / Qualifications
    • CE, MET
    • IP Rating: IP65, temporary outdoor/wet use
    • Temperature (Ambient): 14 °F to 104 °F (-10 °C to 40 °C)
  • What's Included
    • Rogue Outcast 1 Beam
    • Seetronic Powerkon IP65 power cord
    • 2 Omega brackets with mounting hardware
    • Quick Reference Guide
  • Optional Accessories
    • Professional Clamps : CTC-50HC, CTC-50HCN
    • Safety Cable: SC-07
    • DMX Cables
    • IP Rated Seetronic® Powerkon Extensions
