Chauvet Ovation E-260WWIP 19-Degree IP65 LED Ellipsoidal Light Alternatives

Chauvet Ovation E-260WWIP 19-Degree IP65 LED Ellipsoidal Light

More Chauvet Professional products

Write a review Q&A SKU: OVATION-E-260WWIP19 Solotech ID#: 55280
1 of 5
Unfortunately the Chauvet Ovation E-260WWIP 19-Degree IP65 LED Ellipsoidal Light is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

View full details
Unfortunately the Chauvet Ovation E-260WWIP 19-Degree IP65 LED Ellipsoidal Light is no longer available. This page is here for reference. Check out the great alternatives on this page, or contact us to speak with one of our sales advisors about similar products.

Need help? Contact our product specialists.

Description

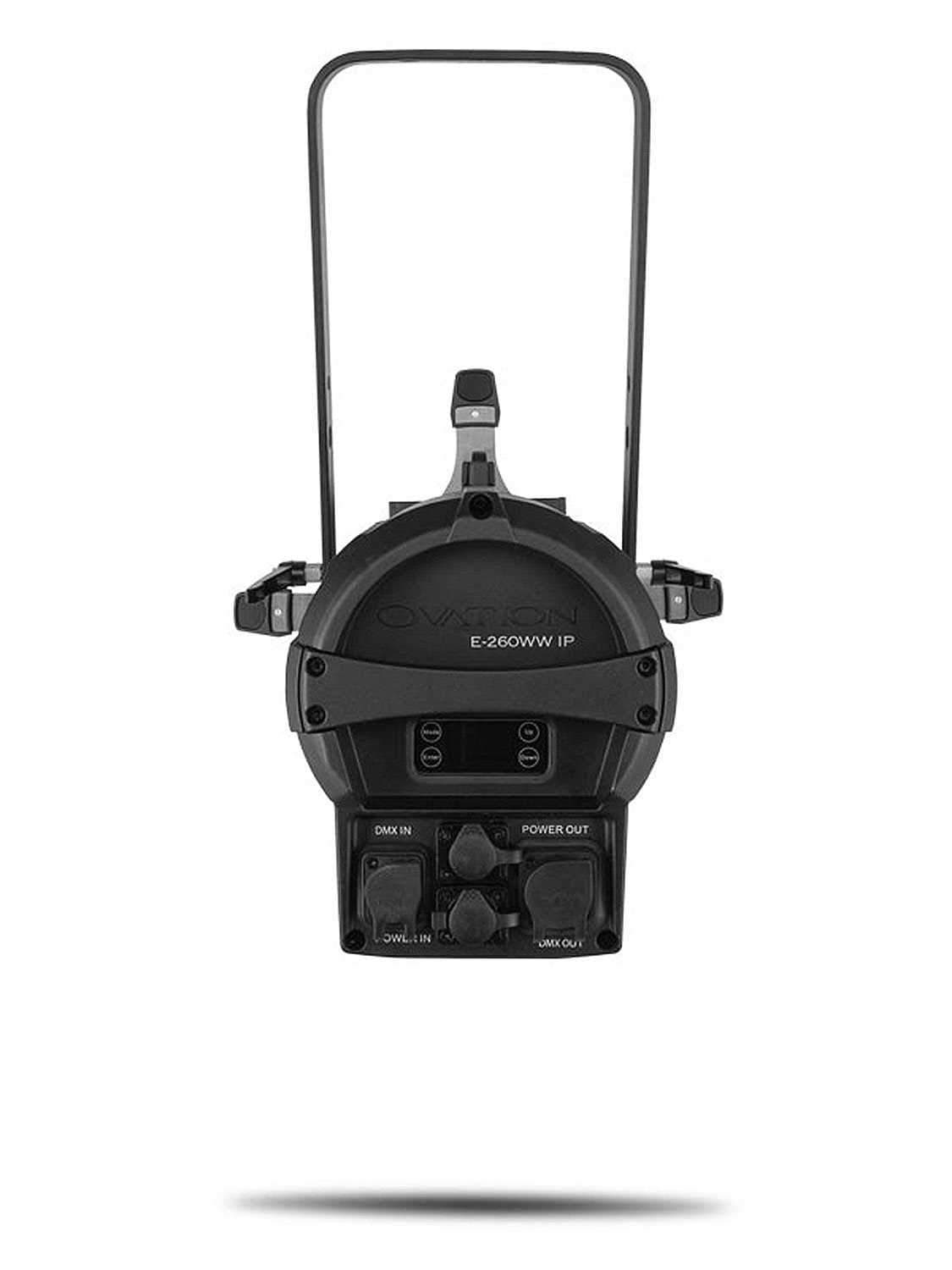

Chauvet Ovation E-260WWIP 19-Degree IP65 LED Ellipsoidal Light

Ovation E-260WW IP takes the brilliant breakthrough concept of the Ovation E-260WW and places it outdoors. Chauvet's standard shutter assembly and lenses lend familiarity and ease-of-use to this groundbreaking IP65-rated ERS-style fixture with an output surpassing that of 750W HPL. This ellipsoidal also boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Selectable PWM, RDM, and onboard dimming curves ease setup and programming.

Features:

  • Warm white ERS-style fixture with output exceeding a tungsten 750W source
  • Fully IP 65 rated for seasonal use indoors or out
  • Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme.
  • Flat, even field of light for superior gobo projection
  • RDM (remote device management) for added flexibility
  • Adjustable PWM (pulse width modulation) to avoid flickering on camera

Specifications:

  • Optical:
    • Light source: 1 LED (WW) 202W, (3.6 A), 3149 K, 50,000 hours life expectancy
    • Color temperature (at full): 3149 K
    • CRI: 91
    • Beam angle (with 19° lens): 13°
    • Field angle (with 19° lens): 18°
    • Dimming modes: 4
    • Lumens (with 19° lens): 7,587
    • Illuminance (with 19° lens): 9,256 lux @ 5 m
    • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
  • Dynamic effects:
    • Dimmer: electronic
    • Shutter/strobe: electronic
    • Strobe rate: 0 to 30 Hz
    • Color temperature presets: No
    • Dim modes: 4
    • Built-in automated programs: yes
  • Construction:
    • Dimensions: 19.49" x 11.14" x 18.42" / 495 mm x 342 mm x 506 mm
    • Dimensions: (with lens): 32.87" x 14.61" x 14.61" / 835 mm x 371 mm x 371 mm
    • Weight: 20.2 / 9.2 kg
    • Weight (with lens): 34.2 lbs. / 15.5kg
    • Exterior color: black
    • Gobo size (optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
    • Gobo size (optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
    • Accessory holder/gel frame size: (19°, 26°, 36°, and 50° lens): 6.25" (159 mm)
  • Connections:
    • Power connection: edison (local) plug to seetronic powerkon IP 65
    • Power input: seetronic powerkon IP 65
    • Power output: seetronic powerkon IP 65
    • Data connectors: 5-pin XLR
    • Cable length (power): 5' (1.5 m)
  • Control:
    • Control protocol: DMX
    • DMX channels: 1, 2, 3 or 6
    • Modes/personalities: 4 personalities (1, 2, 3, 6)
  • Electrical:
    • Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
    • Power and current: 221W, 1.85A @ 120 V, 60 Hz
    • Power and current: 215W, 1.11 A @ 208 V, 60 Hz
    • Power and current: 213W, 1.01 A @ 230 V, 50 Hz
  • Included:
    • Ovation E-260WW IP
    • Seetronic powerkon IP 65
  • Required accessories:
    • Lens tube: 19°, 26°, 36°, 50°
