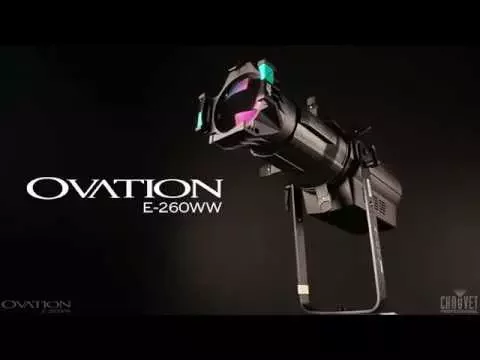

Chauvet Ovation E-260WW 50-Degree LED Ellipsoidal Light

Chauvet Ovation E-260WW 50-Degree LED Ellipsoidal

Ovation E-260WW50 is powered by a single source LED that exceeds the output of a 750W tungsten light source. This warm or cool white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.

• Warm or cool white ERS style fixture with output exceeding a tungsten 750W source
• Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
• Flat, even field of light for superior gobo projection
• RDM (remote device management) for added flexibility
• Adjustable PWM (pulse width modulation) to avoid flickering on camera
• Virtually silent operation for use in studio and theatre applications
• Works perfectly with industry standard lens tubes and accessories

Specifications:

• Light Source: 1 LED (WW) 202 W, (3.6 A), 3149 K, 50,000 hours life expectancy; (CW) 198W, (3.5 A), 5452 K, 50,000 hours life expectancy
• Color temperature (at full): (WW) 3149 K; (CW) 5452 K
• CRI: (WW) 91; (CW) 90
• Beam angle (14° lens): 11°
• Beam angle (19° lens): 13°
• Beam angle (26° lens): 16°
• Beam angle (36° lens): 20°
• Beam angle (50° lens): 28°
• Beam angle (15°–30° lens) Narrow: 12°
• Beam angle (15°–30° lens) Wide: 14°
• Beam angle (25°–50° lens) Narrow: 21°
• Beam angle (25°–50° lens) Wide: 22°
• Field angle (14° lens): 14°
• Field angle (19° lens): 18°
• Field angle (26° lens): 25°
• Field angle (36° lens): 34°
• Field angle (50° lens): 50°
• Field angle (15°–30° lens) Narrow: 15°
• Field angle (15°–30° lens) Wide: 29°
• Field angle (25°–50° lens) Narrow: 26°
• Field angle (25°–50° lens) Wide: 46°
• Dimming modes: 4 Lumens (19° lens): 7,587
• Lumens (26° lens): 10,284
• Lumens (36° lens): 10,121
• Lumens (50° lens): 9,655I
• Illuminance (14° lens): (WW) 13,439 lux @ 5 m; (CW) 16,787lux @ 5 m
• Illuminance (19° lens): (WW) 9,256 lux @ 5 m; (CW)10,674 lux @ 5 m
• Illuminance (26° lens): (WW) 6,910 lux @ 5 m; (CW) 8652 lux @ 5 m
• Illuminance (36° lens): (WW)4,053 lux @ 5 m; (CW) 5185 lux @ 5 m
• Illuminance (50° lens): (WW)1,703 lux @ 5 m; (CW) 2181 lux @ 5 m
• Illuminance (15°–30° lens)(Narrow): (WW) 12,430 lux @ 5 m ; (CW) 17,494 lux @ 5 m
• Illuminance (15°–30° lens)(Wide): (WW) 5,339 lux @ 5 m; (CW) 6019 lux @ 5 m
• Illuminance (25°–50° lens)(Narrow): (WW) 4,997 lux @ 5 m; (CW) 6144 lux @ 5 m
• Illuminance (25°–50° lens)(Wide): (WW) 3,295 lux @ 5 m; (CW) 3169 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Manual Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
• Dim modes: 4 built-in automated programs: Yes
• Color temperature presets: (CW) No

• Dimensions (fixture only): 19.49 x 11.22 x 19.17" (495 x 285 x 487 mm)
• Dimensions (14° lens extended): 28.74 x 11.22 x 19.17" (730 x 285 x 487 mm)
• Dimensions (26° lens extended): 25.91 x 11.22 x 19.17" (658 x 285 x 487 mm)
• Dimensions (15°–30° lens): 32.87 x 14.61 x 14.61" (835 x 371 x 371 mm)
• Dimensions (25°–50° lens): 27.17 x 14.61 x 14.61" (690 x 371 x 371 mm)
• Weight (fixture only): 15.4 lbs. (7 kg) Weight (14° lens): 20.8 lbs. (9.43 kg)
• Weight (26° lens): 19.4 lbs. (8.80 kg) Weight (15°–30° lens): 29.4 lbs. (13.34 kg)
• Weight (25°–50° lens): 27 lbs. (12.25 kg)
• Exterior color: Black
• Gobo size (optional): "A": 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
• Gobo size (optional): "B": 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
• Accessory holder/gel frame size (14° lens): 7.5 in (191 mm)
• Accessory holder/gel frame size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
• Accessory holder/gel frame size (15°–30° lens): 7.5" (191 mm)
• Accessory holder/gel frame size (25°–50° lens): 7.5" (191 mm)

• Power connection: Edison (local) plug to Neutrik powerCon
• Power input: Neutrik powerCon
• Power output: Neutrik powerCon
• Data connectors: 3- and 5-pin XLR
• Cable length (power): 5' (1.5 m)

• Control protocol: (WW) DMX; (CW) DMX, RDM
• DMX channels: 1, 2, 3 or 6
• Modes/Personalities: 4 personalities (1, 2, 3, 6)

• Input voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power linking: (WW) 8 units @ 120V; 13 units @ 208V; 14 units @ 230V; (CW) 7 units @ 120V; 12 units @ 208V; 13 units @ 230V
• Power and current: (WW) 209W, 1.655 A @ 120V, 60 Hz; (CW) 225W, 1.86 A @ 120V, 60 Hz
• Power and current: (WW) 206W, 1.026 A @ 208V, 60 Hz; (CW) 234W, 1.12 A @ 208V, 60 Hz
• Power and current: (WW) 204W, 0.925 A @ 230V, 50 Hz; (CW) 233W, 1.02 A @ 230V, 50 Hz

• CE, MET
• IP rating: IP20, dry location

• Ovation E-260WW/Ovation E-260CW
• Neutrik powerCon power cord

• Professional clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCon cables3-pin or 5-pin DMX cables
• Color blending filters: DF60X1D, DF20D
• RDM2go
• Ovation zoom lenses: OEZOOM1530, OEZOOM2550
• Gobo holder: Standard "S4" size Sandwich Style or Iris Slot Style gobo holder for "A" or "B" size gobos

• Lens tube: 19°, 26°, 36°, 50°
