Chauvet Ovation CYC 1 FC RGBAL LED Cyclorama Wash Light

Ovation CYC 1 FC is an incredibly sleek, discreet, and light weight CYC that delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low-profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kick stand and included glare shield that can adjust and shape its throw and also features an included omega bracket.

Features:

  • Low-profile and lightweight cyclorama wash or footlight fixture
  • Display a full spectrum of hues with RGBAL LEDs for theatre, film and production
  • Theatre-ready with 16-bit dimming of master dimmer and individual colors
  • Beam modification with built in “kick stand” and adjustable glare shield
  • Flat, even field of light with superior color mixing
  • Virtual Color wheel with color matched to popular gel colors and color temperature presets
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Silent operation for use in studio and theatre applications

Specifications:

Optical
    • Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy
    • Color Temperature (range): 2800 to 6500 K
    • CRI (3200 K): 91
    • Beam Angle: 85° (Horizontal)
    • Beam Angle: 81° (Vertical)
    • Field Angle: 128° (Horizontal)
    • Field Angle: 142° (Vertical)
    • Lumens: 8,966
    • Illuminance: 200 lux @ 5 m

Dynamic Effects
    • Dimmer: Electronic
    • Shutter/Strobe: Electronic
    • Strobe Rate: 0 to 27 Hz
    • Standalone Color Mixing: Yes
    • Color Temperature Presets: Yes
    • Dim Modes: 4
    • Built-in Automated Programs: Yes
    • Customizable Programs: No
    • Recall Custom Programs: No

Construction / Physical
    • Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
    • Weight: 9 lb (4.2 kg)
    • Exterior Color: Black
    • Housing Material: Aluminum die-cast

Connections
    • Power Connection: Edison (Local) plug to Neutrik® powerCON®
    • Power Input: Neutrik® powerCON®
    • Power Output: Neutrik® powerCON®
    • Data Connectors: 5-pin XLR
    • Cable Length (power): 5 ft (1.5 m)

Control
    • Control Protocol: DMX, RDM
    • DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
    • Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16 HSV)

Electrical
    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • Power Linking: 12 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
    • Power and Current: 138 W, 1.13 A @ 120 V, 60 Hz
    • Power and Current: 135 W, 0.65 A @ 208 V, 60 Hz
    • Power and Current: 137 W, 0.58 A @ 230 V, 50 Hz

Certifications / Qualifications
  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Reviews

Write a review

Score

Questions & Answers

Ask a question

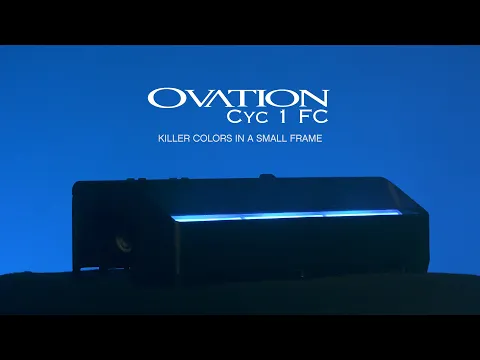

Video
