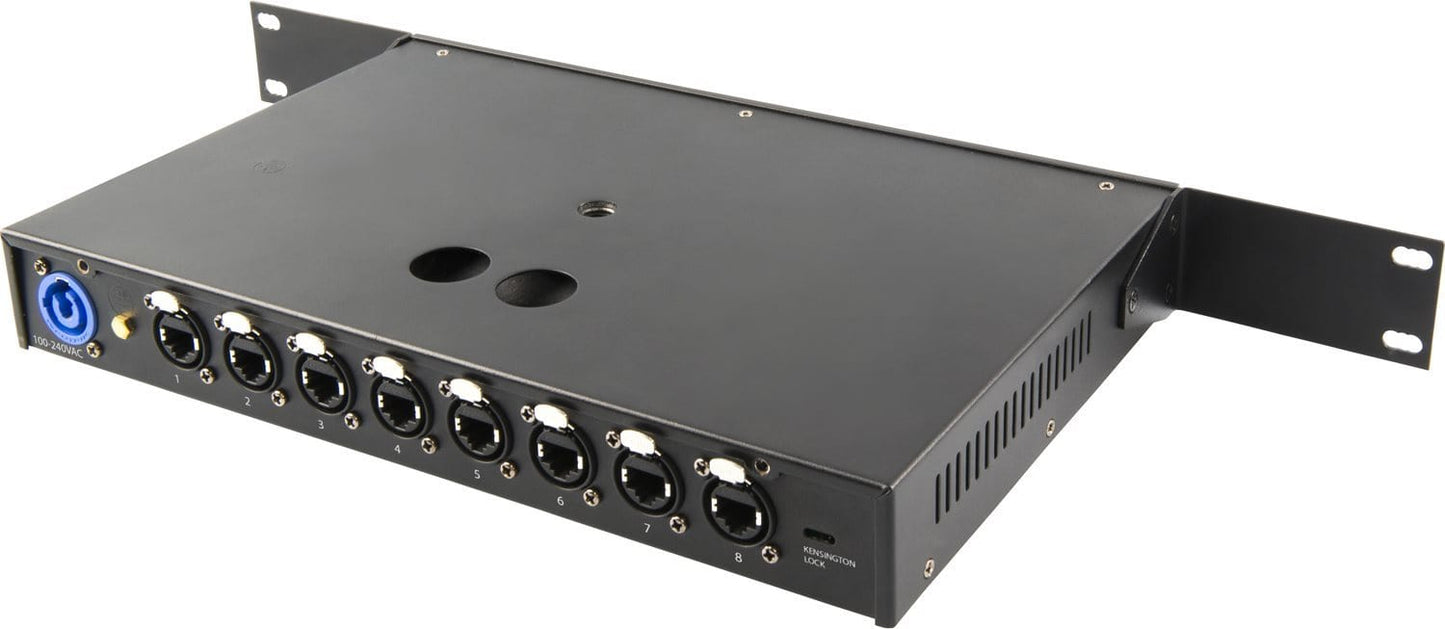

Chauvet NET-Switch Network Switch Controller

Chauvet NET-Switch Network Switch Controller

NET-Switch is a network switch that distributes Art-Net, Kling-Net, sACN, and other TCP/IP based lighting control protocols. It can be mounted on truss and also features removable rack-mount ears. With eight etherCON ports, it preserves signal strength and adds protective isolation. NET-Switch utilizes a high bandwidth, 48Gb/s throughput to reduce latency and ensure that you will hit your mark for live shows.

Features:

• Entertainment-grade network switch optimized for Art-Net, Kling-Net, and sACN
• Versatile applications with Truss-mount or Rack-mount options
• High-bandwidth throughput make this router ideal for live-action shows
• 8 etherCON ports allow for easy control routing, isolation, and amplification
• Unmanaged switch is ideal for plug-and-play operation

Specifications:

• OPTICAL
• Dimensions: 19 x 1.7 x 8 in (483 x 44 x 202 mm)
• Weight: 4.8 lb (2.2 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U
• CONNECTIONS
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Device Data Throughputs: Amphenol XLRnet (etherCON compatible) (8 total)
• Cable Length (power): 5 ft (1.5 m)
• CONTROL
• Control Protocol: Art-Net™, Kling-Net, sACN
• ELECTRICAL
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 25 W, 0.2 A @ 120 V, 60 Hz
• Power and Current: 25 W, 0.1 A @ 208 V, 60 Hz
• Power and Current: 25 W, 0.1 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
• CE
• IP Rating: IP20, dry location
• WHAT'S INCLUDED
• Net-Switch
• Neutrik powerCON power cord
• 2 Rack-mount Ears
