Chauvet Legend 300E Spot DMX Moving Head
The Legend™ 300E Spot moving yoke offers CMY color mixing and is fitted with a MiniFastFit lamp to provide superior output while maintaining a compact size. It features two gobo wheels, one with eight rotating gobos and the other with eight fixed gobos. The fixture also includes electronic ballast and power supply, variable shutter speed, an iris, focus and 16-bit dimming.
Features:- 21 or 29-channel compact, fully electronic, 300-watt moving yoke spot
- Pan: 540°
- Tilt: 270°
- Color wheel: 7 colors + white, Split/linear colors, Rainbow color spin at variable speed

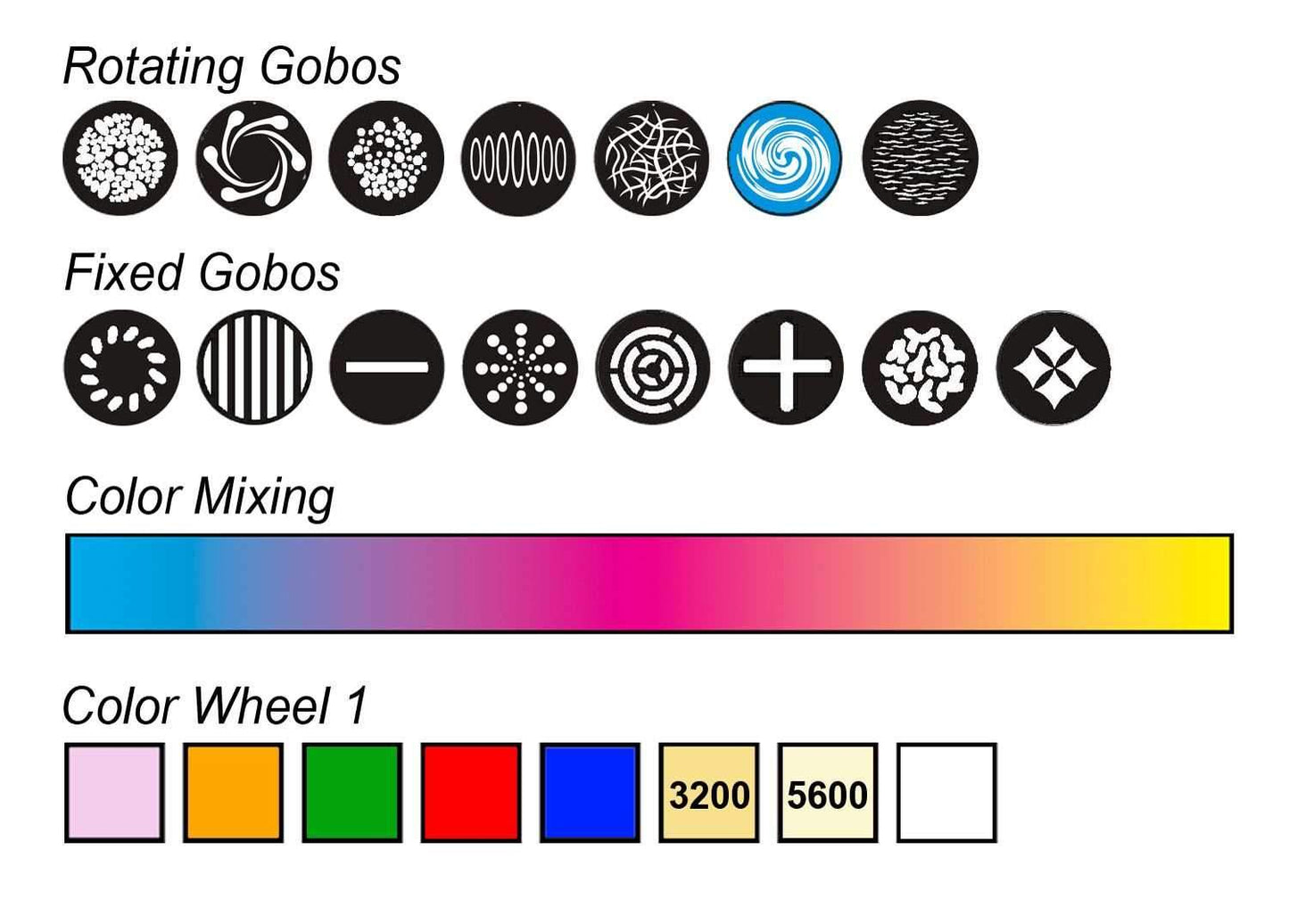

- Gobo wheel 1: Indexed, rotating gobo wheel with gobo shake, 7 glass, slot-n-lock gobos + open, 1 multicolor, 6 black / white, Gobo wheel spin at variable speed, 16-bit gobo rotation
- Gobo wheel 2: Indexed gobo wheel, 8 metal gobos + open, Gobo wheel spin at variable speed
- Static frost
- CTC filters (5,600 K and 3,200 K)
- CMY color mixing system with vector speed adjustments
- 3-facet rotating prism
- Variable shutter
- Variable iris
- Variable focus
- Variable 16-bit dimming (0 ~ 100%)
- Linear zoom (16° ~ 35°)
- Individual reset of pan/tilt, color, gobo, shutter, prism, focus
- Move-in-black for pan/tilt, color, gobo
- Remote fixture reset, lamp on/off and vector control speed adjustments
- Built-in movement macros with range adjustments
- Built-in color macros
- Battery powered display
- 3-pin and 5-pin DMX connections
- Two additional free gobos
- User-configurable lamp ignition delay
- User-configurable maintenance reminder
- Electronic ballast with power factor correction
- Electronic power supply
- Automatic pan and tilt correction
- Pan and tilt locks
- Lamp and fixture use timers
- Power saver mode
- Gobo wheel 1: 26.83 mm outside, 23.29 mm image, 4.32 mm max thickness
- Gobo wheel 2: 31.42 mm outside, 23.04 mm image, 0.80 mm max thickness
- Beam Angle: (16° ~ 35°)
- Lux: 12,200 @ 5 m, 16° zoom, 2,800 @ 5 m, 35° zoom
- Light source: MSR Gold 300/2 MiniFastFit™ 8,400 K, 750 hrs
- Power and current: 120 V, 60 Hz; 477 W, 4.12 A (operating), 3.1 A (inrush), PF 0.99, 230 V, 50 Hz; 468 W, 2.17 A (operating), 1.6 A (inrush), PF 0.95
- AC power: Auto-ranging 100 ~ 240 V, 50/60 Hz
- Weight: 47.50 lbs
- Size: 14.5 x 17.9 x 23.7 in
