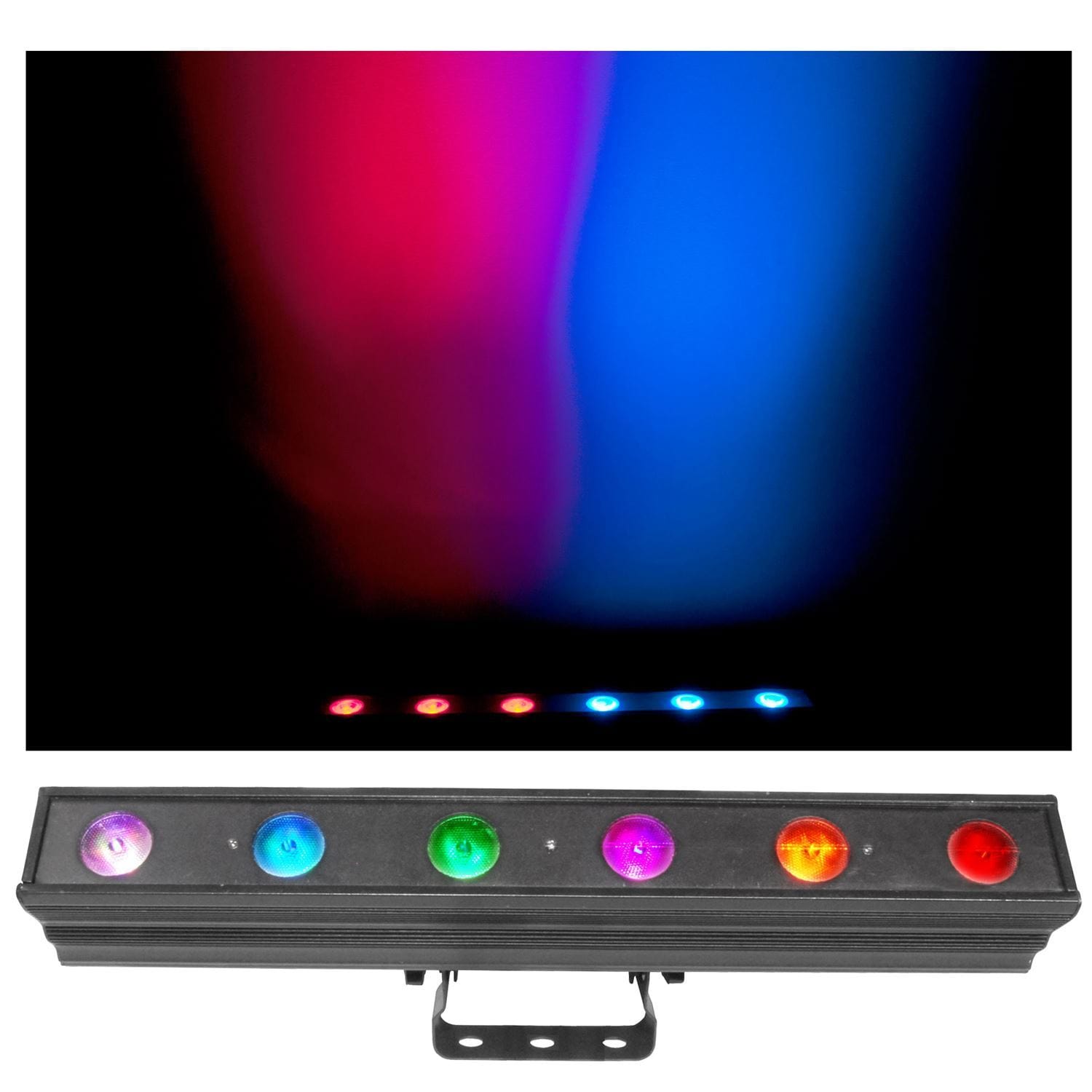

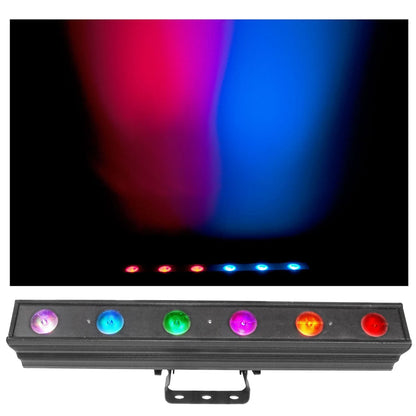

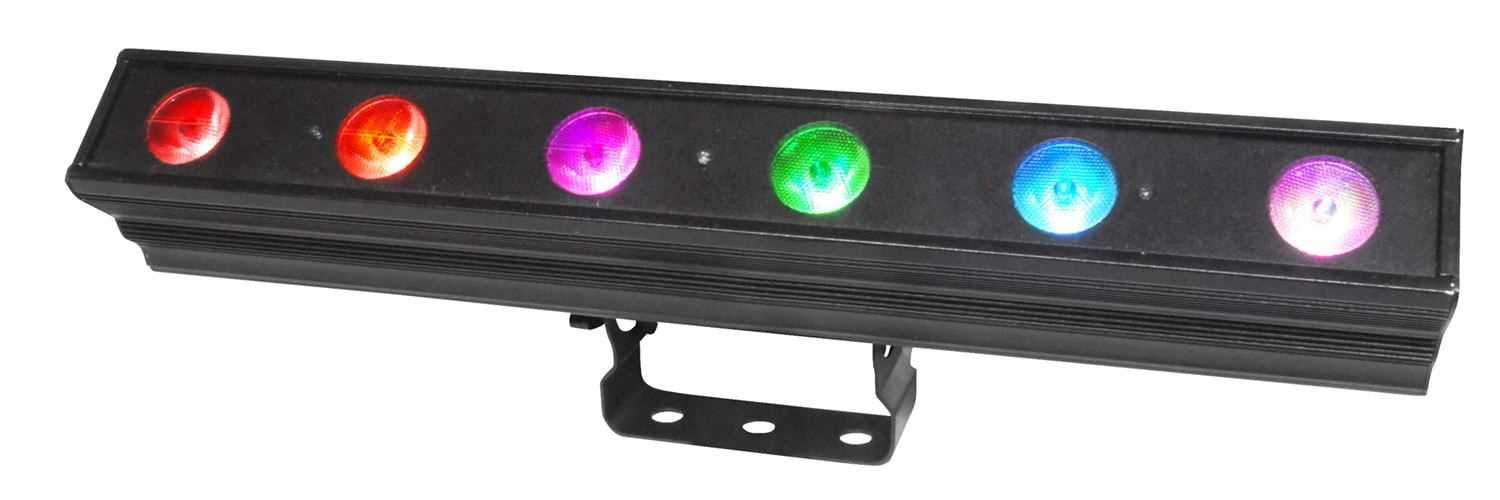

Chauvet COLORdash Batten-Quad 6 RGBA Wash Fixture
COLORdash Batten Quad-6 is a linear wash fixture with six quad-colored RGBA LEDs outputting any variation of white, as well as richly saturated colors, thanks to the inclusion of amber LEDs. It maintains an even pixel pitch when used in multiples, either stacked in an array using the optional CBB6 bracket or lined up end-to-end. Setup is greatly eased by a hanging bracket, floor trunnions, 3- and 5-pin DMX connectors and secure Neutrik® powerCON® power in and out.
Features:- DMX channels: 4, 6, 10, 24 or 28-channel
- Operating modes:
- 4-channel: RGBA
6-channel: dimmer, RGBA, strobe
10-channel: dimmer, RGBA, strobe, macro, auto, auto speed, dim mode
24-channel: R1, G1, B1, A1, R2, G2, B2, A2, R3, G3, B3, A3, R4, G4, B4, A4, R5, G5, B5, A5, R6, G6, B6, A6
28-channel: R1, G1, B1, A1, R2, G2, B2, A2, R3, G3, B3, A3, R4, G4, B4, A4, R5, G5, B5, A5, R6, G6, B6, A6, auto, auto speed, dimmer, strobe
- Silent flicker free operation
- Individual pixel control
- Maintain pixel pitch end to end or stacking
- 16 bit dimming with selectable dimming curves
- All metal construction for added durability
- DMX connectors: 3-pin & 5-pin
- Source: 6 (5 W) quad-color LEDs, 50,000 hours
- Light source: red (499mA x 2.13vdc = 1.06W), Green (480mA x 3.26vdc = 1.56W), Blue (468mA x 3.03vdc = 1.42W), Amber (500mA x 2.37vdc = 1.19W)
- Beam angle: 17 degrees
- Field angle: 33 degrees
- Illuminance: 390.7 lux @ 5 m
- Power linking: 17 units @ 120 V / 30 units @ 208 V/ 33 units @ 230 V
- Input voltage: auto-ranging 100-240 VAC 50/60 Hz
- Power and current: 90 W, 0.76 A @ 120 V 60 Hz
- Power and current: 94 W, 0.45 A @ 208 V 50 Hz
- Power and current: 96 W, 0.41 A @ 230 V 50 Hz

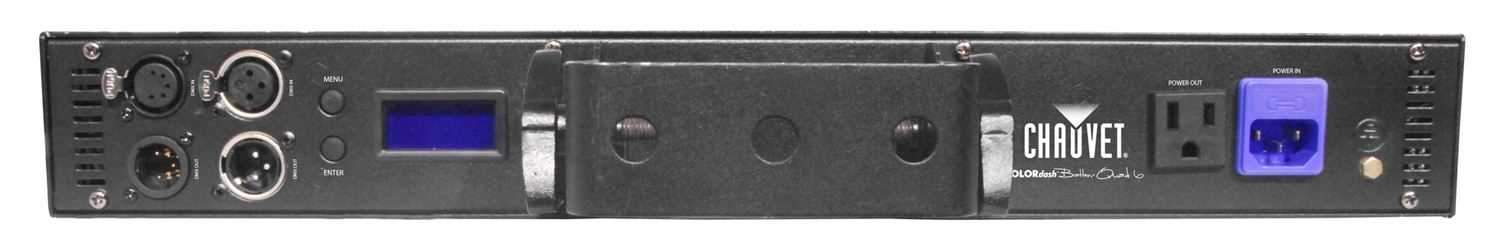

- Power Connection: Edison plug to Neutrik powerCON
- Power Input: Neutrik powerCON
- Power Output: Neutrik powerCON
- Weight: 5 lbs (2.3 kg)
- Size: 22 x 2.6 x 6.5 in (560 x 65 x 164 mm)
- Approvals: CE
