Description

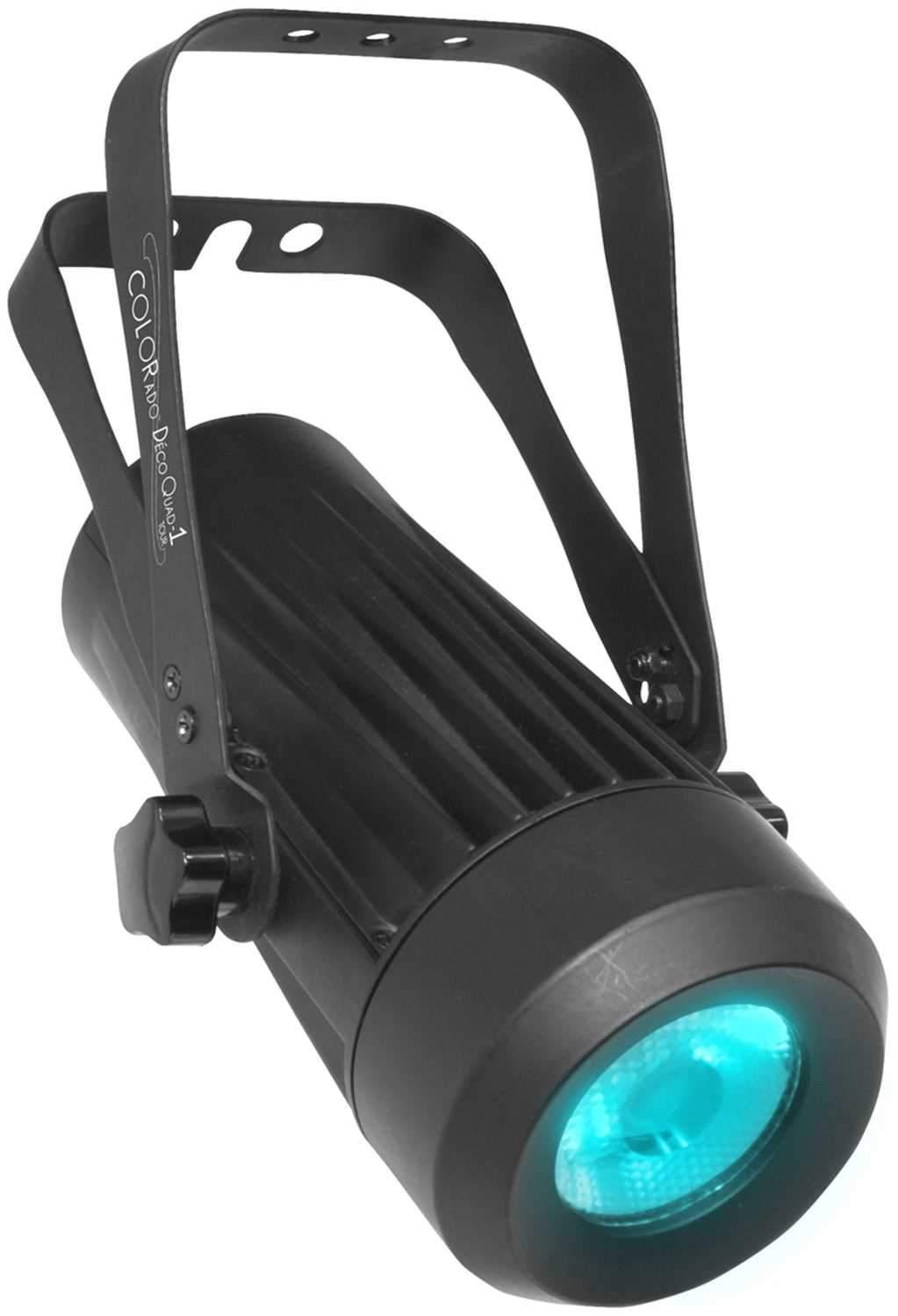

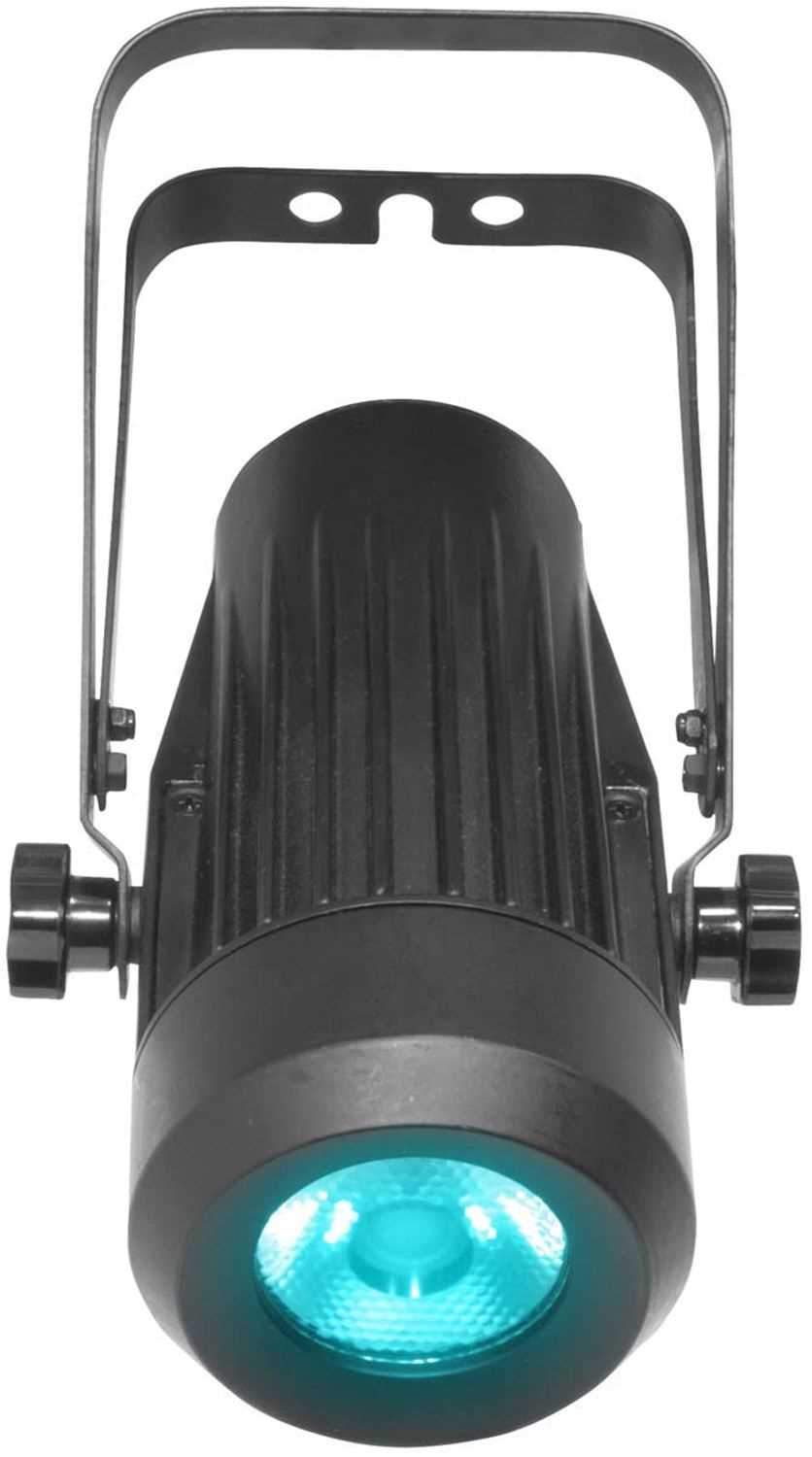

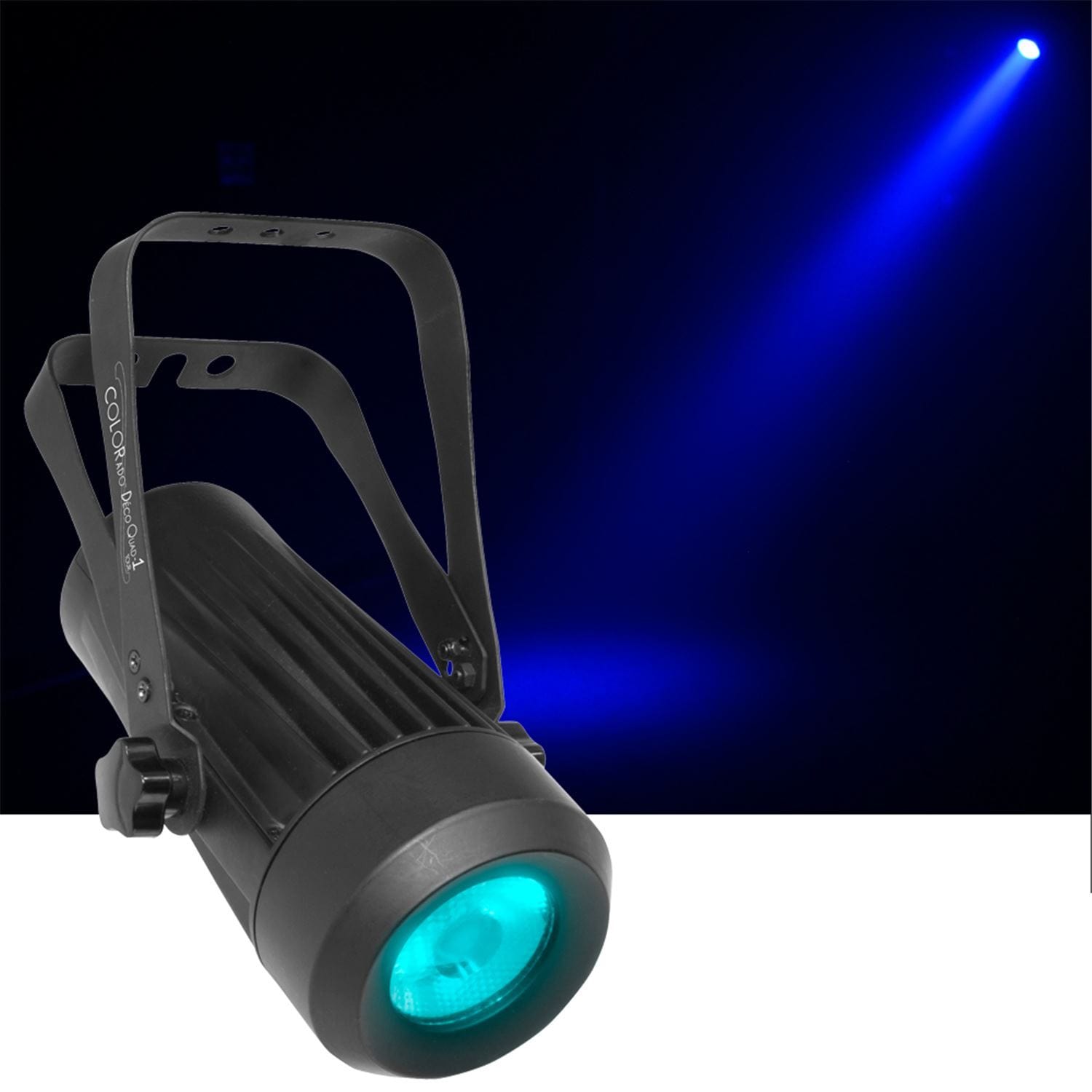

Chauvet COLORADO DECO Quad 1 Tour LED Light

COLORado Deco Quad-1 Tour loads a single powerful 10W quad-colored (RGBW) LED into a compact and robust housing. The incorporation of white in the quad-colored LED provides a truer white spectrum and an overall boost in color output for more subtle pastels and higher CRI. A split-yoke bracket allows floor or truss mounting. This fixture is perfect for warming narrow gauge truss, or accenting plants and architectural features.

Features:
  • Smooth color mixing and fading
  • Five distinct dimming curves
  • Three button LED digital display
  • DMX channels: 3, 4, 5, 6, or 9-channel
  • Operating modes
    • 3-channel: RGB control
    • 3-channel: HSV control
    • 4-channel: Dimmer, RGB control
    • 4-channel: RGBW control
    • 5-channel: Dimmer, RGBW control
    • 6-channel: Dimmer, RGBW control, Strobe
    • 9-channel: Dimmer, RGBW, Macro, Strobe, Auto Program, Auto Program Speed Adjustment
  • Colors LED: RGBW
  • Dimmer: Electronic
  • RGBW color mixing with or without DMX control
  • Built-in automated programs via master/slave or DMX
  • Double-bracket yoke doubles as floor stand
  • Flicker free operation
Specifications:
  • DMX connectors: 5-pin
  • Source: 1 (10 W) Quad LED, 50,000 hours
  • Light source: Red (582mA x 2.44vdc = 1.42W), Green (751mA x 3.86vdc = 2.89W), Blue (760mA x 3.69vdc = 2.80W), White (762mA x 3.67vdc = 2.79W)
  • Installed Optic: 25°
  • Beam angle: 12.5°
  • Field angle: 24°
  • Lux: 225 lx @ 5 m
  • AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
  • Power Consumption 120 V, 60 Hz: 15 W, 0.122 A (operating)
  • Power Consumption 208 V, 50 Hz: 16 W, 0.075 A (operating)
  • Power Consumption 230 V, 50 Hz: 16 W, 0.070 A (operating)
  • Dimensions: 4.72 x 3.15 x 8.35 in (120 x 80 x 212 mm)
  • Weight: 2.2 lbs (1 kg)
  • Power Connection: Edison
  • Control Connection: 5-pin DMX
  • Certification: CE, MET
  • Environment: IP20, dry location
