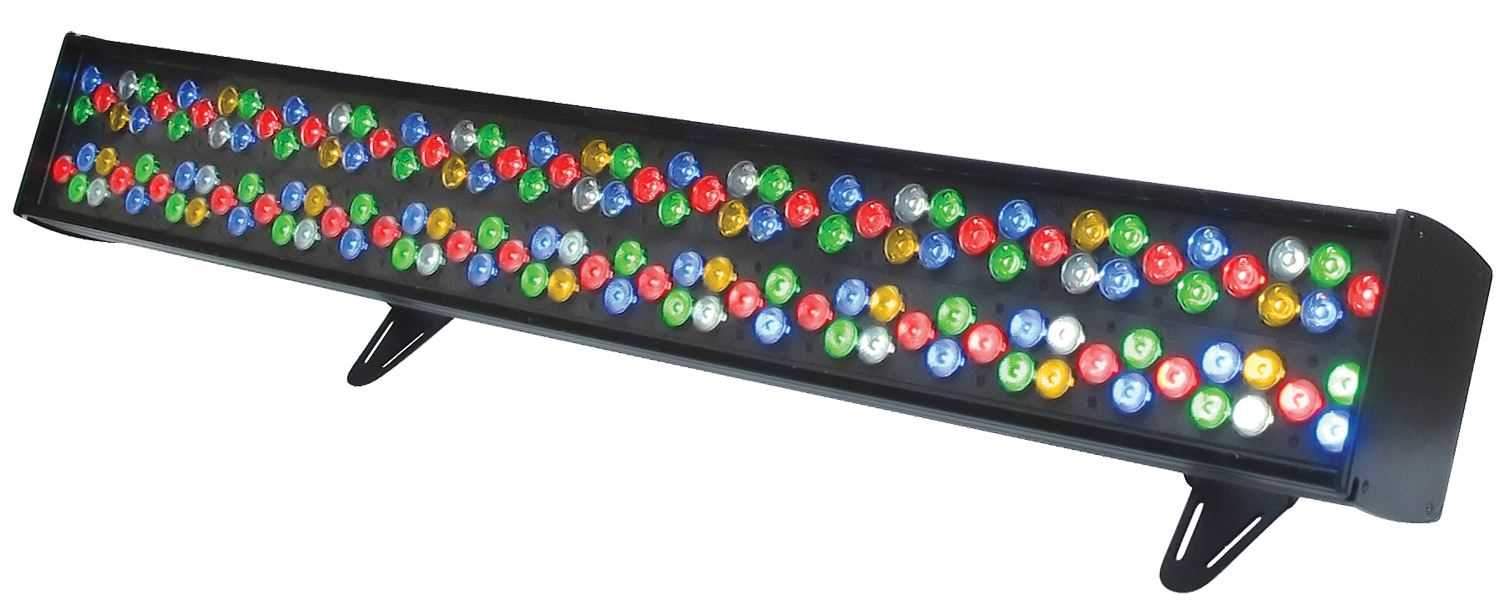

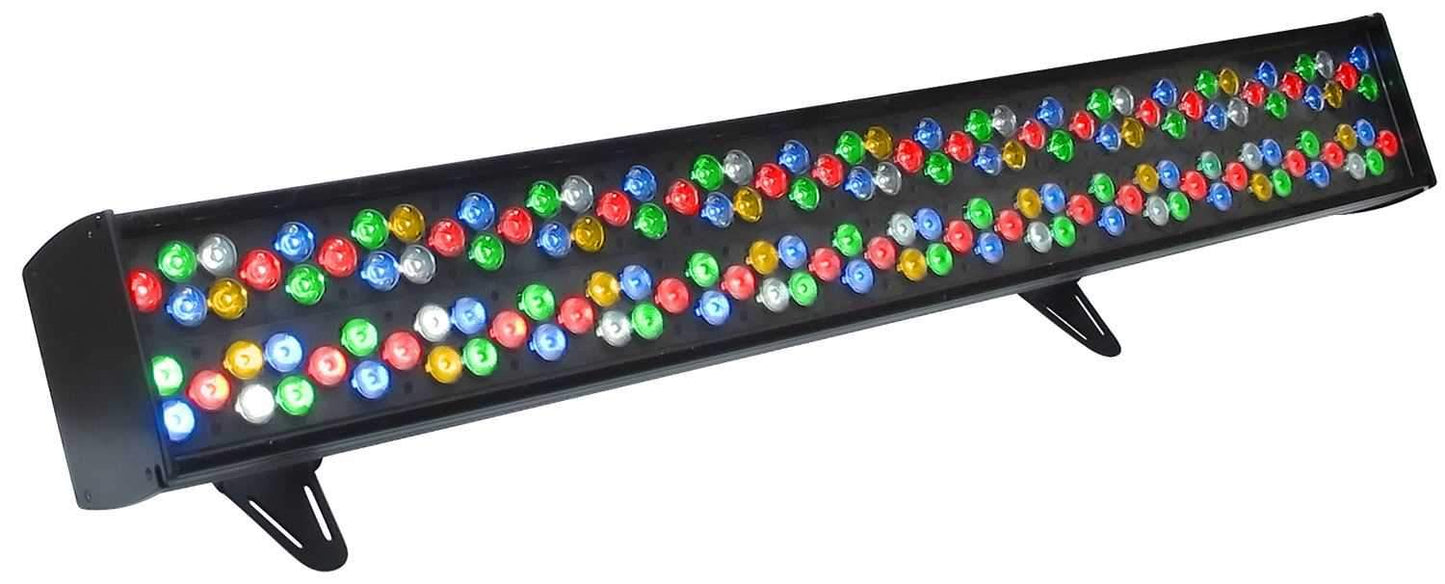

COLORado Batten 144 TOUR
It offers the same wide spectrum of RGBWA color mixing from the massively successful COLORado Batten 72 Tour with twice the LED output-featuring 144 1W RGBWA LEDs. With 15 and 30 degree optics, it offers an even wash of color across a cyclorama of 10 meters, eliminating the need for a ground row. The unit's low profile and low heat emission give you the versatility to squeeze it into the tightest spaces for powerful and surprising effects. The wash light is one meter long and can be broken down into different LED blocks for more control to create large runway effects. The fixture's feet double as hanging brackets so they can easily be used for foot lights or top lights.
Features:- 3, 4, 5, 6, 7, 9, 13, or 15-channel RGBWA LED linear wash light
- Operating modes: 3-channel: RGB control; 3-channel: HSV control (hue, saturation and value); 4-channel: RGB, dimmer; 5-channel: RGBWA control; 6-channel: RGBWA, dimmer; 7-channel: RGBWA, strobe; 9-channel: RGB for individual block control;13-channel: RGBWA, ID addressing, dimmer, strobe, macro, auto/custom, dimmer curve, auto speed, module select; 15-channel: RGBWA for individual block control
- Built-in automated programs via DMX
- Recall custom programs via DMX
- RGBWA color mixing with or without DMX control
- Five distinct dimming curves
- Additional power output: max 3 units @ 120 V
- LED display with lock-out feature
- PowerCon connector
- 3-pin and 5-pin DMX input and output connectors
- Adjustable feet double as hanging bracket
- Color calibration
- Installed optics: 15 degrees/30 degrees: Beam angle: 40.1 degrees, Field angle: 54.8 degrees, Lux: 1,990 @ 5 m
- Light source: 144 (1 W) LEDs, 50,000 hrs: 36 red (350 mA), 36green (350 mA), 36 blue (350 mA), 9 white (350 mA), 9 amber (350 mA)
- Power and current: 120 V, 60 Hz; 87 W, 1.43 A (operating), 0.4 A (inrush), 230 V, 50 Hz; 87 W, 0.78 A (operating), 0.8 A (inrush)
- AC power: Auto-ranging 100 V ~ 240 V 50/60 Hz
- Power input cable: 60 in (1,524 mm)
- Weight: 9.8 lbs / 8.2kg
- Size: 2.9 x 38.9 x 6.1 in / 140 x 989 x 210 mm
