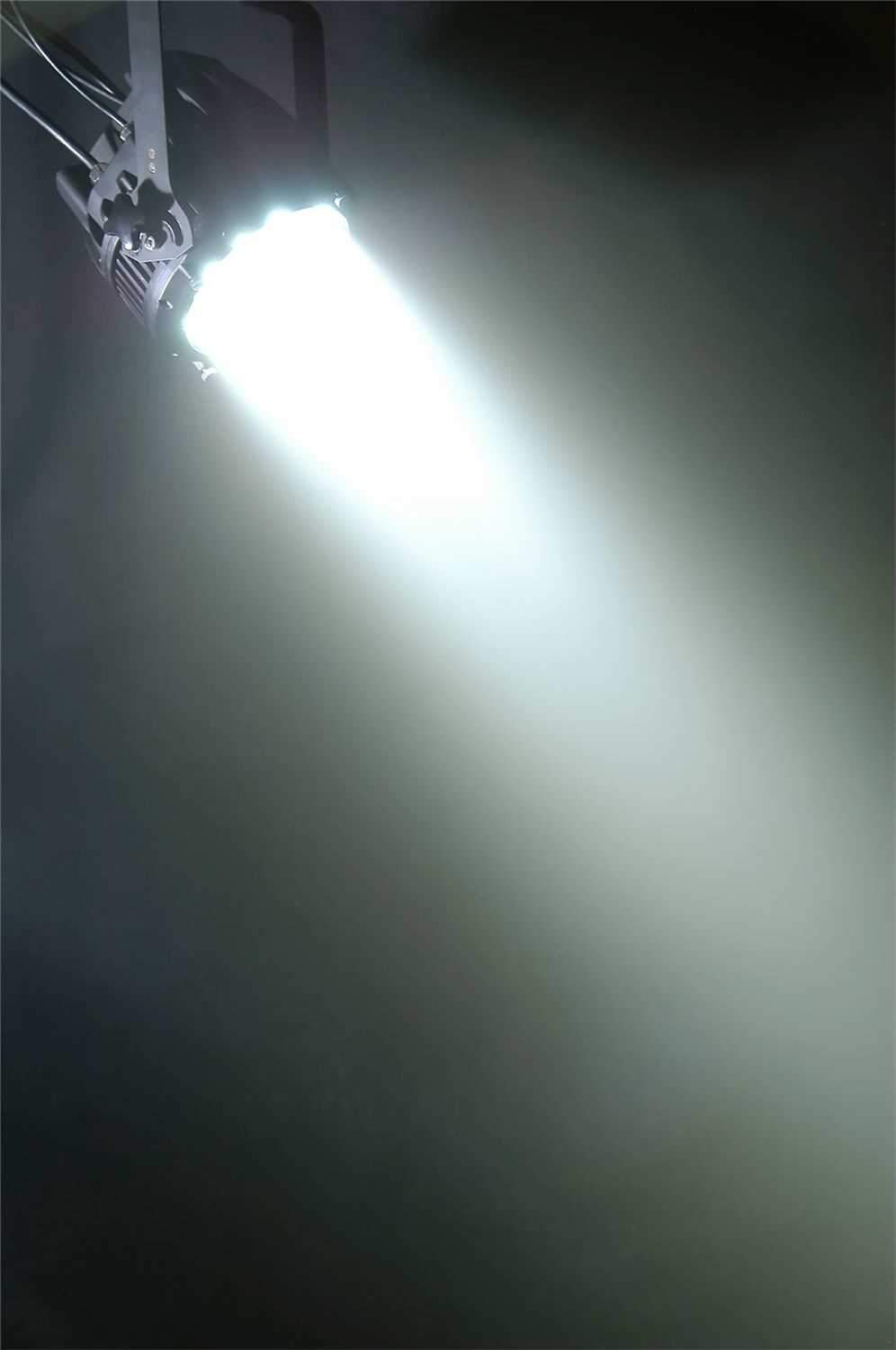

Chauvet COLORado 2 Zoom IP 61x 3-Watt LED Wash
COLORado 2 Zoom IP is the brightest, most powerful PAR-style wash in the COLORado IP family and features 61 RGBW Cree LEDs. The incorporation of wide-range zoom and five dimming curves lends considerable flexibility to designers who can use the same fixtures to highlight specific areas and flood a stage. IP-rated connections and hardware ensure a long life, even when exposed to the elements.
Features:- DMX channels: 3, 4, 5, 6, or 12-channel
- Operating modes:
- RGBW color mixing and zoom control with or without DMX control
- Color temperature presets (2,800 ~ 10,000 K)
- 7.7 degrees - 35 degrees zoom control with or without DMX control
- Built-in automated programs via master/slave or DMX
- Recall custom programs via master/slave or DMX
- Five distinct dimming curves
- RGBW LEDs
- Electronic dimmer
- Color macros with speed adjustment included
- Electronic power supply
- 5-pin DMX input and output connectors
- Additional power output: 7 units @ 120 V (max.) / 13 units @ 208 V (max.) / 15 units @ 230 V (max.)
- LED display with password protection
- Gel frame holder (4 mm max thickness)
- IP65, Temporary use outdoors
- Double-bracket yoke doubles as floor stand
- Color Calibration
- Flicker free operation for HD Video
3-channel: Red, Green, Blue (ARC 1)
3-channel: Hue, Saturation, Value (HSV)
4-channel: Dimmer, Red, Green, Blue (ARC 1+D)
4-channel: Red, Green, Blue, White (ARC 2)
5-channel: Dimmer, Red, Green, Blue, White (ARC 2+D)
6-channel: Dimmer, Red, Green, Blue, White, Strobe (ARC 2+S)
12-channel: Dimmer, Red, Green, Blue, White, Color Macro, Strobe, Auto Programs, Auto Speed Adjust, Dimmer Speed, Zoom, Zoom Reset (TOUR)
- DMX Channels: 3, 4, 5, 6, or 12
- DMX Connectors: 5-pin
- Light Source: 61 (17 Red, 17 Green, 17 Green, 10 White) 3W (900mA) LEDs 50,000hrs
- Strobe Rate: 0 - 20Hz
- Beam Angle: 7.7 ~ 35 degrees
- Field Angle: 13.5 ~ 48 degrees
- Zoom Angle: 7.7 ~ 35 degrees
- Illuminance: 5,190 lux @ 5m (7.7 degrees)
- Illuminance: 620 lux @ 5m (35 degrees)
- Color Temperature Range: 2,800 ~ 10,000K
- IP Rating: IP65
- Startup Temperature: -4 degrees - 113 degrees F (-20 degrees C - 45 degrees C)
- Operating Temperature: -22 degrees - 113 degrees F (-30 degrees C - 45 degrees C)
- Cable Length: 5ft (1.5m)
- Power Linking: 7 units @ 120V; 13 units @ 208V; 15 units @ 230V
- Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
- Power and Current: 214W, 1.77A @ 120V 60Hz
- Power and Current: 200W, 0.98A @ 208V 60Hz
- Power and Current: 197W, 0.90A @ 230V 50Hz
- Weight: 18.5lbs (8.39kg)
- Size: 9.3 x 11.9 x 12.2in (237 x 302 x 311mm)
- Approvals: CE, MET
