Chauvet COLORADO 1-QUAD Tour 70-Watt RGBW LED Wash Light

Chauvet COLORADO-1-QUAD-TOUR DMX LED Wash Light

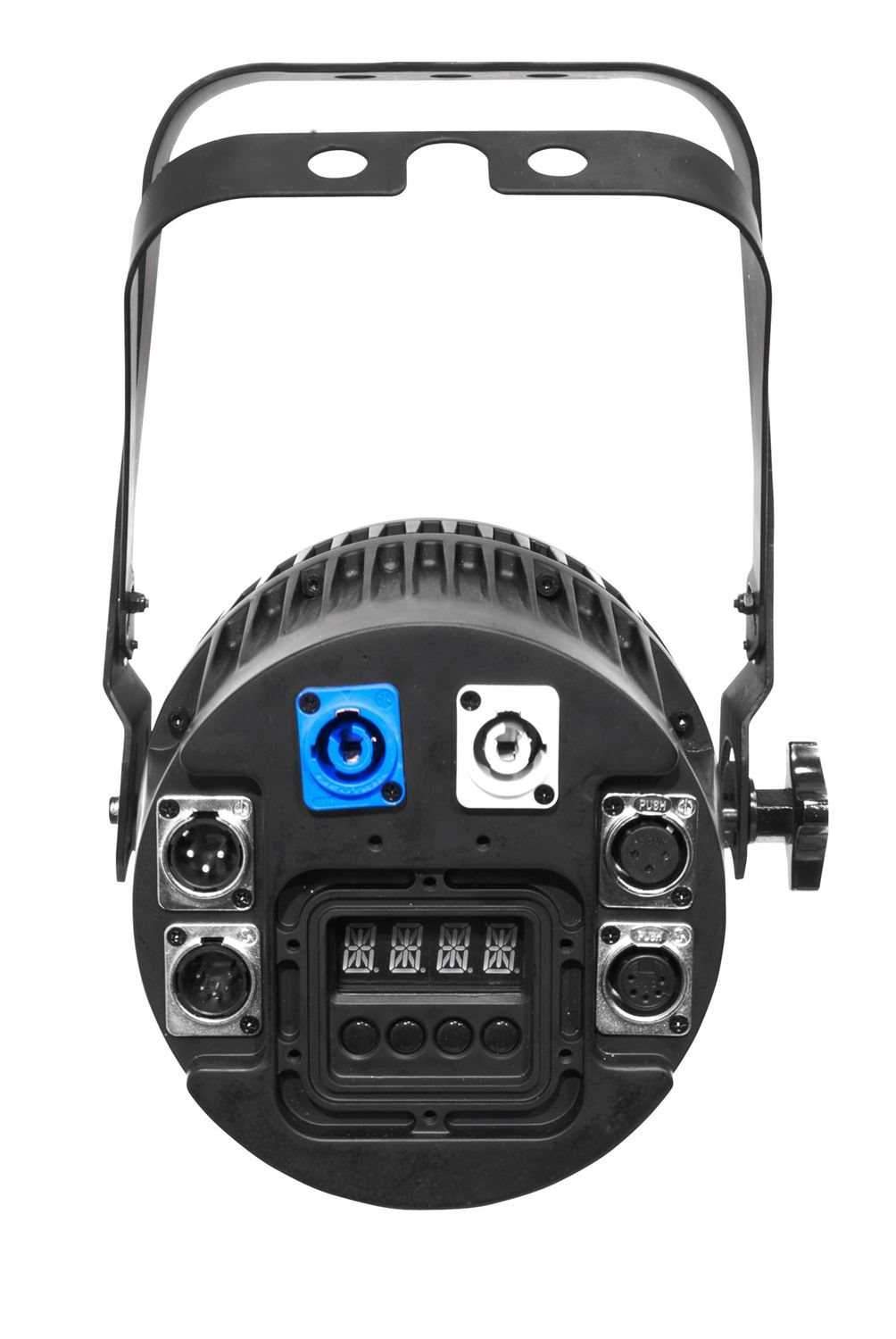

Powered by seven quad-colored LEDs, COLORado 1-Quad Tour is a compact, tour-ready wash light with a truer white spectrum, a vast color palette ranging from vivid hues to soft pastels and five dimming curves. A split yoke bracket allows floor or truss mounting and Neutrik powerCON connectors facilitate fast and secure set up. COLORado 1-Quad Tour also includes a built-in gel frame holder.

• 3, 4, 5, 6 or 10 Quad Color LED wash light
• Operating modes:
  3-channel: Red, Green, Blue (ARC 1)
  3-channel: Hue, Saturation, Value (HSV)
  4-channel: Dimmer, Red, Green, Blue (ARC 1+D)
  4-channel: Red, Green, Blue, White (ARC 2)
  5-channel: Dimmer, Red, Green, Blue, White (ARC 2+D)
  6-channel: Dimmer, Red, Green, Blue, White, Strobe (ARC 2+S)
  10-channel: Dimmer, Red, Green, Blue, White, Color Macro, Strobe, Auto Programs, Auto Speed Adjust, Dimmer Speed (TOUR)
• RGBW color mixing with or without DMX control
• Color temperature presets 3,200 ~ 10,000 K
• Built-in automated programs via master/slave, DMX
• Recall custom programs via master/slave or DMX
• Five distinct dimming curves
• RGBW Quad Color LEDs
• Electronic dimmer
• Color macros with speed adjustment included
• Electronic power supply
• Neutrik powerCon connectors
• LED display with password protection
• Double-bracket yoke doubles as floor stand
• Color Calibration

• DMX connectors: 3-pin and 5-pin
• Source: 7 (10 W) quad-color LEDs, 50,000 hours
• Light source: Red (692mA x 2.58vdc = 1.79W), Green (687mA x 3.90vdc = 2.68W), Blue (685mA x 3.69vdc = 2.53W), White (681mA x 3.63vdc = 2.47W)
• Strobe Speed: 0 - 20hz
• Beam Angle: 11.5 degrees
• Field Angle: 25 degrees
• Lux: 1,650 @ 5 m
• AC Voltage Range: 100~240 V, 50/60 Hz (auto-ranging)
• Power Consumption 120 V, 60 Hz: 66 W, 0.6 A (operating)
• Power Consumption 230 V, 50 Hz: 65 W, 0.3 A (operating)
• Power linking: 10 units @ 120 V (max.) / 18 units @ 230 V (max.)
• Dimensions: 8.7 x 9.3 x 13.1 in (222 x 235 x 335mm)
• Weight: 11.5 lbs (5.2 kg)
• Power Connection: NEUTRIK powerCON power input and output connector
• Certification: CE, MET
• Environment: IP20, dry location
• Cabling: NEUTRIK powerCON extension (18 in, 5/10/25 ft)
