Blizzard IRiS R3G2 3.9mm Indoor LED Video Panel

Blizzard IRiS R3G2 3.9mm Indoor LED Video Panel

3.9mm Indoor LED PanelReliable and affordable, IRiS R3G2 is a workhorse in production and install environments. IRiS R3G2 is ETL listed and manufactured with precisely matched SMD2020 blackbody LEDs for exceptional color reproduction and gamut. Its 3.9mm pixel pitch offers versatility and value, while built-in curve mechanisms offer creative control for daring panel configurations.

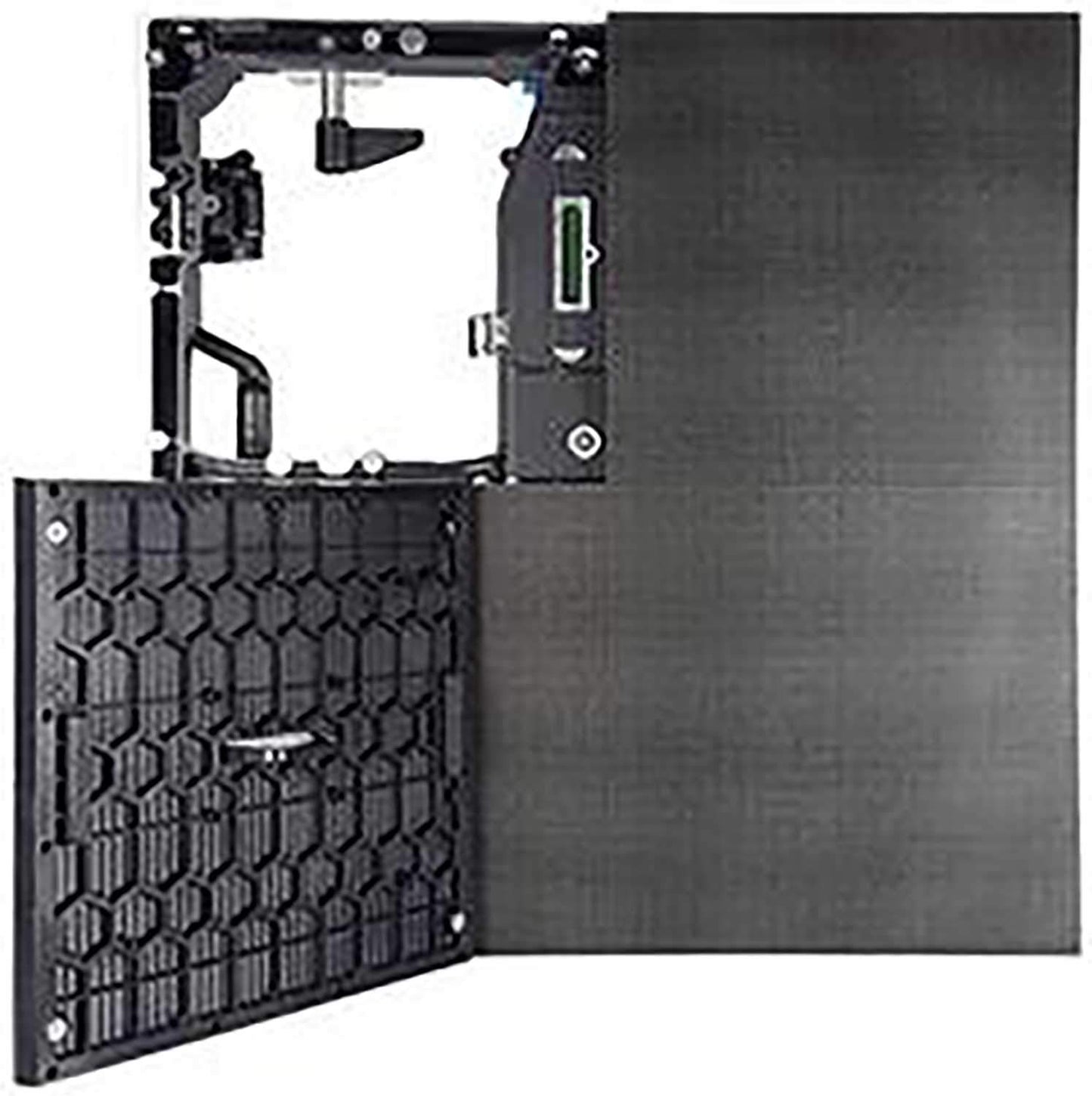

Quick + Easy MaintenanceThese panels weigh in at under 20lbs thanks to their strong and lightweight CNC + cast aluminum frame, and module maintenance is tool-free and easy with their 4x magnetic-mount front/rear modules per panel. They can be controlled flawlessly with Novastar® LED display controllers, and each panel comes with a 3' etherCON® compatible interconnect, plus a 3' powerCON® compatible interconnect cable.

Features:

• Panel Dimensions: 500×500×100mm
• Pixel Pitch (mm): 3.9
• LED Type: Black SMD 2020
• Pixel Per Panel: 128×128
• Curvature: 10° concave, 5° convex maximum
• Brightness (cd/m2): 1200
• Refresh Rate (Hz): 3840
• Panel Material: Cast Aluminum
• Modules Per Panel: 4
• Module Dimensions: 250×250mm
• Viewing Angle (H/V) (°): 150/130
• Send/Receive: NovaStar®
• Power: Neutrik® powerCON®
• Data: Neutrik® etherCON®
• IP Rating (Front/Rear): IP40/IP21
• Certificate: cETLus | FCC | CE | RoHS

Specifications:

Overview

• Panel Material: CNC + Cast Aluminum
• Front IP Rating: IP40
• Rear IP Rating: IP21
• Curve Hardware: Double-arm
• Modules Per Panel: 4
• Rigging Options: IRiS-R2, R3G2, & IP3-FLY1 + IRiS-R2, R3G2, & IP3-FLY2 Bumpers, Rigging/Stack, Rear Installation
• Max Rigged Height: 20 panels

Optical

• Pixel Pitch (mm): 3.9
Native Resolution: 128x128
• Pixels per Panel/m2: 16,384
• LED Type: Blackface SMD 2020
• Module Type: Magnetic, Universal
• LED Lifetime (H): 100000
• Brightness (cd/m2): 1200
• Refresh Rate (Hz): 3840
• Grayscale Level: 65,536
• Contrast Ratio: 7000:1
• Color Temperature (K): 6500
• Viewing Angle (H/V) (°): 150/130

Weight & Dimensions

• Panel Dimensions: 500×500×100mm
• Panel Weight: 8.8kg / 19.36lbs
• Module Dimensions: 250×250mm

Power & Current

• Operating Voltage: 100-240VAC
• Max Power Consumption (W/m2): 510W
• Electronics Service: Front/Rear
• Backbox Design: Modular
• Power: Neutrik® powerCON® in/out
• Data: Neutrik® etherCON® in/out

Warranty

• 2-year limited warranty with two business day turnaround on LED repairs and most module repairs that don’t require module replacement. For most electronic issue, Blizzard will ship you a new one within 24 business hours.
