Blizzard IRiS R3 3.9mm Indoor LED Video Panel
IRiS™ R3 is a 0.5-meter professional LED video panel that is perfect for either indoor rental or permanent installations.
Each panel features 128x128 resolution (16,384 pixel), high-contrast 3-in-1 SMD2121 blackbody LEDs for vivid colors & wide gamut. IRiS R3 features 3.9mm pixel pitch and boasts exceptional 1200nits brightness and 1920Hz refresh rate for captivating performance in-person or on camera.

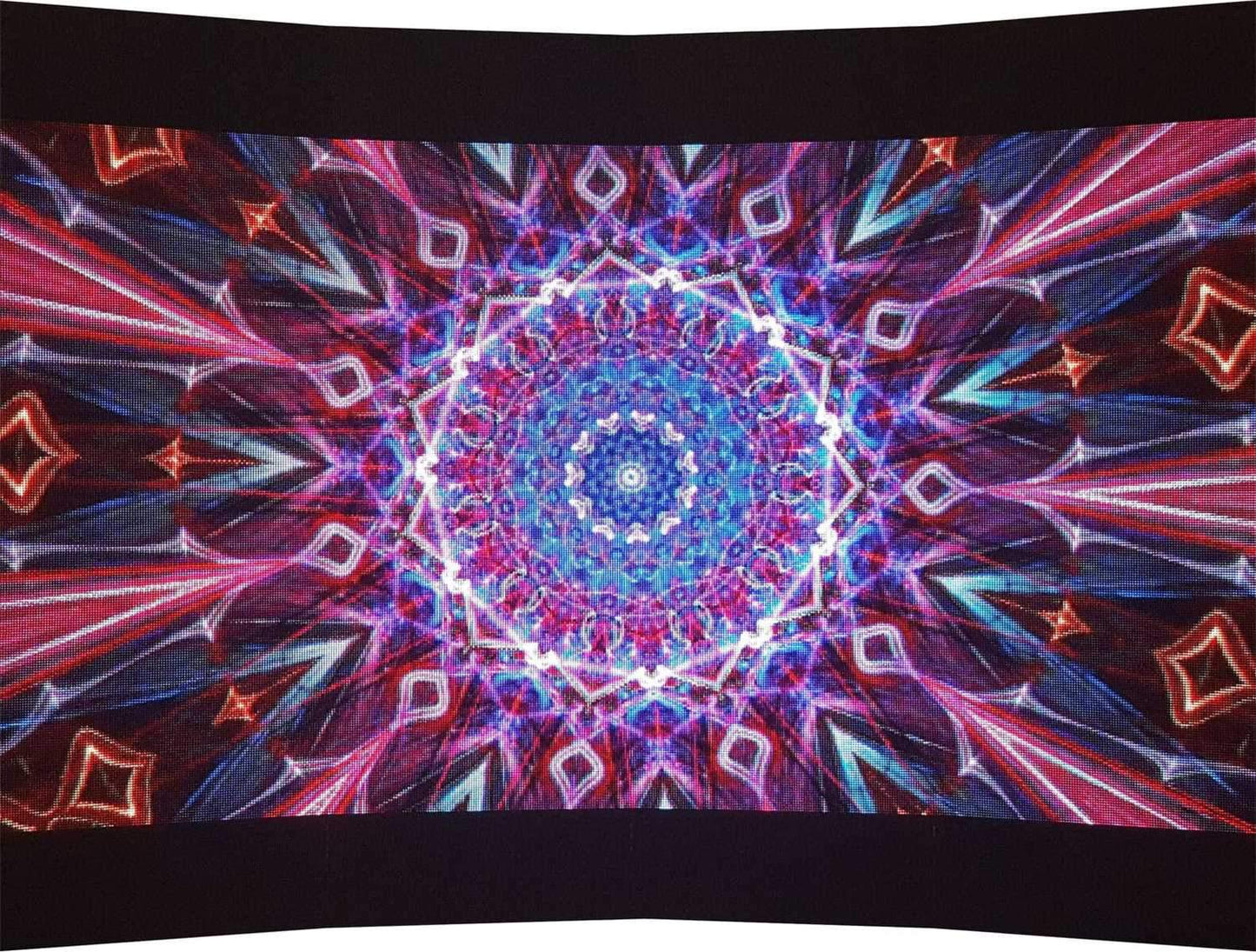

Connecting panels together is a breeze thanks to IRiS's sophisticated quick lock system. Just align the display, turn the quick-lock pins, and they are ready to go. Plus, IRiS's indexed, locking concave/convex radian horizontal connectors allow stunning curved layouts between 5° convex and 10° concave.
Each IRiS panel weighs in under 17lbs thanks to its strong and lightweight diecast aluminum frame. LED module maintenance is tool-free and easy with IRIS's 4* magnetic-mount front/rear modules per panel (250x250mm).
IRiS™ R3 video panels work with the Novastar® VX4S professional LED display controller. Besides the function of display control, the VX4S also features powerful front end processing, so an external scaler is not needed.
Full packages are available that include either 12 or 24 panels, a Novastar® VX4S controller, software, all cables, and flight cases so you will have everything you need to get up and running in no time!
Each IRiS™ R3 video panel comes packaged with 1x powerCON™-compatible 3' interconnect cable, and 1x etherCON™-compatible 3' interconnect cable.
Warranty:
*IRiS video products are covered by Blizzard’s 2-year limited warranty. In addition, we offer 2 business day turnaround on LED repairs and most module repairs that don’t require module replacement. For most electronic issues, we’ll ship you a new one within 24 business hours. We’ll even pick up freight both ways for the first 6 months after purchase.
Available Accessories:
- IRiS Fly 1: Single Rigging Bar
- IRiS Fly 2: Dual Rigging Bar
- Novastar VX4S: Video Controller
- IRiS Flight Case: 6-panel ATA-spec Road Case
- Blizzard KLAMP: Mounting Clamps
- Blizzard COOL CABLES: powerCON & etherCON-compatible
- IRiS Service Kit
Specifications
Physical
- Pixel Pitch (mm): 3.9
- Panel Dimensions: 500×500×95mm
- Pixel Per Panel: 128×128
- Panel Weight: 7.5kg / 16.5lbs
- Panel Material: Cast Aluminum
- Modules Per Panel: 4
- Module Dimensions: 250×250mm
Optical/Electrical
- LED Type: Blackface SMD 2121
- Brightness (cd/m2): 1200
- Refresh Rate (Hz): 1920
- Grayscale: 16-bit
- Contrast Ratio: 7500:1
- Color Temperature (K): 7500
- Viewing Angle (H/V) (): 150/130
- Drive Type: 1/16
- Send/Receive Architecture: NovaStar
- Power: Neutrik powerCON in/out
- Data Neutrik etherCON in/out
- Operating Voltage: 100-240VAC
- Power Consumption (W/m2): 450 / 150
Rigging/Application
- Storage Temperature (C): -40~+60
- Operating Temperature (C): -10~+40
- Storage Humidity (RH): 10% ~ 90%
- Operating Humidity (RH): 10% ~ 90%
- IP Rating (Front/Rear): IP40/IP21
- LED Lifetime (H): 100000
- Module Maintenance: Front/Rear
- PSU, Receiving Card, Etc. Maintenance: Rear
- Curvature: 10 concave, 5 convex maximum
- Panel Installation Type: Rigged or Ground stacked with rear support structure. (M12 mounting points fitted on panels)
- Max Height: 20 panels
- Certificate: cETLus | FCC | CE | RoHS
