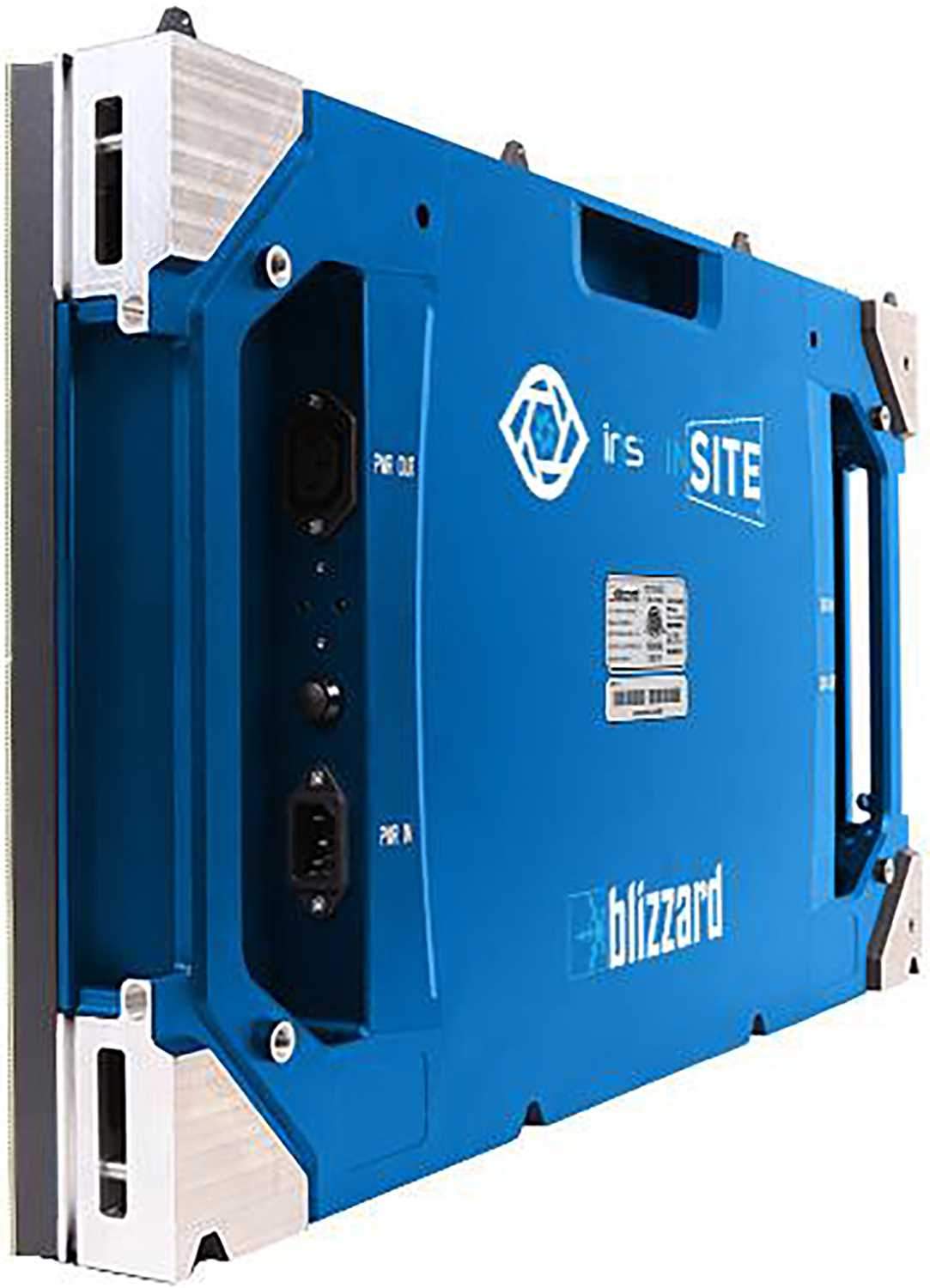

Blizzard IRiS inSite 2.5 16:9 Indoor LED 2.54mm Install Video Panel

Blizzard IRiS inSite 2.5 16:9 2.54mm Video Panel

2.5mm Pixel Pitch - 16:9 HDIRiS™ InSite 2-Five (2.5mm) LED video panels deliver true 16:9 aspect ratio HD video quality. They are ETL listed and manufactured with precisely matched SMD2121 blackbody LEDs for exceptional color reproduction and gamut. They offer safe and quick front service with 2 universal magnetic die-cast aluminum modules per panel. IRiS™ InSite panels are simple to install via floor stacking, rigging, or permanent flush wall-mounting.

Quick + Easy MaintenanceThese panels weigh in at under 20lbs thanks to their strong and lightweight CNC + cast aluminum frame, and module maintenance is tool-free and easy with their 2x magnetic-mount front/rear modules per panel. They can be controlled flawlessly with Novastar® LED display controllers, and each panel comes with a 3' etherCON® compatible interconnect, plus a 3' powerCON® compatible interconnect cable

Features:

• Panel Dimensions: 610×343×61mm
• Pixel Pitch (mm): 2.54
• LED Type: Black SMD 2121
• Pixel Per Panel: 240×135
• Brightness (nit): 1000
• Refresh Rate (Hz): 3840
• Panel Material: CNC + Cast Aluminum
• Modules Per Panel: 2
• Module Dimensions: 305×343mm
• Viewing Angle (H/V) (°): 160/140
• Send/Receive: NovaStar®
• Power: Neutrik® powerCON®
• Data: Neutrik® etherCON®
• IP Rating (Front/Rear): IP40/IP21
• Certificate: cETLus | FCC | CE | RoHS

Specifications:

Overview

• Panel Material: CNC + Cast Aluminum
• Front IP Rating: IP40
• Rear IP Rating: IP21
• Modules Per Panel: 2
• Rigging Options: Rigging/Stack, Front/Rear Installation
• Max Rigged Height: 12 panels

Optical

• Pixel Pitch (mm): 2.54
• Native Resolution: 240x135
• Pixels per Panel/m2: 32,400
• LED Type: Black SMD 2121
• Module Type: Magnetic, Universal
• LED Lifetime (H): 100000
• Brightness (cd/m2): 1000
• Refresh Rate (Hz): 3840
• Grayscale: 14 bit
• Contrast Ratio: 5000:1
• Color Temperature (K): 6500
• Viewing Angle (H/V) (°): 160/140

Weight & Dimensions

• Panel Dimensions: 610×343×61mm
• Panel Weight: 8 kg / 17.6 lbs
• Module Dimensions: 305×343mm

Power & Current

• Operating Voltage: 100-240VAC
• Max Power Consumption (W/m2): 500W
• Electronics Service: Front
• Power: Neutrik® powerCON® in/out
• Data: Neutrik® etherCON® in/out

Warranty

• 2-year limited warranty with two business day turnaround on LED repairs and most module repairs that don’t require module replacement. For most electronic issue, Blizzard will ship you a new one within 24 business hours.
