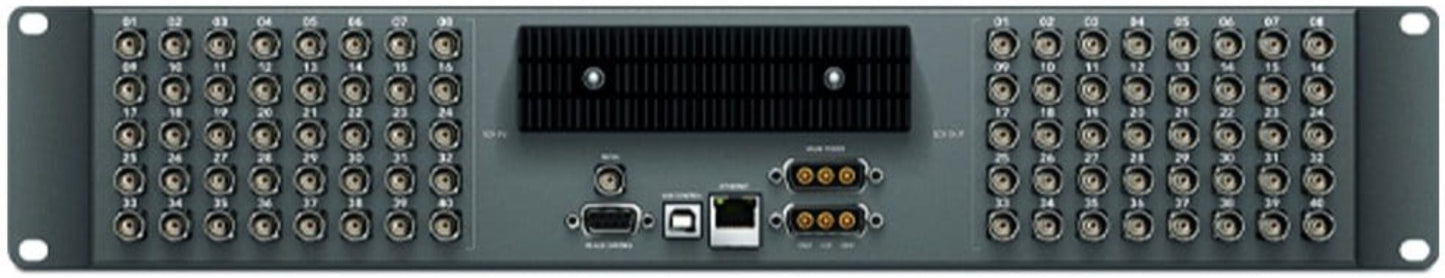

Blackmagic Design VHUB/VCPT Matrix 40:40
The Compact Videohub is perfect when you need a bigger router in a small size, such as creative post facilities and broadcast trucks. Compact Videohub includes 40 x 40 SDI routing all packed into a 2 rack unit size. You get auto SD, HD and 3Gb/s HD-SDI detection, re-clocking, with built in Ethernet, USB and serial router control interfaces.
Specifications:
- Connections:
- SDI Video Input:
- 40 x SDI/HD-SDI
- 3Gb/s SDI and ASI
- SDI Video Output:
- 40 x SDI/HD-SDI
- 3Gb/s SDI and ASI with SDI re-clocking
- Reference Input: Blackburst and TriSync for SD, HD and 2K.
- Multi Rate Support: Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
- Updates: USB 2.0 high speed (480Mb/s) interface.
- Router Control: Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network.
- Router Configuration: Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
- RS-422 Router Control: 1 x input for controlling router crosspoint switching.
- Reclocking:
- On all SDI outputs
- auto switching between standard definition
- high definition or 3 Gb/s SDI video
- Standards:
- SD Format Support: 625/25 PAL and 525/29.97 NTSC.
- HD Format Support: 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60.
- 2K Format Support: 2048 x 1556/23.98/24/25.
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
- SDI Video Rates:
- SDI video connections are switchable between standard definition
- high definition and 2K. SDI switches between 270 Mb/s standard definition SDI
- 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI
- SDI Video Sampling: 4:2:2 and 4:4:4.
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision: 4:2:2 and 4:4:4 10 bit.
- SDI Color Space: YUV or RGB.
- SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard.
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
- Extras:
- Software Control: Router control included free for WindowsT and Mac OS XT.
- Internal Software Upgrade: Via included updater application.
- Physical Installation: 2 rack unit size. Less than an inch deep.
- Power Fail Protection: Router connections preserved and restored instantly at power on independently of host computer.
- Power Supply: 1 x power supply included. IEC power cable required.
- Product Warranty: 3 Year Limited Manufacturer's Warranty.
- SDI Video Input:
- 40 x SDI/HD-SDI
- 3Gb/s SDI and ASI
- SDI Video Output:
- 40 x SDI/HD-SDI
- 3Gb/s SDI and ASI with SDI re-clocking
- Reference Input: Blackburst and TriSync for SD, HD and 2K.
- Multi Rate Support: Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
- Updates: USB 2.0 high speed (480Mb/s) interface.
- Router Control: Use either RJ45 Ethernet or USB 2.0 high speed interface or Smart Control shared over IP network.
- Router Configuration: Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
- RS-422 Router Control: 1 x input for controlling router crosspoint switching.
- Reclocking:
- On all SDI outputs
- auto switching between standard definition
- high definition or 3 Gb/s SDI video
- SD Format Support: 625/25 PAL and 525/29.97 NTSC.
- HD Format Support: 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60.
- 2K Format Support: 2048 x 1556/23.98/24/25.
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
- SDI Video Rates:
- SDI video connections are switchable between standard definition
- high definition and 2K. SDI switches between 270 Mb/s standard definition SDI
- 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI
- SDI Video Sampling: 4:2:2 and 4:4:4.
- SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision: 4:2:2 and 4:4:4 10 bit.
- SDI Color Space: YUV or RGB.
- SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on each input so that each input can be running a different television standard.
- SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
- Software Control: Router control included free for WindowsT and Mac OS XT.
- Internal Software Upgrade: Via included updater application.
- Physical Installation: 2 rack unit size. Less than an inch deep.
- Power Fail Protection: Router connections preserved and restored instantly at power on independently of host computer.
- Power Supply: 1 x power supply included. IEC power cable required.
- Product Warranty: 3 Year Limited Manufacturer's Warranty.
