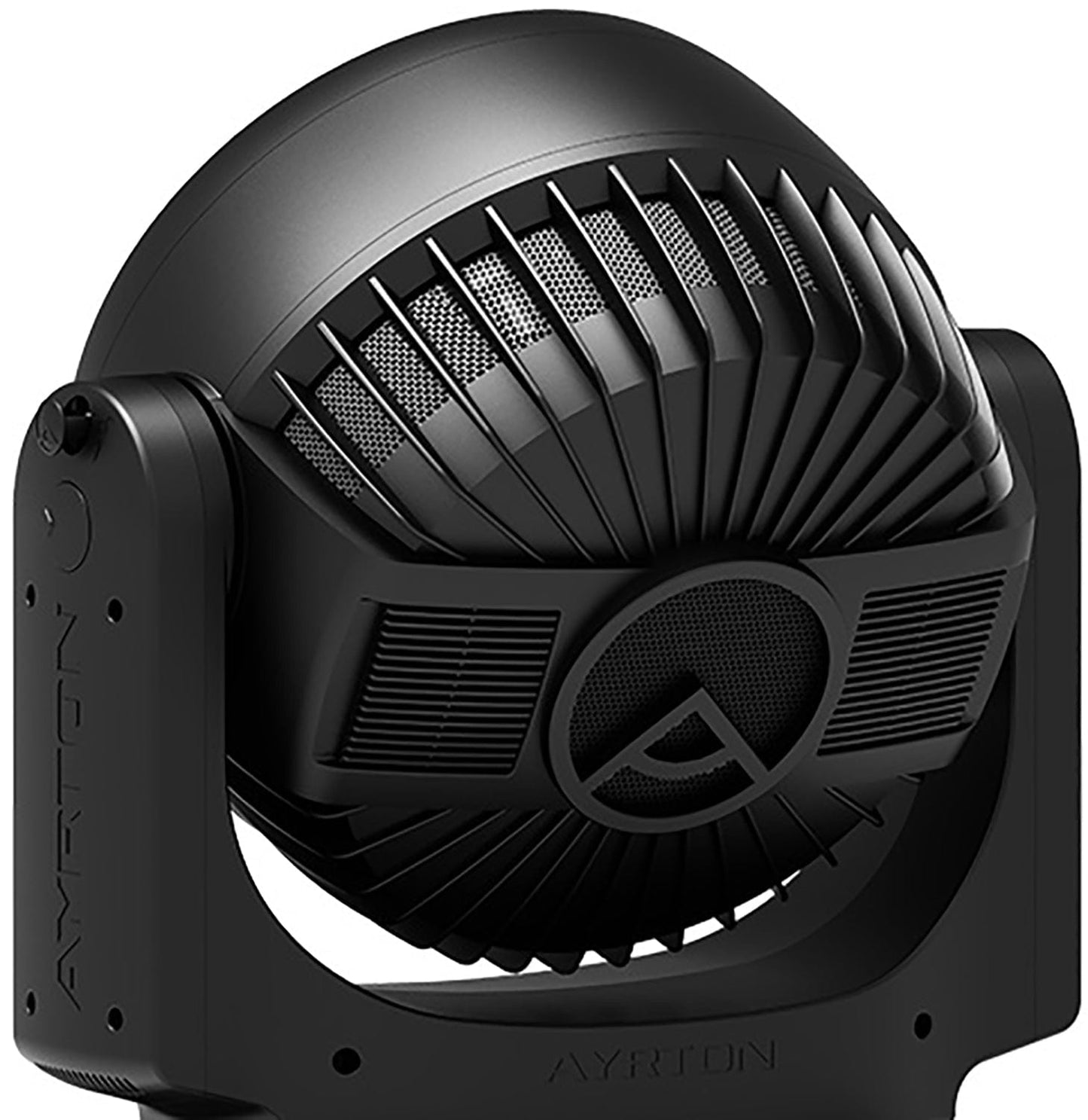

Ayrton Argo 6 FX RGBW 13,000 Lumens IP65 LED Wash Moving Head Light
Bringing you a sensation of freedom has always been one of AYRTON’s most sincere promises. For the first time in its history, AYRTON is launching a weather-sealed effects luminaire that offers as much creative potential indoors as outside – ARGO 6 FX.
This luminaire presents a minimalist design incorporating features for total protection against harsh weather with easier internal access. The anti-reflective treated glass window guarantees an optimal visual result and offers increased performance. The placement of pan & tilt motors in the base and head of the luminaire avoids the constraint of weatherproofing the yoke arms. A new submersible ventilation system in a non-waterproof compartment allows for optimal cooling. Due to a new composite alloy, reduction in thickness of the parts, an optimised cooling system, simplified lens guidance, and integration of low-density optical components, AYRTON has been able to reduce overall weight by 20%.
Features:
- 19 RGBW LED
- Lumens 13,000
- Zoom aperture 4° to 56°
- Frontal Lens 19 x 50 mm
Specifications:
- Optics:
- 2 elements 14:1 zoom high-resolution optic system
- Beam aperture: 4° to 56°
- Fast motorized linear zoom
- 19 truncated edges 50 mm frontal lenses
- 280 mm front lens cluster
- Light Source:
- 19 x 1,000 lumens RGB+W High-Power LED sources
- Total luminaire output: up to 13,000 lumens
- CRI: up to 86
- Rated life: L70: up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
- Movement:
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
- PAN and TILT automatic repositioning
- Moving-head range: infinite pan & tilt rotation
- Colors:
- Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index
- Uniform light beam with no color shadows, and rich saturated and pastel color-hues
- 4.29 billion colors (8-bit resolution)
- Virtual color wheel, including most usuals white color temperature presets
- Effects:
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- Individual control of each pixels
- LiquidEffectTM
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection
- IP65 powerCON TRUE1 IN / OUT connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable or wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet™ & sACN protocol through Ethernet cable
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 26 to 127 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 950 W maximum
- Cooling System:
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of aluminium and steel metal plates
- Base in die-cast aluminium
- Heatsinks in aluminium
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Front window in Glass IK08 rated
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating System:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45°C (113°F)
- Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
- Minimum usage distance: 2.0 m (6.56 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B: 2018
- Size:
- Product: 436 x 536 x 280 mm (l x h x d)
- Flight-case foam: 485 x 560 x 350 mm (l x h x d)
- Weight:
- Product: 23.2 kg
- Optics:
- 2 elements 14:1 zoom high-resolution optic system
- Beam aperture: 4° to 56°
- Fast motorized linear zoom
- 19 truncated edges 50 mm frontal lenses
- 280 mm front lens cluster
- Light Source:
- 19 x 1,000 lumens RGB+W High-Power LED sources
- Total luminaire output: up to 13,000 lumens
- CRI: up to 86
- Rated life: L70: up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
- Movement:
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements
- PAN and TILT automatic repositioning
- Moving-head range: infinite pan & tilt rotation
- Colors:
- Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index
- Uniform light beam with no color shadows, and rich saturated and pastel color-hues
- 4.29 billion colors (8-bit resolution)
- Virtual color wheel, including most usuals white color temperature presets
- Effects:
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- Individual control of each pixels
- LiquidEffectTM
- Dimmer / Strobe:
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation
- White or color strobe effect, with speed adjustment from 1 to 25 flashes per second
- Software Features:
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
- Hardware Features:
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 etherCON RJ45 IN / OUT connectors for ArtNet™ connection
- IP65 powerCON TRUE1 IN / OUT connectors for power connection
- Control:
- DMX 512 protocol, through DMX cable or wireless system
- DMX-RDM compatible
- Stand-alone mode and Master/Slave modes
- ArtNet™ & sACN protocol through Ethernet cable
- Local control panel, with LCD display
- Choice of 3 DMX modes (from 26 to 127 DMX channels)
- Power Supply:
- Electronic supply with active PFC
- 100 to 240 Volts – 50/60Hz
- Power: 950 W maximum
- Cooling System:
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable auto, stage & studio ventilation modes
- Safety protection against temperatures excesses
- Housing:
- Moving-head skeleton made of aluminium and steel metal plates
- Base in die-cast aluminium
- Heatsinks in aluminium
- Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Front window in Glass IK08 rated
- Two-side handles for transportation
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
- Installation:
- Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: four 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
- Operating System:
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45°C (113°F)
- Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
- Minimum usage distance: 2.0 m (6.56 ft)
- Compliance:
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
- US (Safety & EMC):
- UL 1573
- FCC Part 15, Subpart B: 2018
- EU (EMC & LVD):
- Size:
- Product: 436 x 536 x 280 mm (l x h x d)
- Flight-case foam: 485 x 560 x 350 mm (l x h x d)
- Weight:
- Product: 23.2 kg
