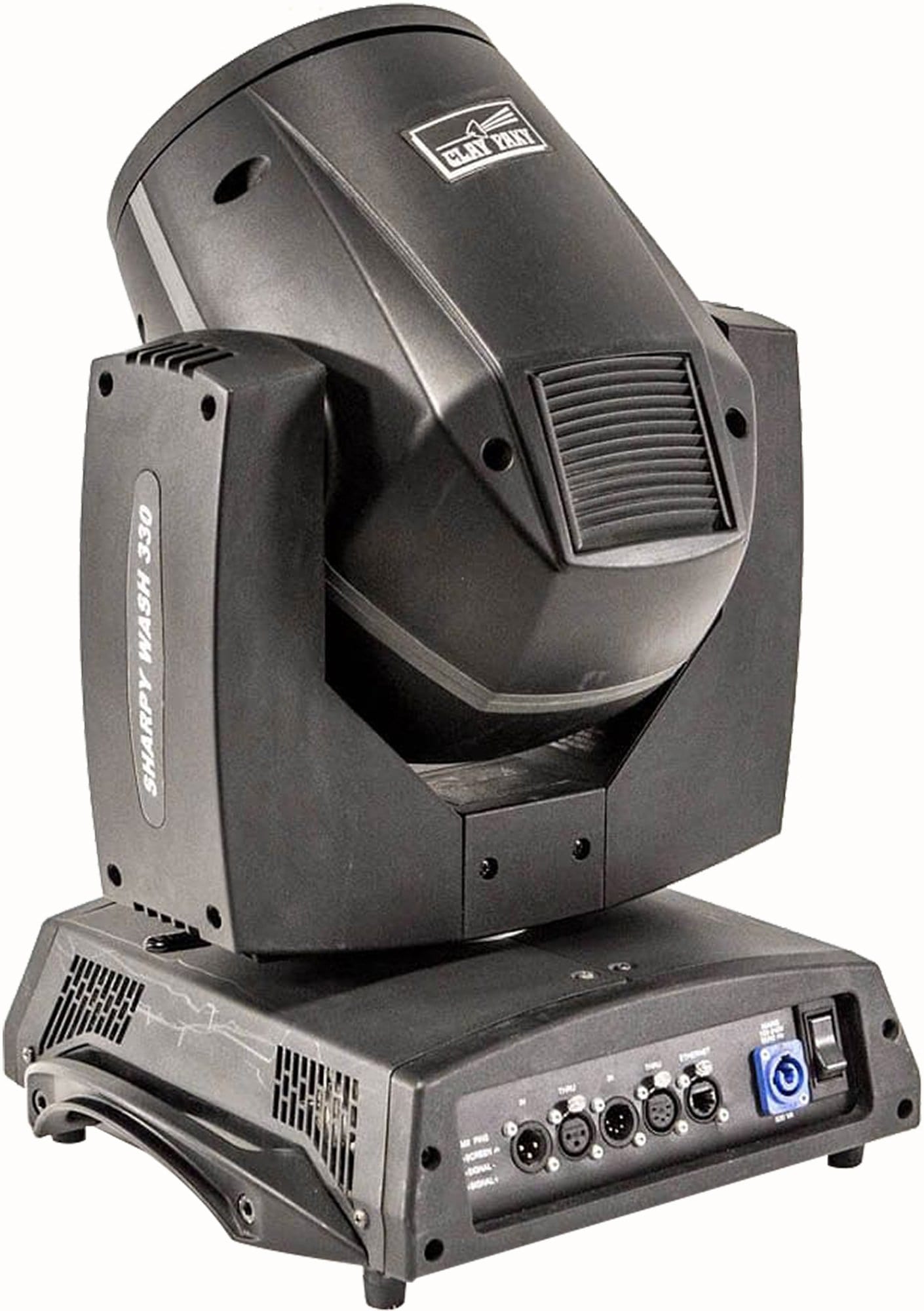

Clay Paky Sharpy Wash 330 Wash Arc Moving Light

Clay Paky Sharpy Wash 330 Wash Arc Moving Light

Sharpy Wash 330 is an extraordinarily compact, lightweight 330 W washlight, with the luminous efficiency, graphic and optical performance of a 1000W fixture. It is extremely silent and quick, and fitted with a complete CMY color system, special colors, 6.5°-48° zoom, mechanical dimmer, beam shaping filter and motorized top-hat. At minimum beam angle, the Sharpy Wash 330 produces a beam like its brother Sharpy: the two lights are designed to work perfectly together. It is an eco-friendly light, allowing considerable running and consumption cost savings.

Features:

• New 330W Lamp (8,000 K 1,500 h)
• Equalling the light output of a 1,000 Watt luminaire
• Small, lightweight and easily transported: only 18.5 Kg (40.8 lbs)
• Adjustable beam angle from 6.5° to 48°
• Motorised Top Hat (Clay Paky patented)
• CMY Color System + 11-color wheel + open
• Rotating beam shaper
• High speed movements and effects
• Frosted, smooth mechanical dimmer
• High speed Stop/Strobo effect
• Soft-edge Filter + heavy frost filter
• New, high-performance electronics

Specifications:

• POWER SUPPLIES
  • 115/230V 50/60 Hz
• INPUT POWER
  • 520VA at 230V 50Hz
• LIGHT SOURCE
  • Discharge lamp with a short arc burner in a reflector system
    • Output lamp power: 330W
    • Color temperature: 8,000 K
    • Nominal luminous flux: 16,000 lm
    • Average rated life: 1,500 h
• OPTICS
  • Front-Fresnel lens (patented spiral lens)
  • Zoom: from 6.5° to 48°
• COLOR SYSTEM
  • CMY Color System
  • Color wheel with 11 fixed colors + open
• EFFECTS SECTION
  • Smooth and frosted mechanical dimmer
  • High speed Stop/Strobo effect
  • Soft-edge Filter
  • Heavy Frost Filter
  • Rotating and indexable beam shaper
• CONTROL AND PROGRAMMING
  • Max 20 DMX 512 control channels
  • DMX protocol signal: USITT DMX 512
  • Art-Net / RDM
  • Display: Graphic LCD backlit b/w Display
  • Pan/Tilt Resolution: 16 bit
  • Movement control: vectorial
  • DMX signal connection: 3 and 5 pole XLR input and output
  • Software upload through DMX input
• BODY
  • Aluminium structure with die-cast plastic cover.
  • Two side handles for transportation.
  • Device locking PAN and TILT mechanisms for transportation and maintenance.
• MOVING BODY
  • Travel:PAN = 540°TILT = 240°
  • Resolution:PAN=2.11°; PAN FINE=0.008
  • TILT=0.98°; TILT FINE=0.0004°
  • Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit
• ELECTRONICS
  • Long life self-charging buffer battery
  • Function reset from the lighting desk
  • ON/OFF lamp control from the lighting desk
  • "AUTOTEST" function from menu
  • Electronic monitoring with status error
  • Cooling system monitoring
  • DMX level monitoring on all channels
  • Internal data transmission diagnostics
  • Firmware upgrade with no power
  • Firmware upload from another fixture
• SAFETY DEVICES
  • Bipolar circuit breaker with thermal protection.
  • Automatic break in power supply in case of overheating or failed operation of cooling system.
  • Forced ventilation with axial fans.
• WORKING POSITION
  • Any Working Position
  • Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• CE MARKING
  • In conformity with the European Directives:
    • 2014/35/EU Safety of electrical equipment supplied at low voltage (LVD)
    • 2014/30/EU Electromagnetic Compatibility (EMC)
    • 2011/65/EU Restriction of the use of certain hazardous substances (RoHS)
    • 2009/125/EC EcoDesign requirements for Energy-related Products (ErP)
• ETL
  • This product is available with cETLus Listed Mark, that complies with the UL 1573 and CSA C22.2 No. 166 standards
• WEIGHT
  • 18.5 kg (40.8 lbs)
