Audient ASP510 Surround Mix/Monitor Controller

Audient ASP510 Surround Mix/Monitor Controller

The ASP510 Surround Sound Controller integrates seamlessly with any console or DAW based surround sound set-up to provide comprehensive monitoring control and record functions for multiple surround sound formats.

What's in the box?Sleek rack and remote system

The ASP510 is a remote operated rack unit connected via a standard CAT-5 cable. All signal processing and operation takes place in a 1RU rack unit, which has a whisper quiet fan - ideal for being located in your control room without disturbing your listening environment. Controlled by an ergonomic and compact remote designed to sit on your console or desktop without cluttering your setup, ASP510 will fit effortlessly into your workflow and will quickly provide you with intelligent control over your mixes.

5 Preset Monitor Formats: Switch between speaker setups effortlessyThe ASP510's remote lets you quickly switch between 5 preset monitor formats; Film, LCRS, Stereo, Mono & Aux, enabling you to quickly check your mixes in various surround setups. Making it the perfect tool for post production work in any industry. A Bypass option is also included allowing you to quickly switch to your consoles or DAW's main stereo outputs.

Transparent Sound: Mix with confidenceThe ASP510 provides an incredibly clean and transparent signal path enabling you to monitor your mixes with incredible accuracy. Whether you work in film/post production, authoring, games/audio visual production or sound design, ASP510's accurate translation of your audio will enable you to mix with confidence and take your mixes to the next level.

Monitor Control: Take control of your audioASP510 integrates seamlessly with your consoles or DAW's monitoring functions, including solo, dim and talkback, giving you complete control over your monitoring. ASP510 also enables you to isolate/cut individual speakers within your surround or stereo setups - perfect for accurately pinpointing elements of your mix. You can also connect with your consoles or DAW's direct stereo outputs and work in stereo by simply hitting the bypass button on the ASP510 remote giving you complete flexibility in whichever format you are working in.

Supports Multiple Surround SourcesThe ASP510 allows three surround (up to 5.1) and three stereo sources to be monitored. The provision of multiple Surround and Stereo inputs, as well as dedicated Encoder/ Decoder inserts and comprehensive console interfacing, make it easy to configure ASP510 to suit your requirements.

Integrate with your console: Monitor control made easyThe ASP510 will effortlessly integrate with your recording console, providing effective and intuitive monitoring control in an ergonomic package. Whether you're working on film scores, foley or simply mixing in 5.1, the ASP510 is the perfect surround sound monitoring solution for your studio.

Pink Noise Generator: Dial in your setup instantlyQuickly calibrate your speakers and get the best out of your room/setup with ASP510's built in pink noise generator, no need to use an external plugin.

Built to Last: Quality Deserves ProtectionASP510 has been designed to last, from its all-metal construction and high grade component selection, ASP510 will stand up to countless mixing sessions and nights in the studio.

Features:

• 6 Preset Monitor Formats
• Supports three 5.1 Surround and three Stereo Formats
• 8 Inputs from Console ( 5.1 SURRound plus Stereo)
• 8 Outputs to Recorders ( 5.1 SURRound plus Stereo)
• Switchable Encoder/Decoder Insertion
• 6 Speaker Outputs, each with Level Trims
• Individual Speaker Cut/Isolate Functions
• Universal Console Solo and Monitor System Interface
• User Definable Monitor Reference and DIM Levels
• Internal Pink Noise Generator
• Guide Track Input
• Ergonomic Control Surface

Specifications:

• Levels:
  • Nominal levels: +4dBu
  • Maximum input: +24DBu
  • Maximum output: +24dBu
• Frequency Response:
  • Any input to any output: +/-0.25dB 22Hz - 22kHz
• THD and Noise:
  • Any input to any output:
• Noise:
  • At speaker outputs:
• Crosstalk:
  • (Source/source): >80dB 1kHz
• Channel Tracking:
  • +/-0.25dB: 0 to -24dB

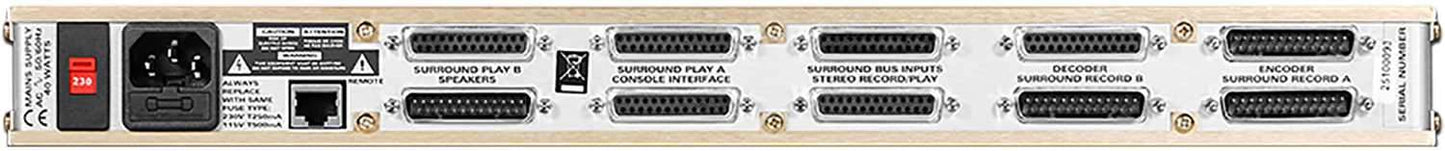

System Interfaces

• 25-pin D-type females for:
  • 5.1 surround play A and B
  • 5.1 surround bus inputs
  • Stereo record/transmission & play
  • Console interface
  • Decoder
• 25-pin D-type make for:
  • 5.1 surround record A and B
  • Speaker outputs
  • Encoder
  • RJ45 for remote/rack link
• Size:
  • Rack unit: 1u x 280mm
• Power Requirements: 115/230v @50/360Hz (50VA)
• Remote:
  • Width: 230mm
  • Depth: 120mm
  • Height: 40mm
