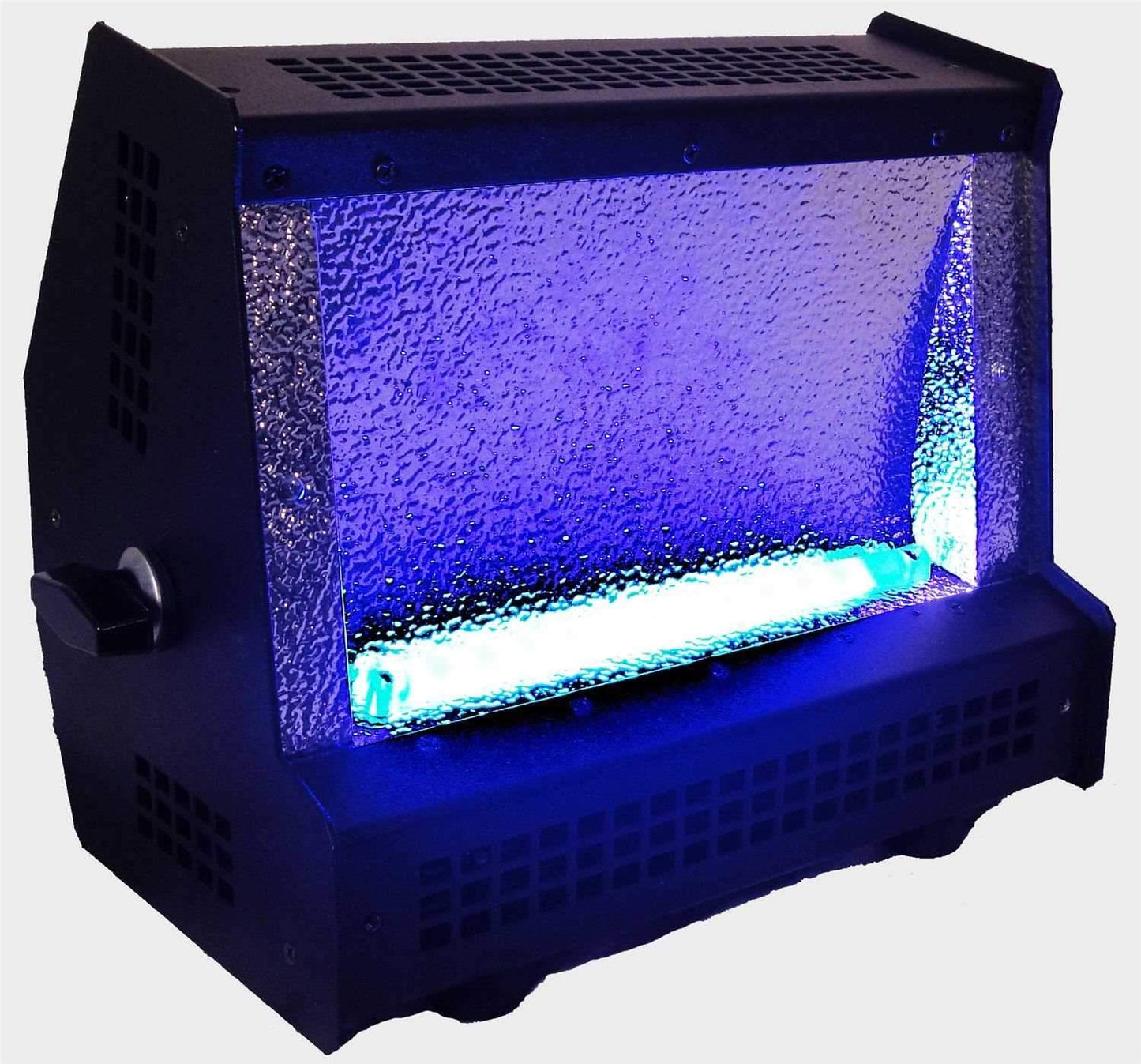

Altman SS-CYC-100 100 Watt Red, Blue, Green, White Wash Light
The Spectra Cyc is a 100 Watt cyclorama/wall wash luminaire utilizing red, green, blue and whiteLED emitters. Designed for theatrical and architectural applications, the Spectra Cyc blends colorsvia a patent pending LED lens which reduces pixelization from direct view. The on board power supplyallows for direct power & data input which can be daisy chained thru 6 units. Designed for use on 8’centers maximum, individual units can be linked side by side for greater saturation of light. TheSpectra Cyc is compatible with both DMX and RDM protocols, and comes complete with a library ofpre-programmed single colors to various color mixes. Units are made for floor or Sky-Cycapplications.
Features:- Red, Green Blue & White Luxeon Rebel LED’s
- Patent pending LED blending lens
- A-Symmetrical reflector, computer designed for broad even light distribution
- On board multi-voltage power supply; 100-240 VAC
- Feed thru data & power capabilities
- Compatible with DMX and RDM protocols THEATRICAL/ARCHITECTURALLIGHTING
- Push button addressing
- Pre-programmed modes for fixed colors, timed color changes and strobes.
- Laser Cut sheet aluminum housing
- Weight: Approx; 11 lbs. (4.99 kg)
- ETL, cETL & CE listed
- Made in the USA
- Materials: Construction employs all corrosion-resistant materials and hardware.
- Housing: Lightweight aluminum fabrication.
- Light Engine: Luxeon Rebel LED’sâ€" 100 Watts Max at full RGBA
- Reflector: Proprietary curve, specular aluminum
- Rating: Multi-Voltage; 100-240 volt AC operation
- Data Ports: 1 Male & 1 Female flush mount 5 Pin XLR
- Power Cable: 6’ total length w/ molded Edison plug
- AC Out: Flush mount female Edison for feed thru power to other
- Spectra Cyc units only. Max 6 x Spectra Cyc’s per power daisy chain
- Fuse: 10amp push button circuit breaker.
- Finish: Black, White or Silver TGIC polyester, electrostatic application.
- Custom colors available
- Weight: Approx. 11 lbs. (4.99 kg)
- Accessories (Optional):
- SS-YOKE-*: One Cell yoke kit w/ hardware kit
- 510: Malleable Iron Pipe Clamp
- SS-CYC-SHEILD: Spectra CYC LED safety shield
- SS-CYC-LINK-*: Spectra CYC Link plates w/ hardware
- SC-36-BK: 36†Black Safety Cable w/ spring clip
