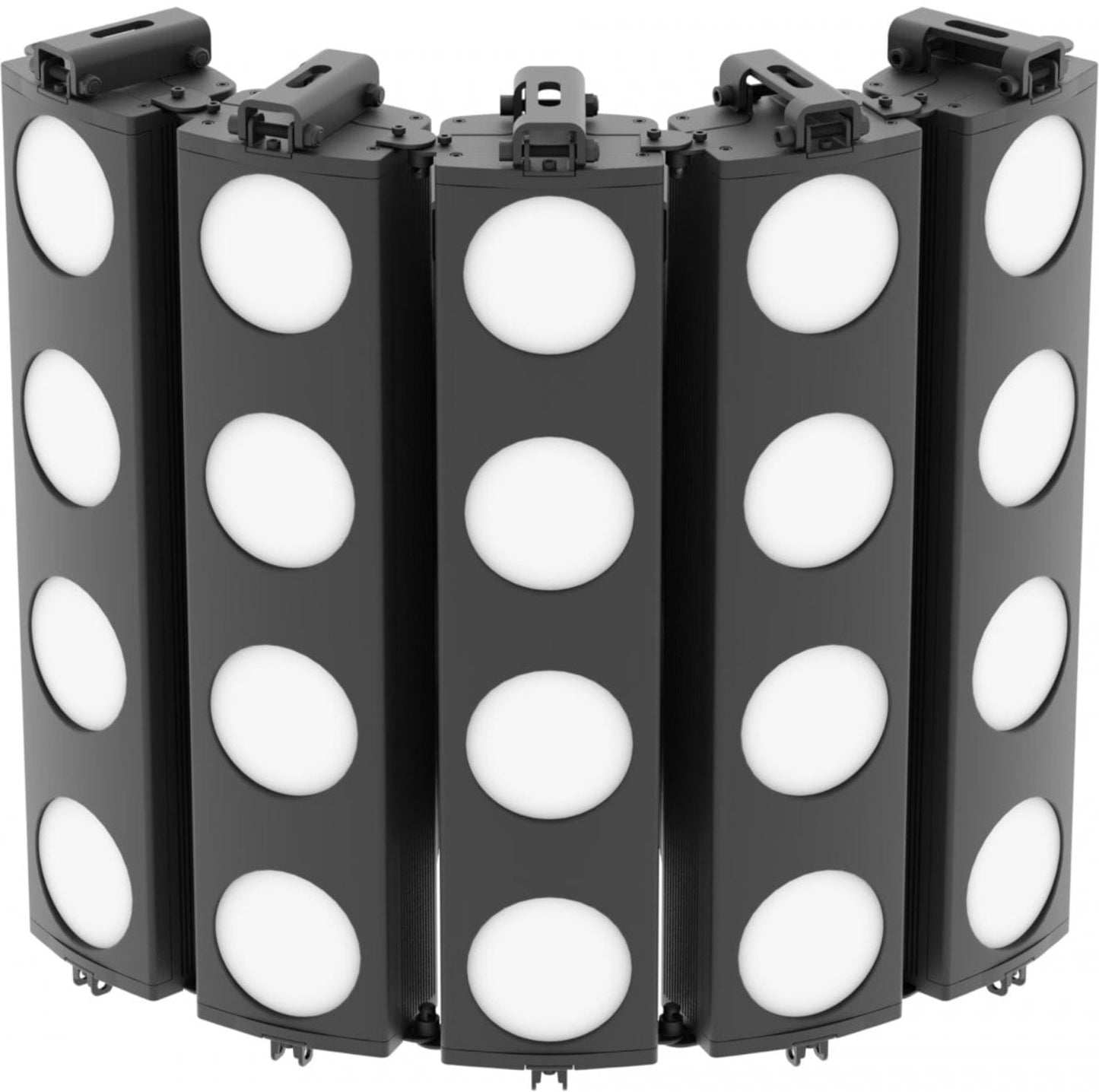

ProLights Arena COB 4 Halo IP65 RGBW Linear Blinder
IP65 multifunctional tungsten + amber shift LED blinder
ArenaCob 4Halo is a true LED replacement for a traditional 4 cell DWE blinder. Each of the individually controllable 84 W LED 'HALO' cells deliver a powerful tungsten-like punch that has been designed to perform in even the largest environments.
Main features:
Four powerful LED 'Halo' cells with color temperature shift on dimming for true tungsten emulation. Individual cell control for effects with sizing and spacing matching traditional linear blinders. IP65 housing for the most demanding environments with a virtually limitless 'building block' rigging system
LIGHT SOURCE:
Source: white COB 4x72 W + amber 16x3W
CCT: 3.000
Luminous flux: (24°) 10'529 lm n- (40°) 13'837lm
Lux: (24°) 6'330lx @3 m
Lux: (40°) 3'364lx @3 m
CRI: > 92
Source life expectancy: > 50.000 h
OPTICS:
Beam angle: 24°
Field angle: 42°
Pixel pitch: 150mm / 5.91''
Lens diameter: 100mm / 3.94''
Lens type: parabolic reflector in combination with HD fresnel lens
Additional optics: 40°(opt) - 32° without magnetic lens
Other: magnetic replacement of front lens
COLOUR SYSTEM:
Colour mixing: tungsten 3.000 + amber shift
CCT: amber shift activation by DMX
ELECTRONICS:
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 28 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
ELECTRICAL:
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 331W
Max power consumption (at 120V): 341W
Output (at 230V): 11 units on a single power line
Output (at 120V): 6 units on a single power line
PHYSICAL
IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: passive cooling and fan-free
Suspension and fixing: bracket for hanging and positioning
Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 619x167x264mm / 24.37''x6.57''x10.39''
Weight: 8kg / 17.64lb
