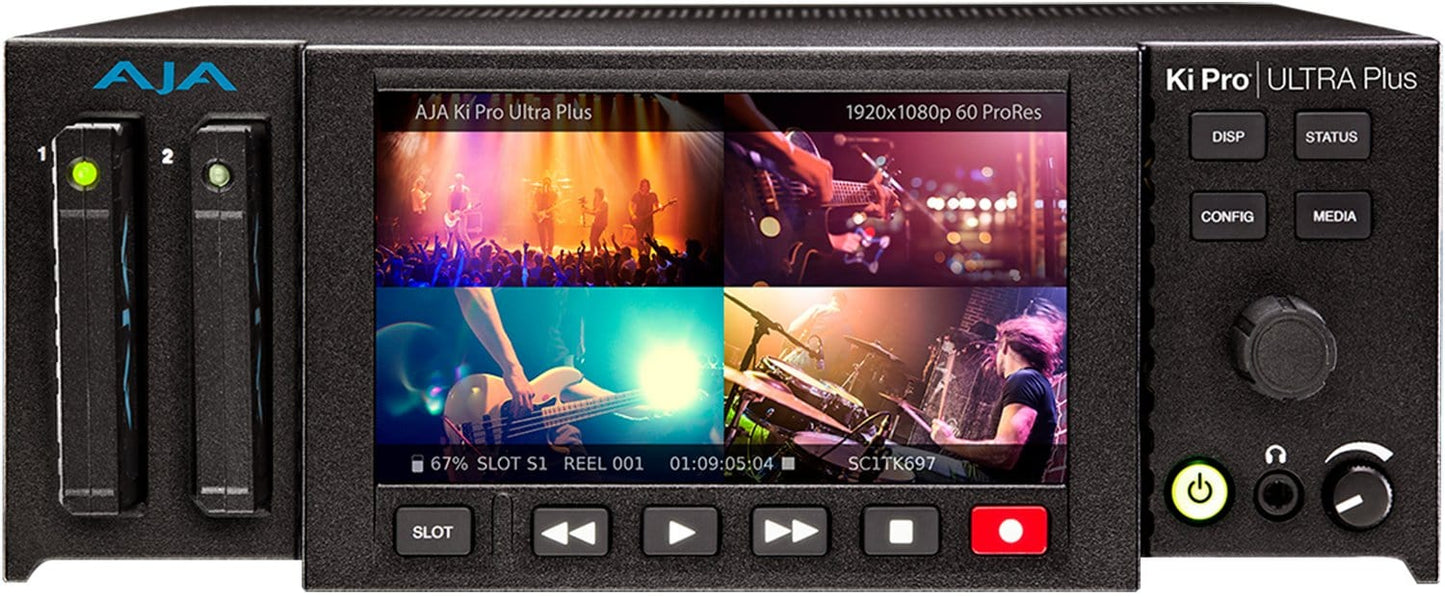

AJA KIPROUP KI Pro Ultra Plus Recorder 4K

AJA KIPROUP KI Pro Ultra Plus Recorder 4K

Ki Pro Ultra Plus is a Multi-Channel Apple ProRes recorder offering up to 4-Channels of simultaneous HD recording, or in Single-Channel mode a 4K/ UltraHD/2K/HD Apple ProRes® or Avid DNxHD® MXF recorder and player. Ki Pro Ultra Plus supports the latest connectivity, as well as large raster high frame rate workflows, including 4K 60p. 3G-SDI, fiber and full HDMI 2.0 digital video connectivity and a wealth of analog and digital audio connectivity answers any project’s demand for efficient, powerful and flexible workflows.

Features:

• Multi-Channel HD Recording
• Ki Protect

Specifications:

• Hardware
  • Up to 4-Channels of simultaneous HD recording (Pak 2000/Pak 1000/ Pak 512 (R1)/Pak 256 (R1/R2) only)
  • Apple ProRes 444 (XQ), Apple ProRes 444, Apple ProRes 422, Apple ProRes 422 (HQ), Apple ProRes 422 (LT), and Apple ProRes 422 (Proxy)—4K/UltraHD, 2K, HD implemented in hardware
  • Avid DNxHR HQX, Avid DNxHR SQ, and Avid DNxHR LB—implemented in hardware
  • Avid DNxHD HQX, Avid DNxHD SQ, and Avid DNxHD LB—implemented in hardware
  • MXF with OP1A support for DNxHD encoded files, bringing true Avid MXF compatibility for HD workflows
  • 3G-SDI input (4x BNC connectors)
  • 3G-SDI output (4x BNC connectors)
  • 3G-SDI Fiber input (4x LC connectors) (optional)
  • 3G-SDI Fiber output (4x LC connectors) (optional)
  • HD-SDI monitor output (1x BNC connector)
  • HDMI Input v2.0 (up to 4K 60p 4:2:2 YCbCr or 4:4:4 RGB)
  • HDMI Output v2.0 (up to 4K 60p 4:2:2 YCbCr or 4:4:4 RGB)
  • 8-ch AES Audio Input (1/2x DB-25 TASCAM pinout)
  • 8-ch AES Audio Output (1/2x DB-25 TASCAM pinout)
  • 8-ch Analog Audio Input (1x DB-25 TASCAM pinout)
  • 8-ch Analog Audio Output (1x DB-25 TASCAM pinout)
  • LTC Input (1x BNC connector)
  • LTC Output (1x BNC connector)
  • Reference Loop (2x BNC connectors)
  • RCA Audio output (2x mono RCA connectors)
  • Headphone jack (1x 3.5mm Jack)
  • 10/100/1000 Ethernet LAN (1x RJ-45 connector)
  • RS-422 Machine control (1x DB9)
  • 1280 x 720p TFT LCD display (for UI information and confidence monitoring)
  • Dual 12 Volt AC/DC power (2x 4-pin XLR connectors)
• Software
  • Internal web server for remote control configuration via LAN
  • Both HFS+ and ExFAT file systems supported
  • Continuous rollover record only limited by the size of your media
  • Capture and playback of CEA 708 Closed Captioning data as QuickTime movie tracks
  • Download and upload of files via LAN
  • 20 Preset registers for storing and recalling system preset configurations
  • Alarms to alert users to conditions that may need attention
