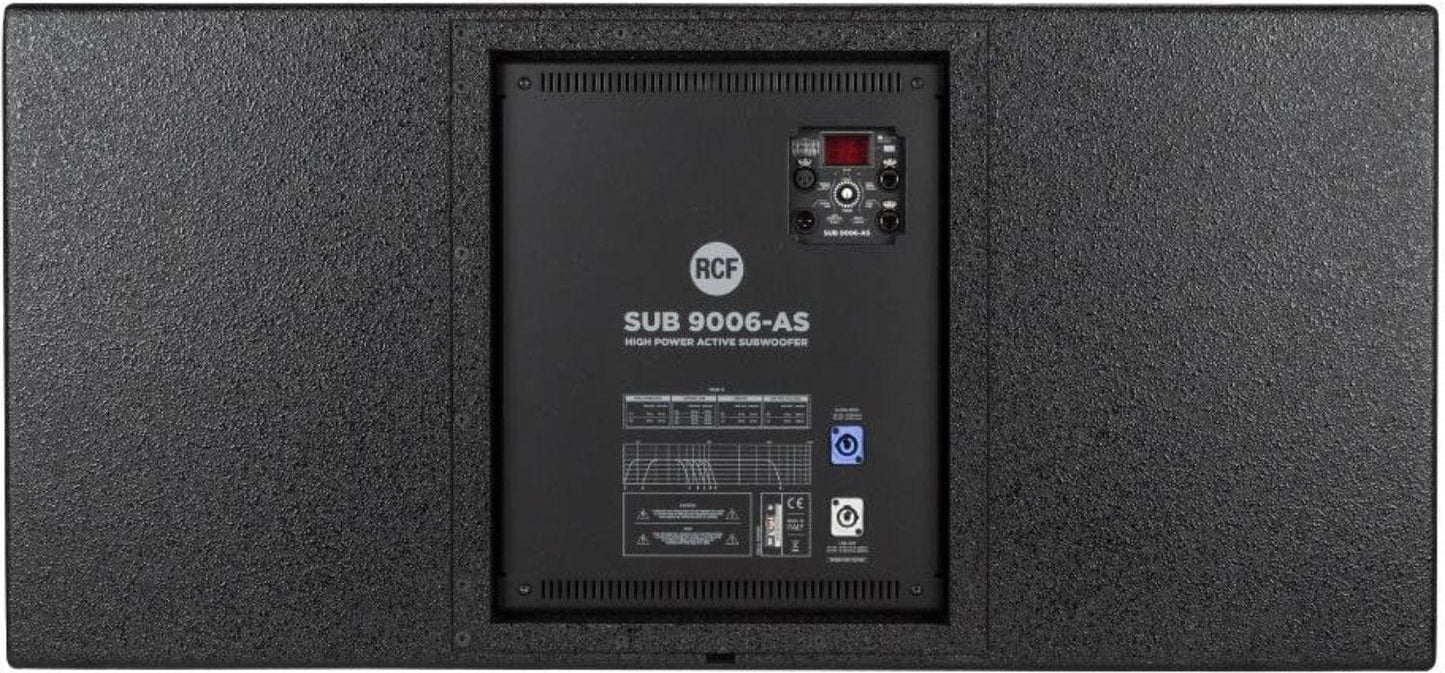

RCF 13000494 SUB 9006-AS Active High Power Subwoofer

The SUB 9006-AS is one of the most powerful 2x18” subwoofers in the field of live sound. Featuring two high-power hyper-vented 18” neodymium woofers with 4.0” inside-outside voice coils, this cabinet delivers a serious amount of low frequencies. Powered by a 7200 W digital amplifier, the SUB 9006-AS can perform in the most demanding situations. The housing of the SUB 9006-AS matches the RCF D-Line HDL50-A and HDL10-A array systems, enabling to build stacked systems in a perfect combination.

Features:

• 7200 Watt Peak power - 3600 Watt RMS
• 142 dB max SPL
• 30 Hz - 400 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• RDNet remote control
• Delay control
• Baltic birch cabinet

Specifications:

• Acoustical Specifications:
  • Frequency Response: 30 Hz ÷ 400 Hz
  • Max SPL @ 1m: 142 dB
• Transducers:
  • Woofer: 2 x 18'' neo, 4.0'' v.c
• Input/Output Section:
  • Input Signal: bal/unbal
  • Input Connectors: XLR, RDNet Ethercon
  • Output Connectors: XLR, RDNet Ethercon
  • Input Sensitivity: +4 dBu
• Processor Section:
  • Hi-Pass Frequencies: 30Hz, 40Hz
  • Low-Pass Frequencies: Variable from 50Hz to 400Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Gain, EQ, Preset, Phase switch, Output Delay Settings
  • RDNet: Yes
• Power Section:
  • Total Power: 7200 W Peak, 3600 W RMS
  • Low Frequencies: 7200 W Peak, 3600 W RMS
  • Cooling: Convection/Forced
  • Connections: Powercon IN/OUT
• Physical Specifications:
  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: 2 x M20
  • Handles: 8 side
  • Grille: Steel
  • Color: Black
• Size:
  • Height: 558 mm / 21.97 inches
  • Width: 1188 mm / 46.77 inches
  • Depth: 785 mm / 30.91 inches
  • Weight: 86 kg / 189.6 lbs
