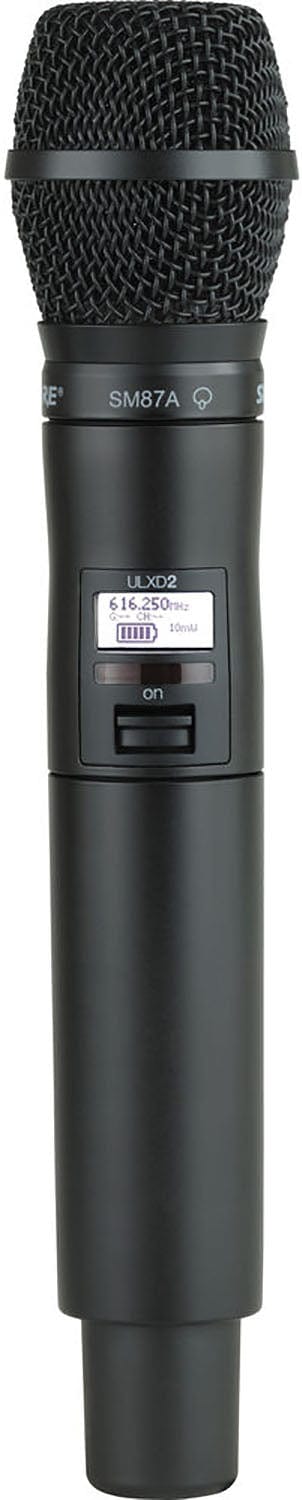

Shure ULXD2/SM87 Digital Handheld Transmitter with SM87 Capsule - H50 Band

The Shure ULXD2/SM87 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with the SM87A supercardioid condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that rejects off-axis background noise, helping to reduce feedback.

Features:

  • For ULX-D Digital Systems
  • SM87A Supercardioid Condenser Mic
  • Interchangeable Capsule Design
  • Automatic Gain Adjustment
  • 1/10/20mW RF Output Power
  • Mute Mode, Backlit LCD
  • Secure AES-256 Encryption
  • Networked Intelligent Charging
  • 12 Hr with SB900A Rechargeable Battery

Specifications:

  • RF Frequency Band: H50 (534 to 598 MHz)
  • RF Bandwidth: 64 MHz
  • Frequency Step Size: 25 kHz
  • RF Channel Scanning: Auto-Scan
  • Max Operating Range: 328.1' / 100 m
  • Sample Rate/Resolution: 48 kHz / 24-Bit
  • Latency: < 2.9 ms
  • Encryption: AES 256
  • Modulation: Proprietary
  • Transmitter:
    • Transmitter Type: Handheld
    • RF Output Power: 1 / 10 / 20 mW (Switchable)
    • Audio I/O: No
    • Muting: Off/On Switch
    • Gain Range: 0 to 21 dB (3 dB Steps)
    • Sync Method: IR
    • Antenna: 1 x Internal Single-Band Helical
    • Power Requirements: Battery
    • Battery Type:
      • 2 x AA (Included)
      • 1 x Shure SB900A (Not Included, Replaceable)
    • Approx. Battery Life:
      • Med.: 11 Hours (Alkaline)
      • Med.: 12 Hours (Lithium Shure SB900A)
    • Display & Indicators: 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
    • Housing: Aluminum
    • Operating Temperature: 0 to 122°F / -17 to 50°C
    • Storage Temperature: -20 to 165°F / -28 to 73°C
    • Dimensions: 10.1 x 2" / 256 x 51 mm
    • Weight: 12 oz / 340 g
  • Microphone:
    • Microphone Type: Handheld Capsule
    • Sound Field: Mono
    • Capsule: Electret Condenser
    • Polar Pattern: Supercardioid
    • Frequency Range: 50 Hz to 20 kHz
    • SNR: 70 dB
    • Maximum SPL: 147 dB SPL
    • Sensitivity: -52.5 dBV/Pa
    • Dynamic Range: 116.5 dB A-Weighted
  • Packaging Info:
    • Package Weight: 1.45 lb
    • Box Dimensions (LxWxH): 12.7 x 4.9 x 3.5"
