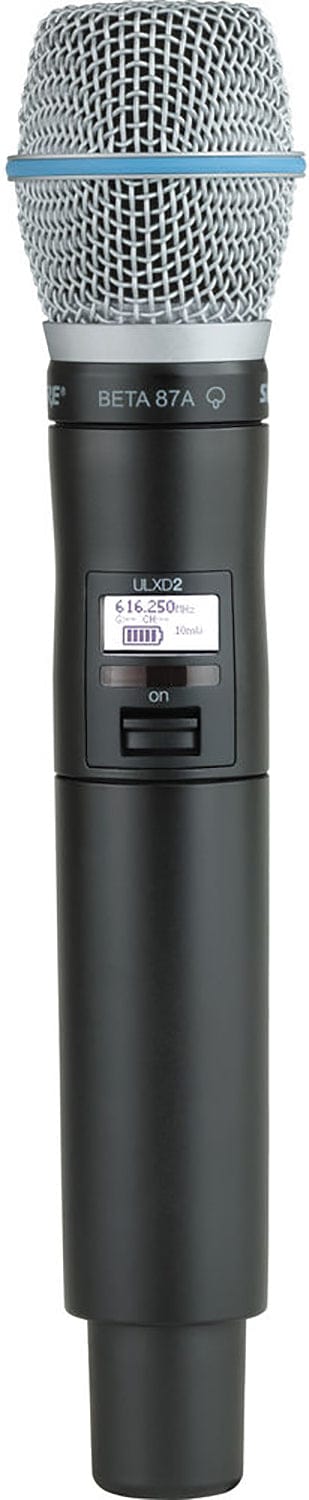

Shure ULXD2/B87A Digital Handheld Transmitter with Beta 87A Capsule - H50 Band
The Shure ULXD2/B87A is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with the Beta 87A supercardioid condenser capsule designed to withstand extreme sound pressure levels, while still delivering a remarkably smooth frequency response for vocal performers and presenters. The capsule features a supercardioid polar pattern that offers excellent rejection of off-axis background noise, helping to reduce feedback.
- For ULX-D Digital Systems
- Beta 87A Supercardioid Condenser Capsule
- Interchangeable Capsule Design
- Automatic Gain Adjustment
- 1/10/20mW RF Output Power
- Mute Mode, Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 12 Hr with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: H50 (534 to 598 MHz)
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.1 x 2" / 256 x 51 mm
- Weight: 12 oz / 340 g
- Microphone:
- Microphone Type: Handheld
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Supercardioid
- Frequency Range: 20 Hz to 20 kHz
- SNR: 70.5 dB A-Weighted
- Equivalent Noise Level: 23.5 dB
- Maximum SPL: 140.5 dB SPL
- THD: 1%
- Impedance: 150 Ohms
- Sensitivity: -52.5 dBV/Pa
- Packaging Info:
- Package Weight: 1.45 lb
- Box Dimensions (LxWxH): 12.756 x 4.882 x 3.465"
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1 x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1 x Backlit LCD (Battery Status, Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.1 x 2" / 256 x 51 mm
- Weight: 12 oz / 340 g
- Microphone Type: Handheld
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Supercardioid
- Frequency Range: 20 Hz to 20 kHz
- SNR: 70.5 dB A-Weighted
- Equivalent Noise Level: 23.5 dB
- Maximum SPL: 140.5 dB SPL
- THD: 1%
- Impedance: 150 Ohms
- Sensitivity: -52.5 dBV/Pa
- Package Weight: 1.45 lb
- Box Dimensions (LxWxH): 12.756 x 4.882 x 3.465"
