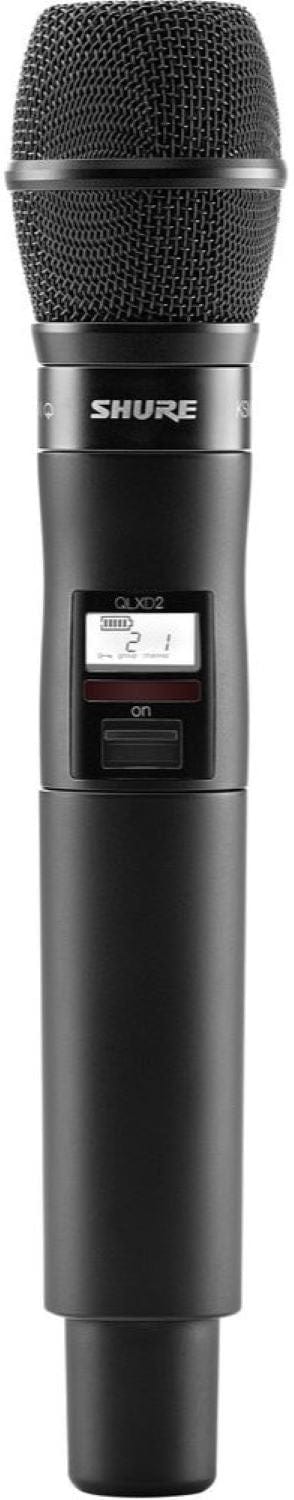

Shure QLXD2/KSM9 Handheld Transmitter with KSM9 Capsule - X52 Band
The Shure QLXD2/KSM9 is a digital handheld wireless microphone transmitter compatible with QLX-D receivers. It comes equipped with a dual-diaphragm KSM9 condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performance. The KSM9 capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The cardioid pattern offers solid gain before feedback, with minimal off-axis coloration, for a warm, full sound. The supercardioid pattern offers increased sound isolation and gain before feedback, an ideal choice for applications where there are high levels of ambient noise, or where multiple instruments or vocalists are close together.
Features:
- For QLX-D Receivers
- KSM9 Condenser Cardioid/Supercardioid
- Interchangeable Capsule Design
- 1040 Selectable Frequencies
- 1/10mW RF Output Power
- Backlit LCD
- Adjustable Gain Control
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 9-Hr AA Batteries
Specifications:
- RF Frequency Band: X52(902 to 928 MHz)
- RF Bandwidth: 26 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 330' / 100.6 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 mW
- Audio I/O: No
- Gain Range: 0 to 21 dB (3 dB Steps)
- Frequency Response: 30 Hz to 20 kHz
- Sync Method: IR
- Antenna: 1x 1/4 Wave
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life: 9 Hours (Alkaline)
- Display & Indicators: 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing: Aluminum
- Dimensions: 2 x 10.1" / 51 x 256 mm
- Weight: 12.2 oz / 347 g (without Batteries)
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Condenser
- Polar Pattern: Cardioid, Supercardioid
- Frequency Range: 50 Hz to 20 kHz
- Maximum SPL: 152 dB SPL
- Sensitivity: -51 dBV/Pa
