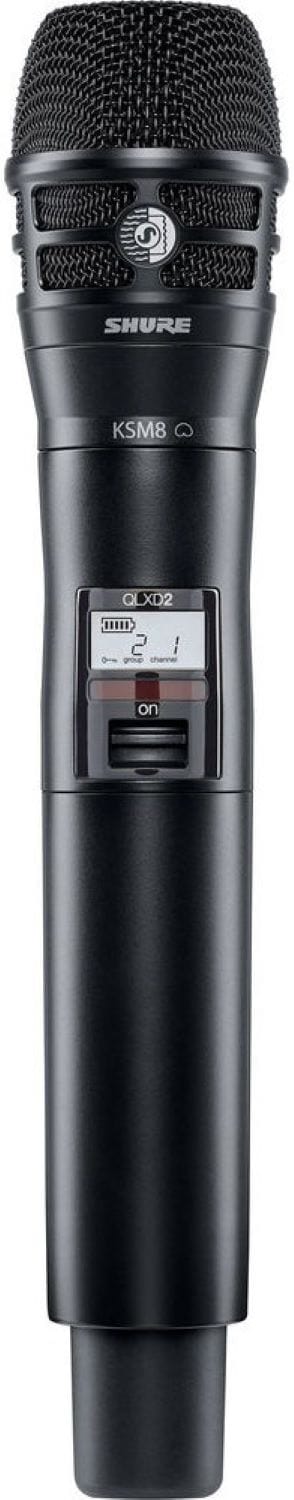

Shure QLXD2/K8B Handheld Transmitter with KSM8 Capsule - H50 Band
The black Shure ULXD2/K8 is a digital handheld wireless microphone transmitter compatible with ULX-D receivers. It comes equipped with a KSM8 dual-diaphragm dynamic capsule that minimizes proximity effect, delivering a consistent sound even when the distance between the mic and the sound source varies. The cardioid polar pattern provides a clean, richly detailed signal with reduced feedback, great for speech and vocals in live venues. With a rugged, yet lightweight aluminum housing, the ULXD2/K8 transmitter delivers pristine audio quality and RF performance, AES 256-bit encryption for secure transmission, and advanced rechargeability options for professional sound-reinforcement applications.
Features:
- For ULX-D Digital Systems
- KSM8 Dynamic Cardioid Mic, Black
- Dual-Diaphragm Capsule
- Interchangeable Capsule Design
- Automatic Gain Adjustment
- 1/10/20mW RF Output Power
- Mute Mode, Backlit LCD
- Secure AES-256 Encryption
- Networked Intelligent Charging
- 12 Hr with SB900A Rechargeable Battery
Specifications:
- RF Frequency Band: H50 (534 to 598 MHz)
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.9 x 2" / 278 x 51 mm
- Weight: 12.3 oz / 348 g
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 40 Hz to 16 kHz
- Sensitivity: -51 dBV/Pa at 1 kHz
- Dynamic Range:
- Hypercardioid: 130.8 dB
- Wide-Angle Cardioid: 131.3 dB
- RF Frequency Band: H50 (534 to 598 MHz)
- RF Bandwidth: 64 MHz
- Frequency Step Size: 25 kHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 328.1' / 100 m
- Sample Rate/Resolution: 48 kHz / 24-Bit
- Latency: < 2.9 ms
- Encryption: AES 256
- Modulation: Proprietary
- Transmitter:
- Transmitter Type: Handheld
- RF Output Power: 1 / 10 / 20 mW (Switchable)
- Audio I/O: No
- Muting: Off/On Switch
- Gain Range: 0 to 21 dB (3 dB Steps)
- Sync Method: IR
- Antenna: 1x Internal Single-Band Helical
- Power Requirements: Battery
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Approx. Battery Life:
- Med.: 11 Hours (Alkaline)
- Med.: 12 Hours (Lithium Shure SB900A)
- Display & Indicators: 1x Backlit LCD (Channel, Group, Mute, RF Output Power, Sync)
- Housing: Aluminum
- Operating Temperature: 0 to 122°F / -17 to 50°C
- Storage Temperature: -20 to 165°F / -28 to 73°C
- Dimensions: 10.9 x 2" / 278 x 51 mm
- Weight: 12.3 oz / 348 g
- Microphone:
- Microphone Type: Handheld Capsule
- Sound Field: Mono
- Capsule: Dynamic
- Polar Pattern: Cardioid
- Frequency Range: 40 Hz to 16 kHz
- Sensitivity: -51 dBV/Pa at 1 kHz
- Dynamic Range:
- Hypercardioid: 130.8 dB
- Wide-Angle Cardioid: 131.3 dB
