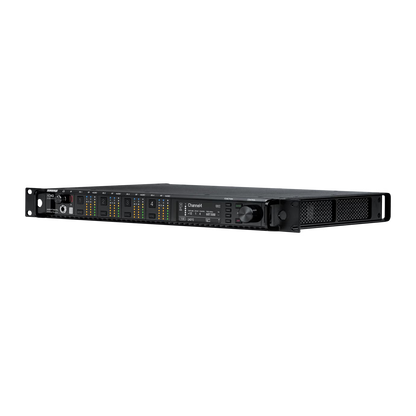

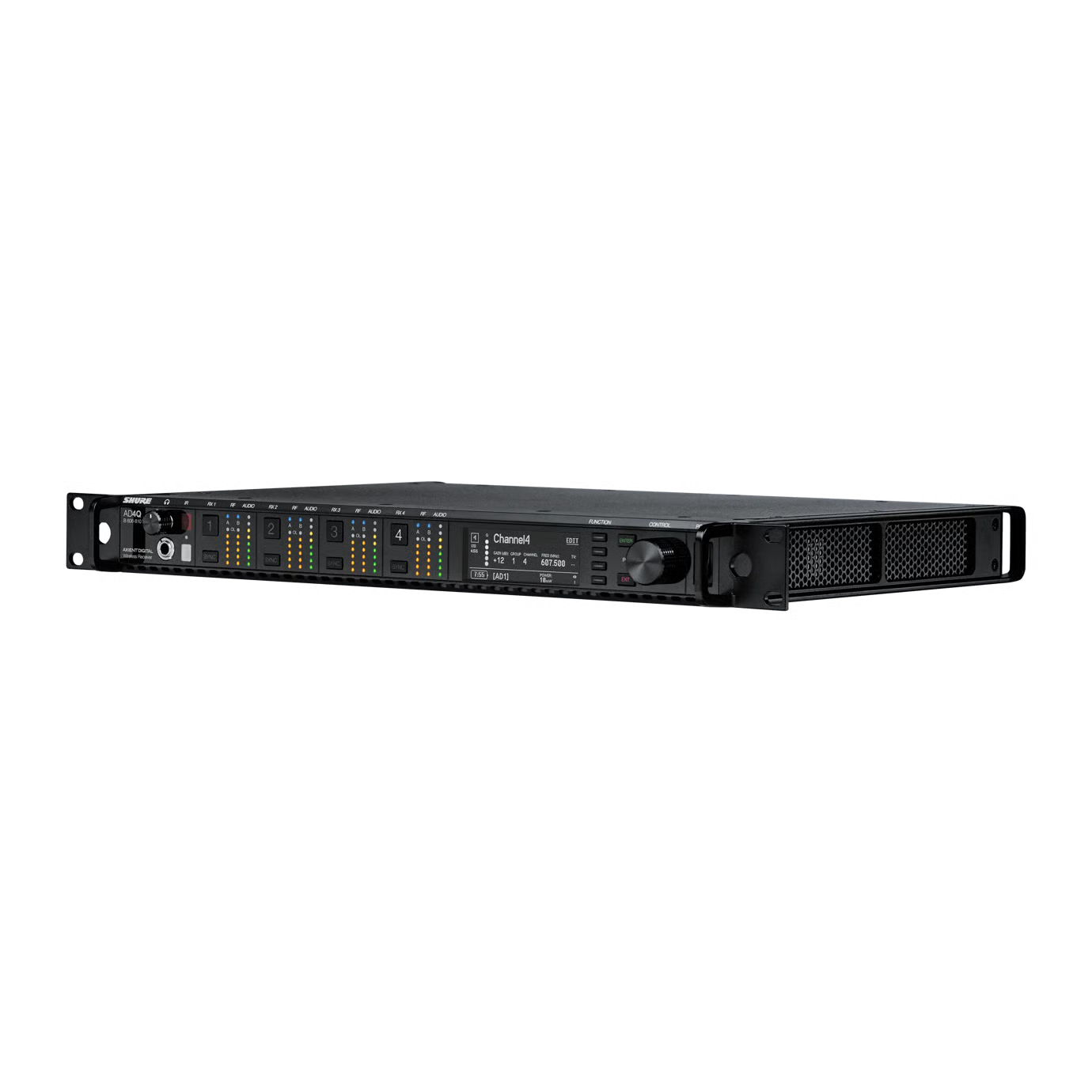

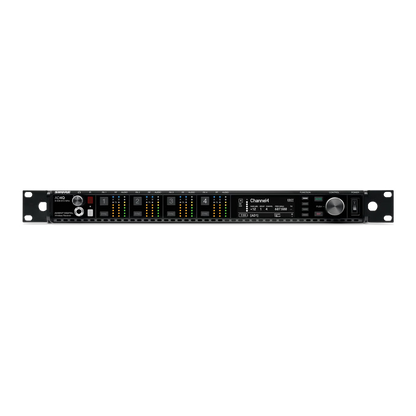

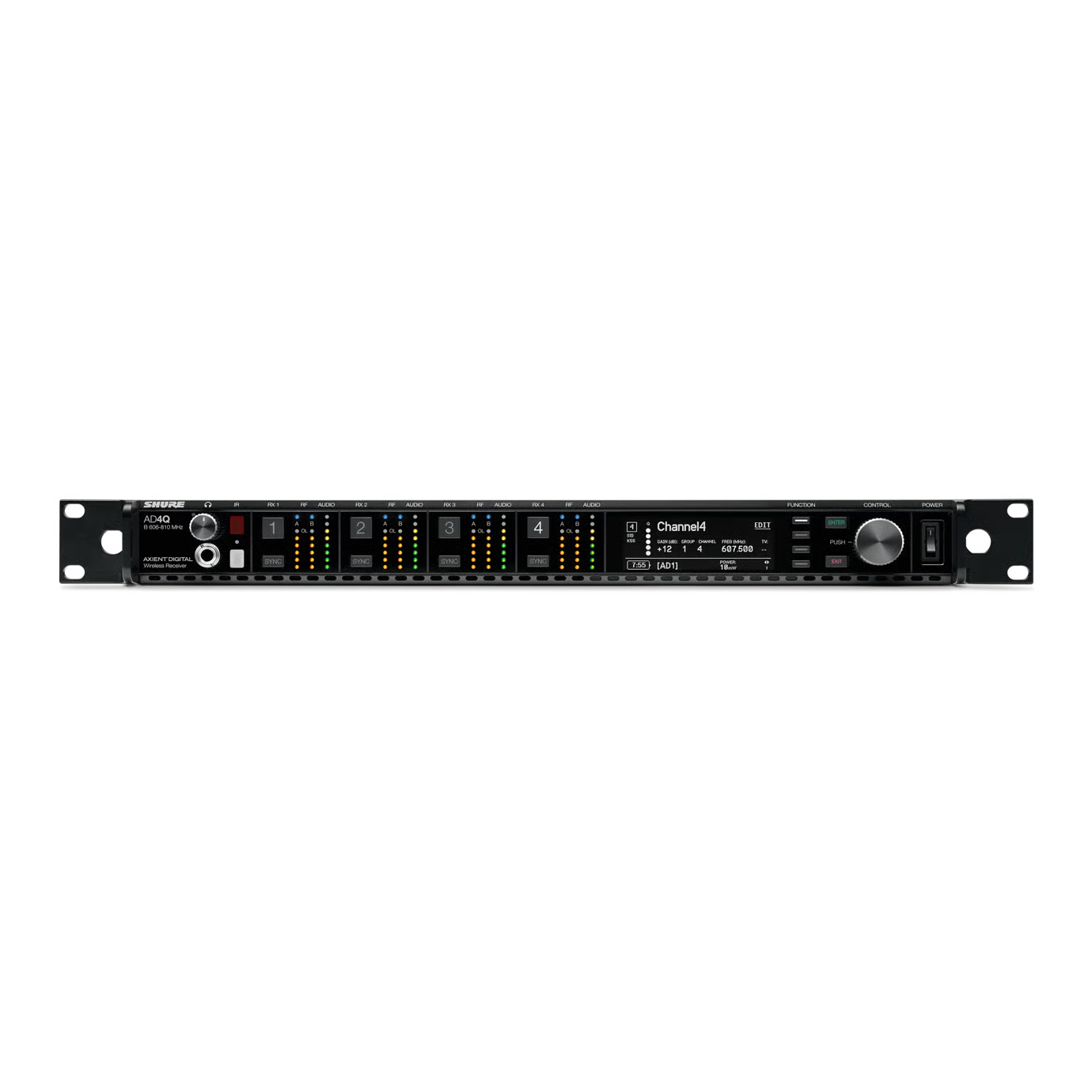

Shure AD4Q Receiver
The AD4Q is a quad receiver engineered for wireless systems, delivering seamless integration with Shure's AD and ADX series transmitters.
This networked solution supports AES3, AES67, and Dante audio outputs, enabling flexible signal routing across complex live sound and studio environments.
The AD4Q Receiver is available with a frequency band of 470-636mhz or 606-810mhz. It can also include a UK Power Supply or stay alone.
Features:
- Works with Axient® Digital Wireless Systems
- Features Quadversity™ mode for extended antenna coverage, switchable XLR and AES3 outputs, and all capabilities of the AD4D Two-Channel Digital Receiver
- Available with or without accessories
- Wide tuning range up to 184 MHz
- True digital diversity reception per channel for drop-out resistance
- Networked control with Wireless Workbench® software and ShurePlus™ Channels iOS app
- Quadversity mode for extended antenna coverage and improved RF signal-to-noise
- Front panel headphone jack enables Dante™ Cue and Dante™ Browse monitoring
- Configurable Ethernet switch for redundant Dante or AES67 digital output

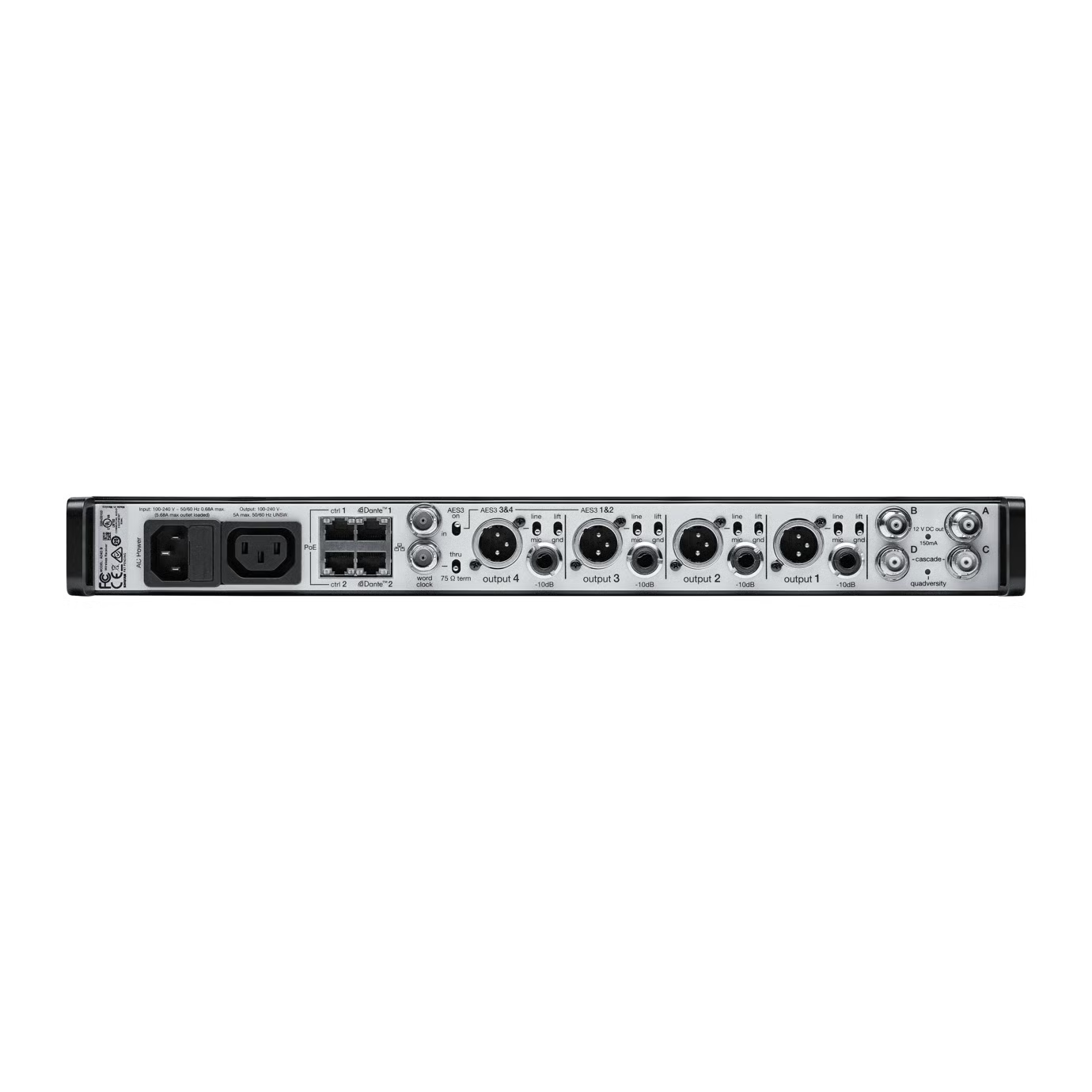

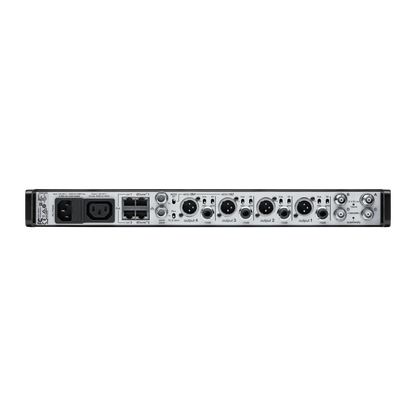

- Switchable XLR and AES3 outputs
- Channel Quality meter displays RF signal-to-noise

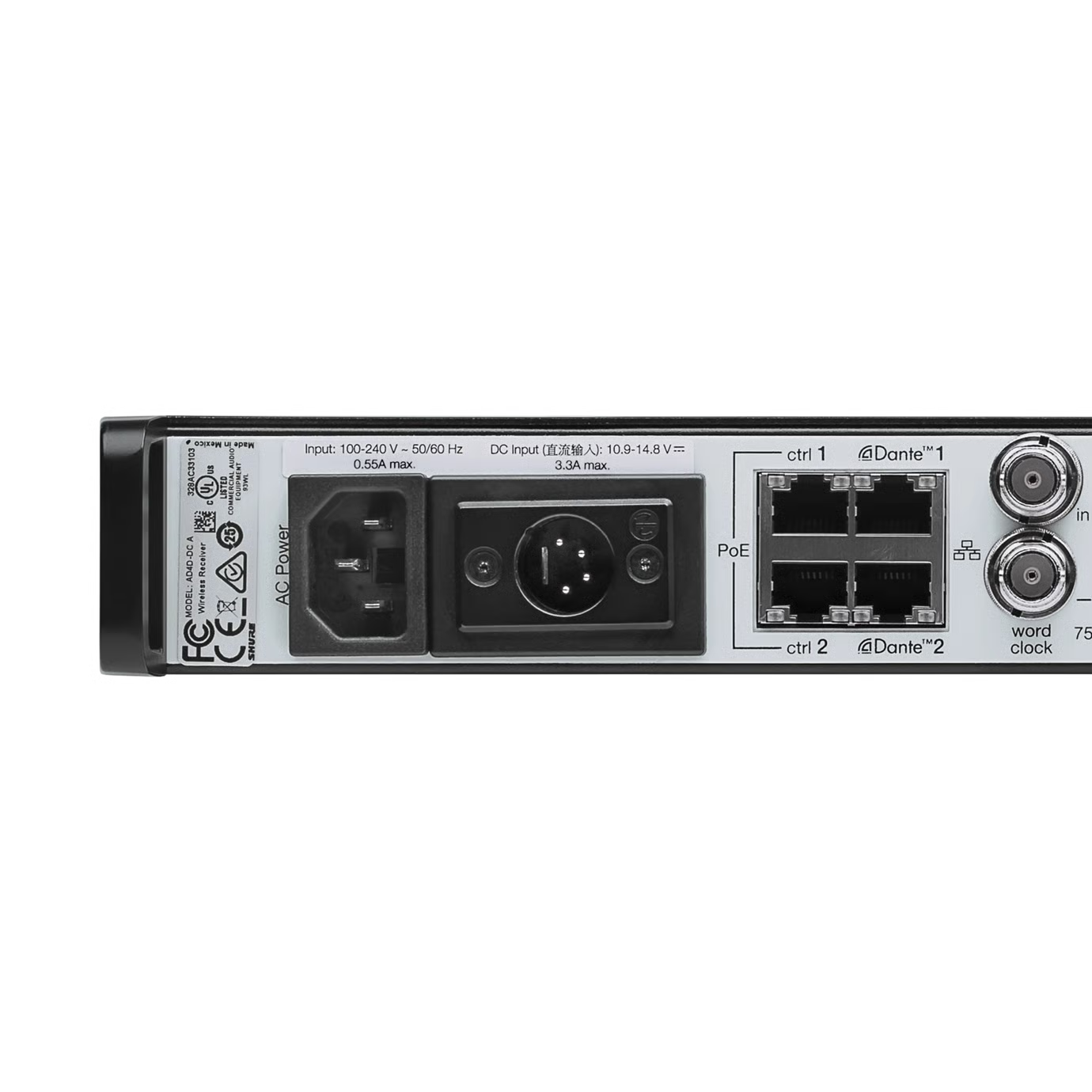

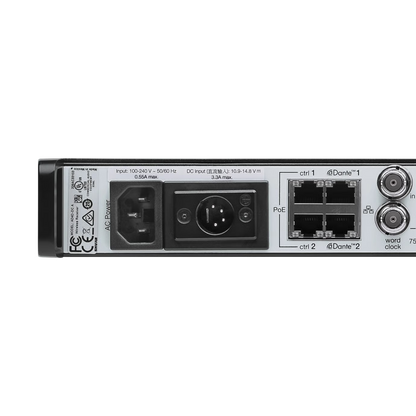

- Locking AC connectors
- DC module version available to support redundant power
