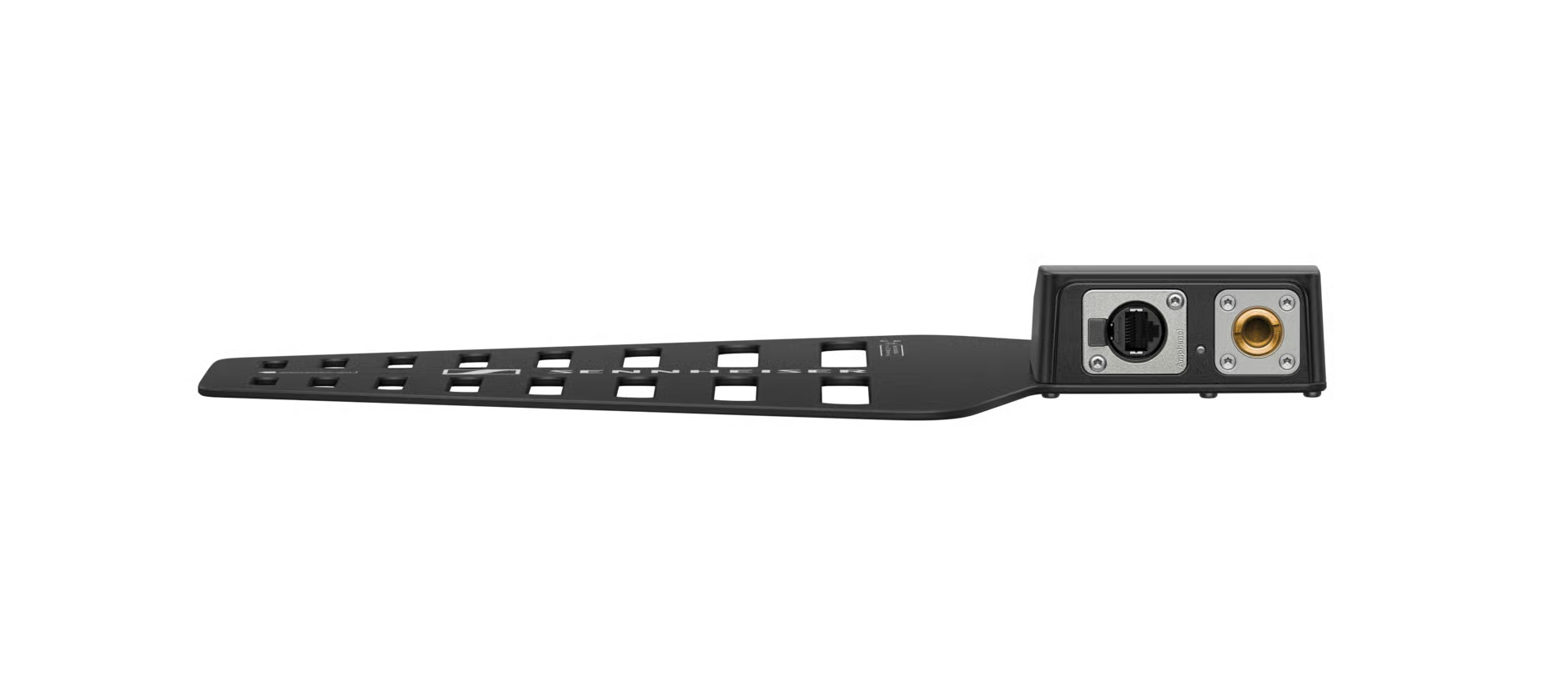

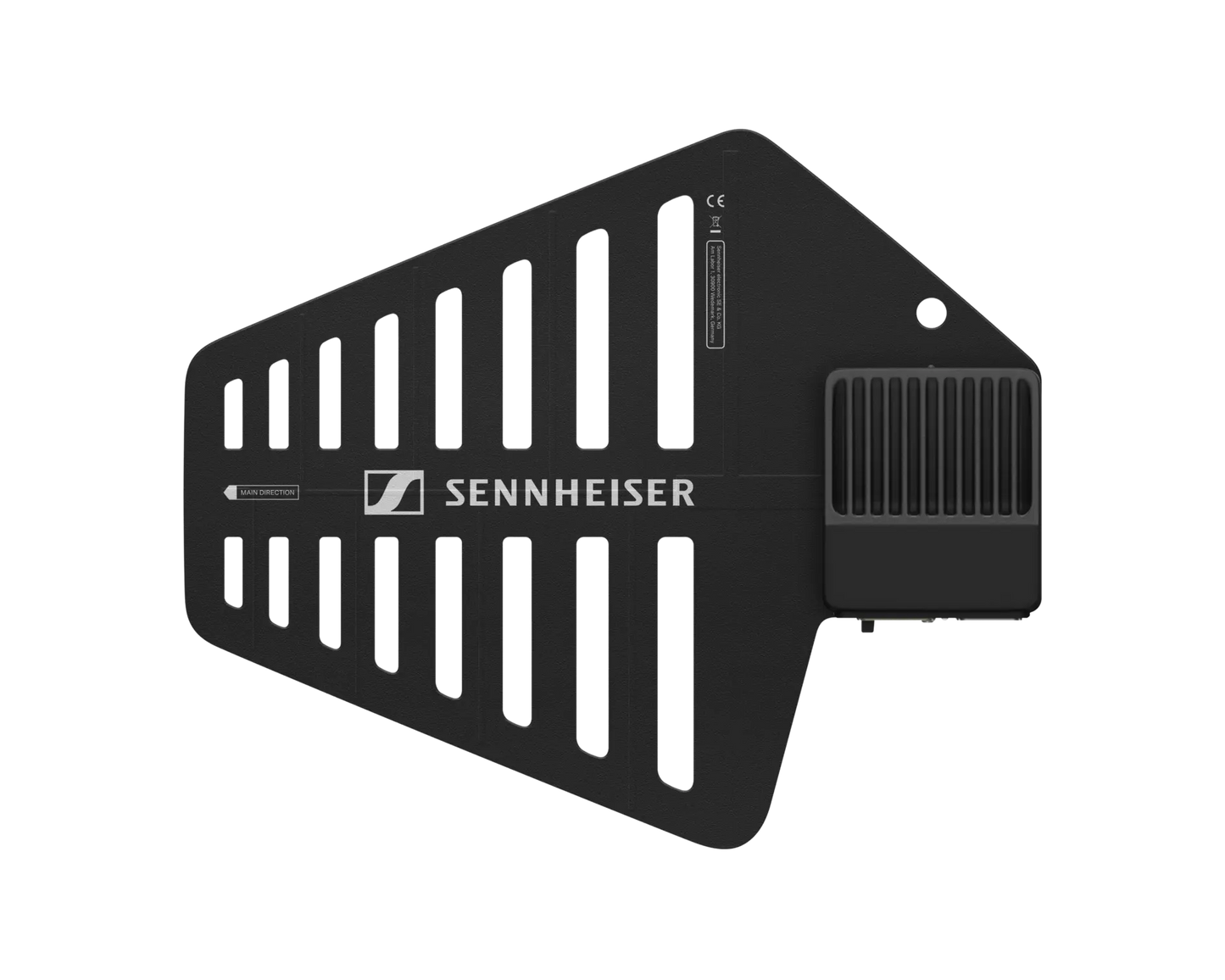

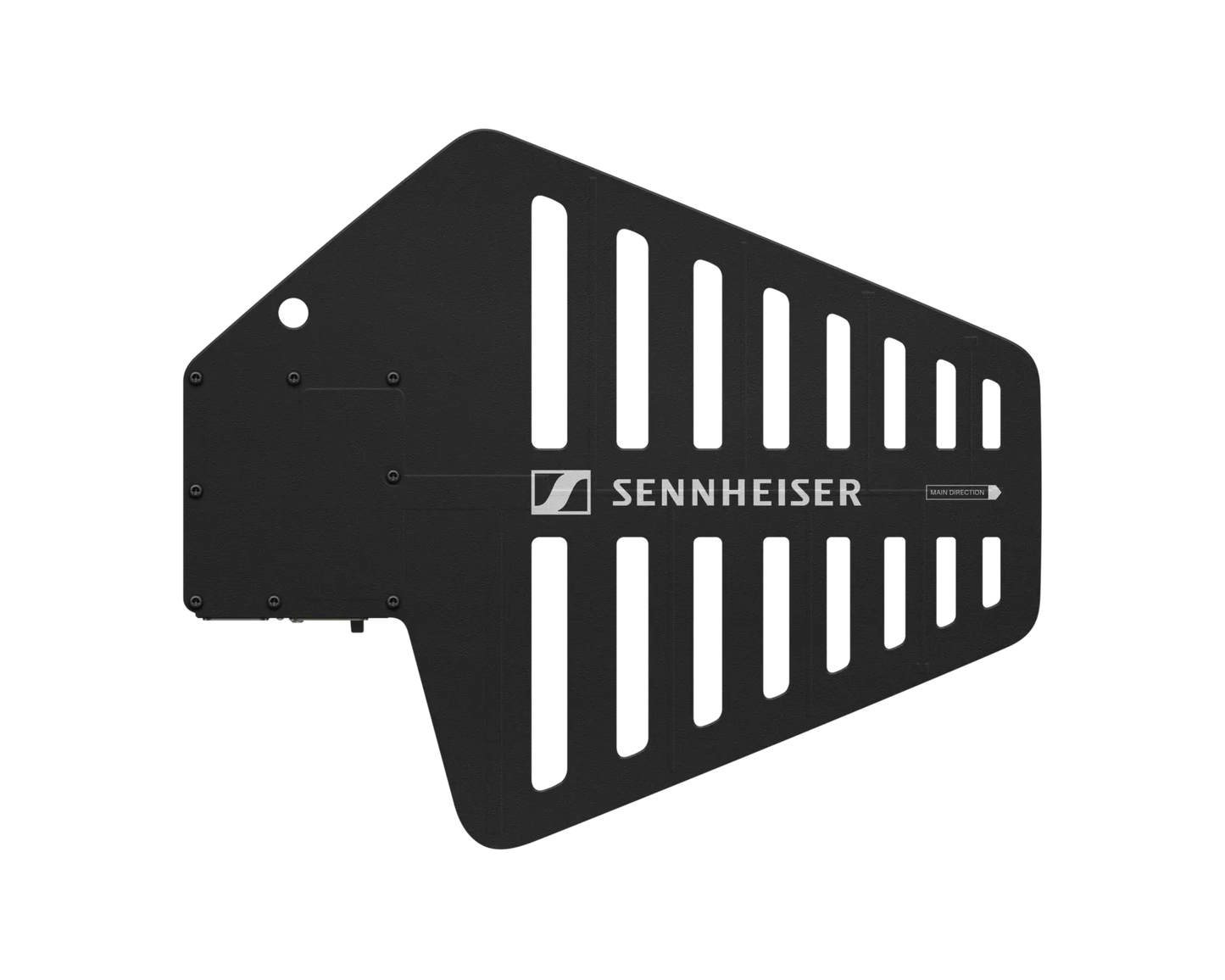

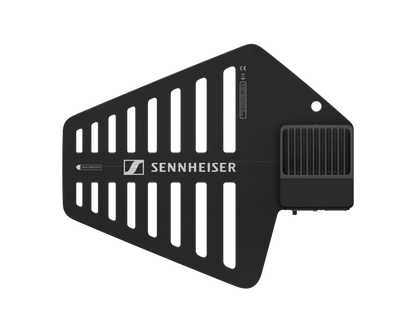

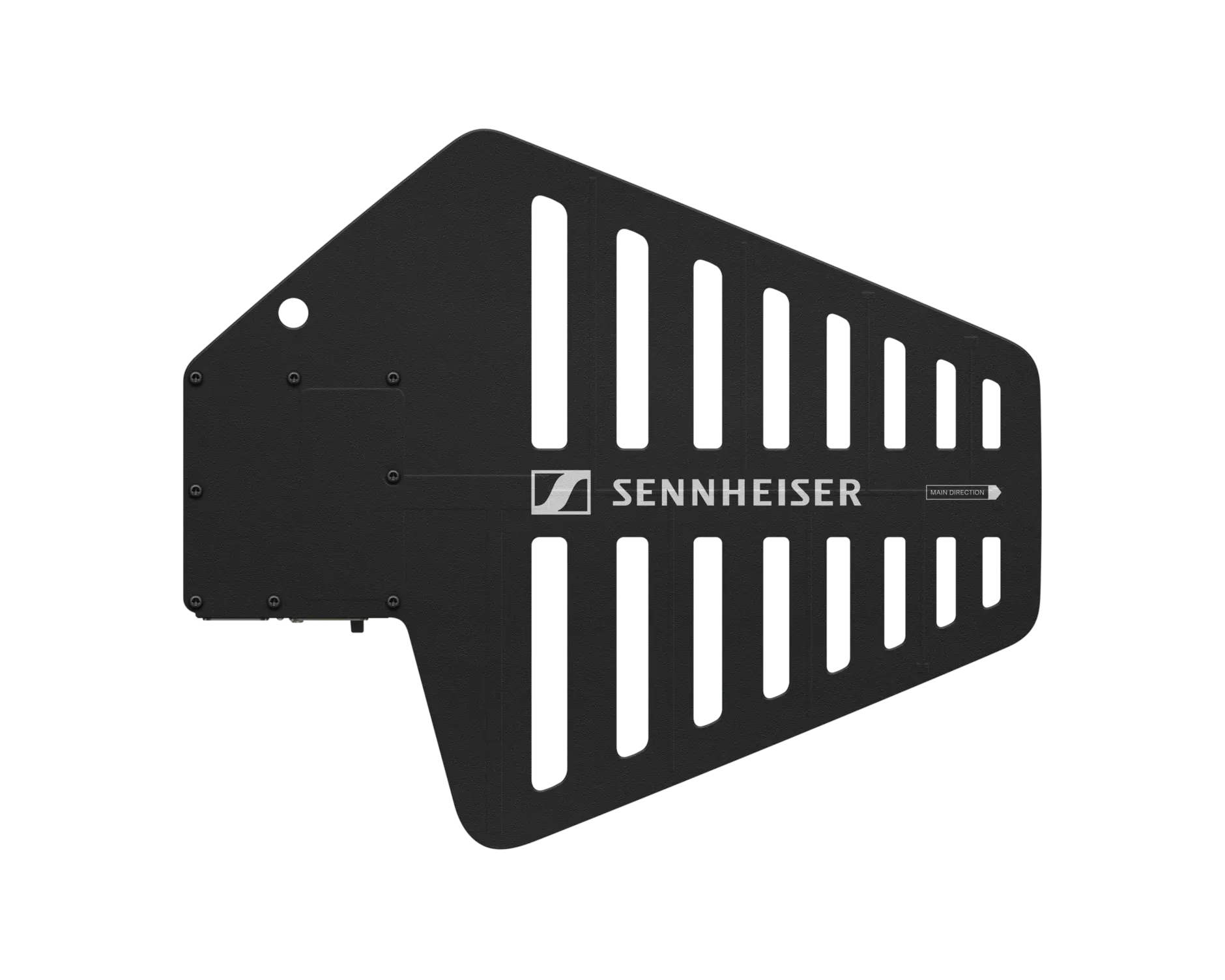

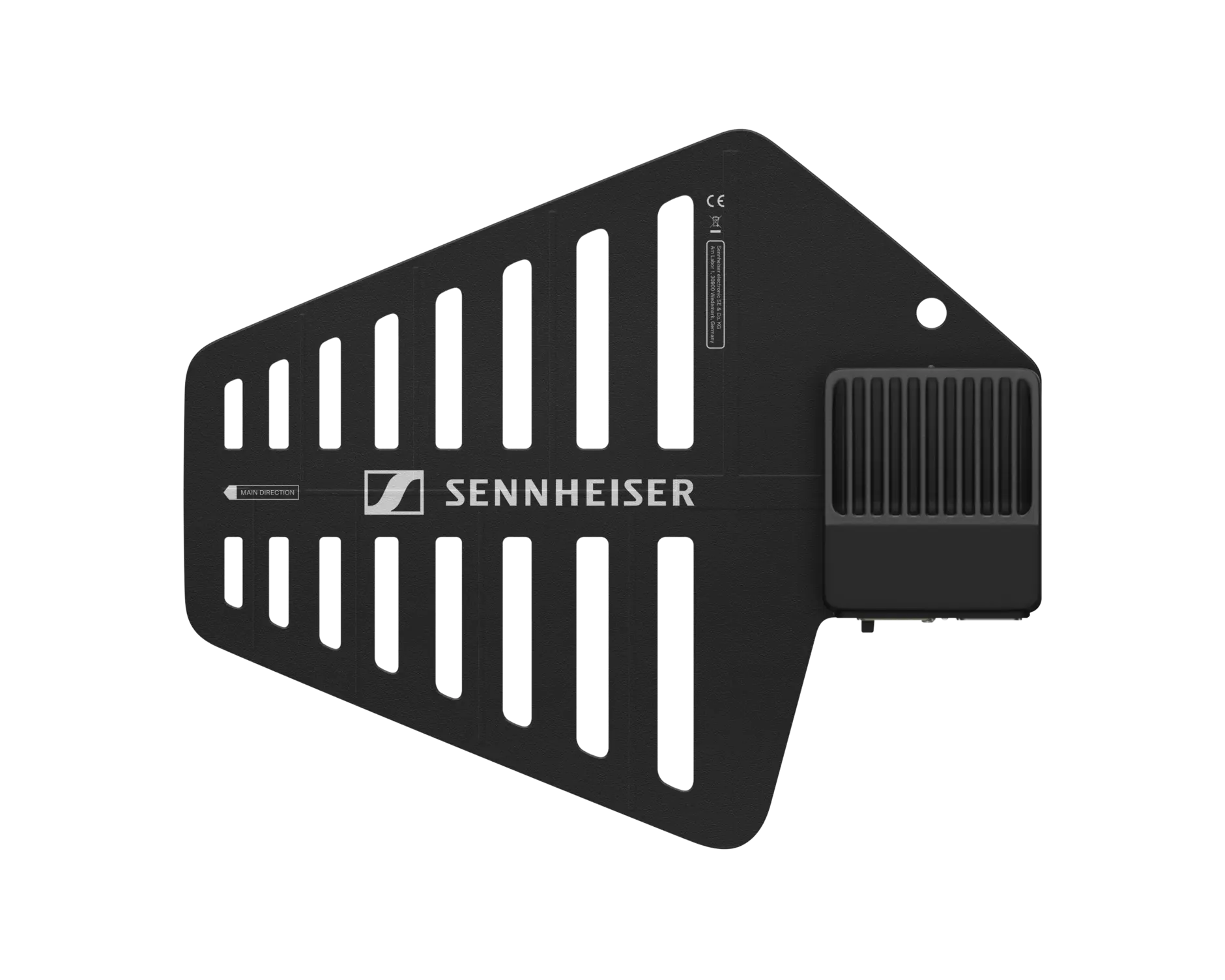

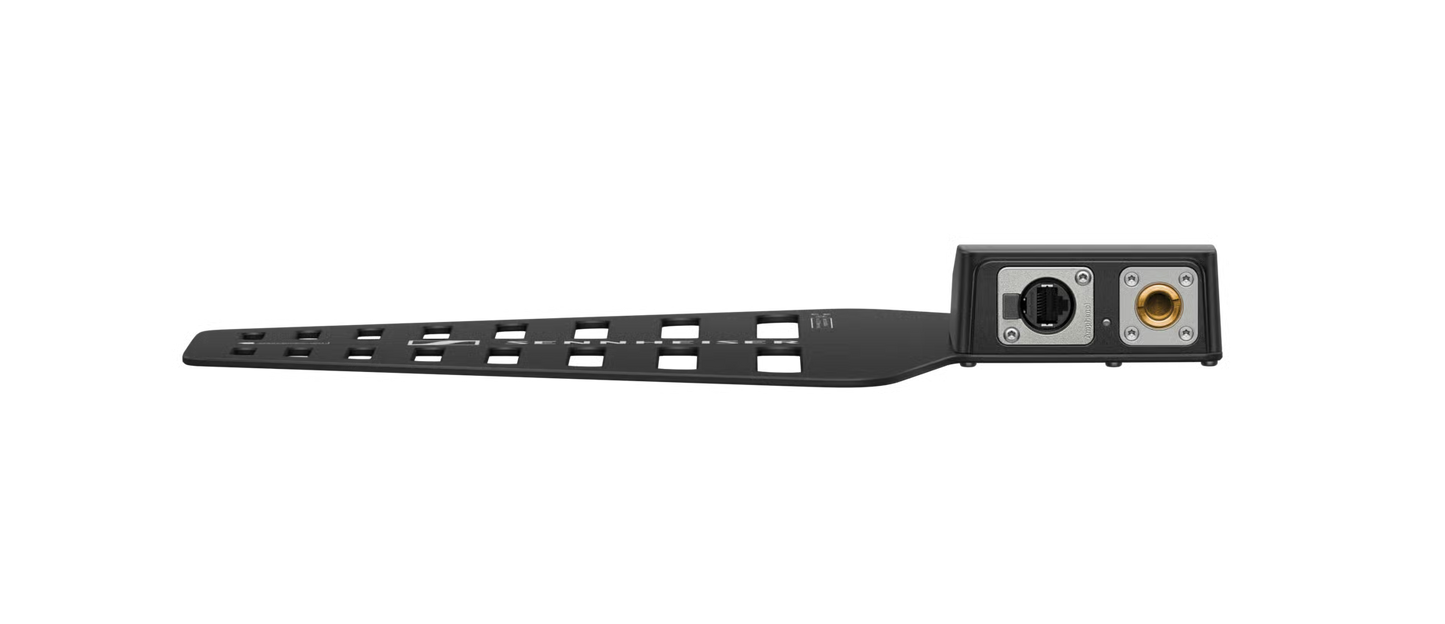

Sennheiser Spectera DAD Antenna

The Spectera DAD Antenna has a rugged distribution antenna which simultaneously handles IEM signals, mic/line audio, and data transmission through a single RJ45 connector. It features IP54 protection and PoE capability.

The UHF variant operates across 470–608 MHz and 630–698 MHz bands.

Features:

• Transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
• Available variant: UHF (470 – 608 MHz and 630 – 698 MHz)
• Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
• Directional antenna
• Ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
• Continuous interference management and remote control
• IP54 protection
• Fiber extension capabilities (supported converters in technical documentation)
• Optional use as dedicated fast and high-quality scanning device
• Powered over ethernet (standard POE)

Specifications:

• Colour: Black
• Frequency range: 470 - 608 MHz; 630 - 698 MHz; countrywise limited
• Power consumption (Amp): PoE class 2 (<6.5 W)
• Connection: Wireless
• Connectors: RJ45 1Gbps PoE
