Description

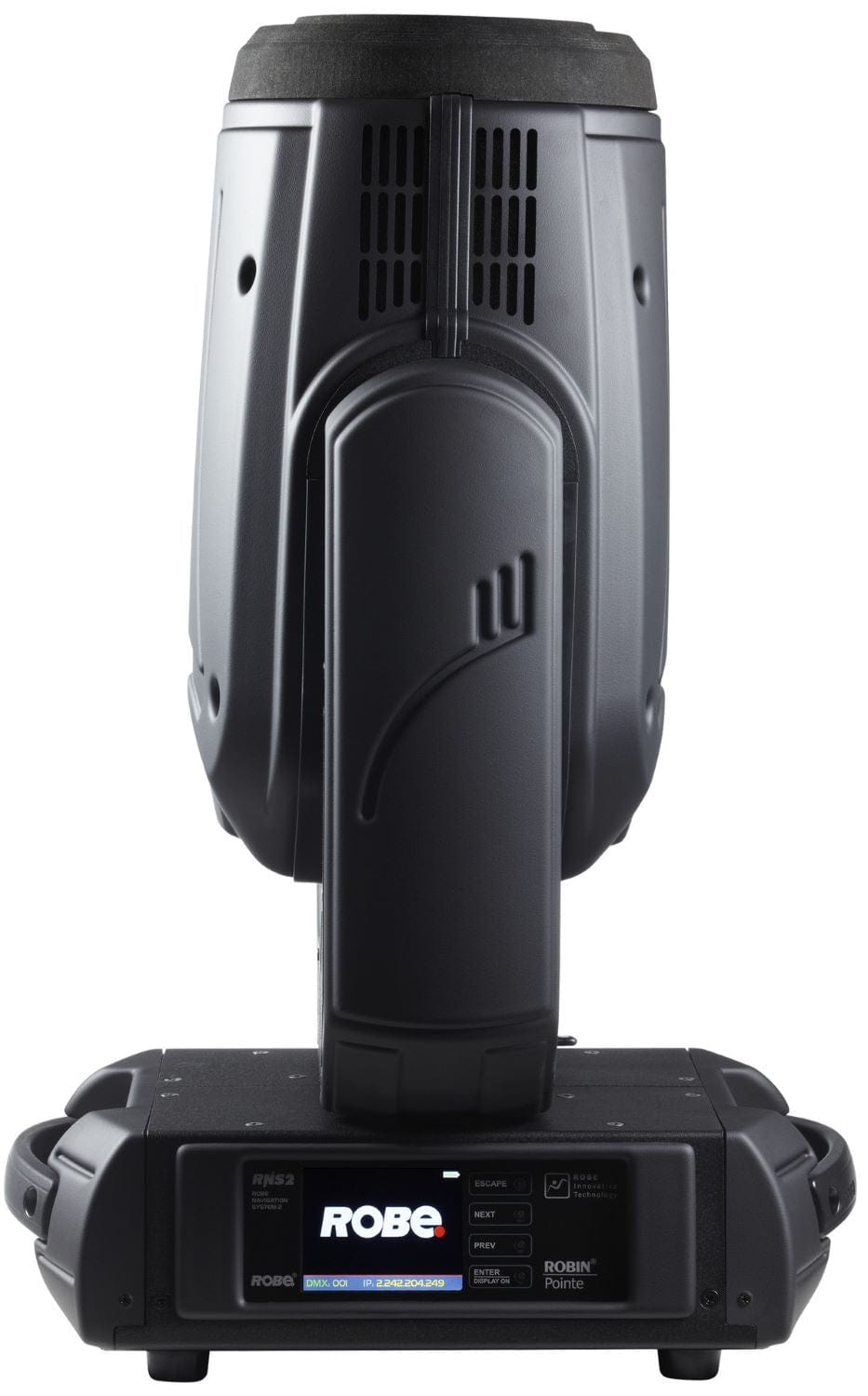

Robe POINTE Osram Sirius HRI 280-Watt RO Moving Head Light

It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane. Tight or at full 20 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6 way linear or 8 way circular, prisms to create wide reaching effects across any set. Drop in the frost filter and use any of the 13 rich colours to create a smooth even wash. The Pointe has an output far greater in size, quality and power than seems possible from it’s small, lightweight body – due to the efficient short arc 280 W discharge source and the Robe optical configuration. This new technology fixture even travels efficiently in a case of 4 and will cover all your needs – Beam, Spot, Wash, FX - there is no point in using any other fixture.

Features:

  • Light source - Osram Sirius HRI 280W RO
  • Light output - Beam mode: 9.870 lm, 82.400 lx @ 20 m; Spot mode: 5.150 lm, 90.000 lx @ 5 m
  • Zoom range - 2,5° - 10° Beam mode, 5° - 20° Spot mode
  • Effects - rotating and static gobo wheel, circular 8-facet and linear 6-facet prism

Specifications:

  • Source
    • Lamp: Discharge short arc lamp with integrated reflector
    • Approved model: Osram Sirius HRI 280 W RO
    • Lifetime: Standard mode (280 W) - 2.000 hrs, Eco mode (230 W) - 3.000 hrs
    • CRI: 75
    • CCT: 7000 K
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical system
    • Robe’s proprietary optical design
    • Zoom range:
    • 2.5°-10° beam application
    • 5° – 20° spot application
  • Output lens diameter: 110 mm
  • Fixture total lumen output:
  • Beam mode: 9.870 lm
  • Spot mode: 5.150 lm
  • Illuminance:
  • Beam mode: 82.400 lx @ 20 m
  • Spot mode: 90.000 lx @ 5 m
  • Dynamic Effects and Features
    • Colour wheel: 13 dichroic filters + white
    • Rotating Gobo wheel: 9 rotating, indexable and replaceable "SLOT&LOCK" glass gobos + open
    • Static Gobo wheel: 14 gobos + open
    • Prism 1: 8-facet circular prism rotating in both directions at different speeds
    • Prism 2: 6-facet linear prism rotating in both directions at different speeds
    • Frost effect: Separate, variable
    • Motorized zoom and focus
    • Pre-programmed random strobe & pulse effects
    • Dimmer: 0 - 100%
  • Control and programming
    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
    • Wireless CRMX™ technology from Lumen Radio: On request
    • DMX Protocol modes: 3
    • Control channels: 24, 16, 30
    • Stand-alone operation
    • 3-editable programs, each up to 100 steps
    • Pan/Tilt resolution: 8 or 16 bit
    • Colour wheel positioning: 8 or 16bit
    • Rotating gobo wheel positioning: 8 bit
    • Static gobo wheel positioning: 8 bit
    • Gobo indexing & rotation: 8 or 16bit
    • Frost: 8 bit
    • Zoom: 8 or 16bit
    • Focus: 8 or 16bit
    • Dimmer: 8 or 16bit
  • Movement
    • Pan movement: 540°
    • Tilt movement: 270°
    • Controllable speed of Pan/Tilt movement
  • Rotating gobos
    • Glass gobos: 9 rotating gobos
    • Outside diameter: 15.9 mm
    • Image diameter: 12.5 mm
    • Thickness: 1.1 mm
    • High temperature borofloat or better glass
    • "SLOT&LOCK" system for easy replacement of gobos
  • Static - beam gobos
    • Aluminium wheel with fixed gobos: 10 gobos & 4 beam reducers
  • Thermal specification
    • Maximum ambient temperature: 45°C (113°F)
    • Maximum surface temperature: 90°C (194°F)
  • Electrical specification and connections
    • Power supply: Electronic auto-ranging
    • Input voltage range: 100-240 V, 50/60 Hz
    • Power consumption: 470 W at 230 V / 50 Hz
    • Power in connector: Neutrik powerCON
    • DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
    • Ethernet port in/out: RJ45
  • Approvals
    • CE Compliant
    • cETLus Compliant
  • Mechanical specification
    • Height: 575 mm (22.6") – head in vertical position
    • Width: 364 mm (14.3")
    • Depth: 250 mm (9.8")
    • Weight: 15 kg (33 lbs)
    • Ingress protection rating: IP20
  • Rigging
    • Mounting points: 2 pairs of ¼-turn locks
    • 2x Omega adaptors with ¼-turn quick locks
    • Universal operating position
    • Pan and Tilt transport locks
    • Safety cable attachment point
  • Included items
    • User Manual
    • Power cord including powerCON In connector
  • Optional accessories
    • Lamp Osram Sirius HRI 280W RO: 14080047-01
    • Doughty Trigger Clamp: 17030386
    • Safety wire 35 kg: 99011963
    • Single Top Loader Case: 10120140-01
    • Dual Top Loader Case: 10120146-01
    • Quad Top Loader Case: 10120139-01
    • Foam Shell: 20020191
  • Legal
    • Pointe® is a registered trademark of Robe lighting s. r. o.
    • Pointe® is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
