Name: Radial Catapult RX4M 4 Channel Receiver Mic-level
Brand: Radial Engineering
SKU: CATAPULT-RX4M

Description

Radial Catapult RX4M 4ch Receiver Mic-level

Mix & Match to add transformer isolation
All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult RX4 and TX4 can be used together as a pair, creating a 4-channel audio snake. However, if you need transformer isolation to prevent hum and buzz when splitting audio signals, two additional models of Catapults are available. The TX4L and RX4L have line level isolation transformers for splitting playback tracks or outputs to amp racks, while the TX4M and RX4M can be employed when splitting mic signals on stage. Use any combination of these six models, along with the compact Catapult Mini RX and TX to create a custom snake designed for your unique application.

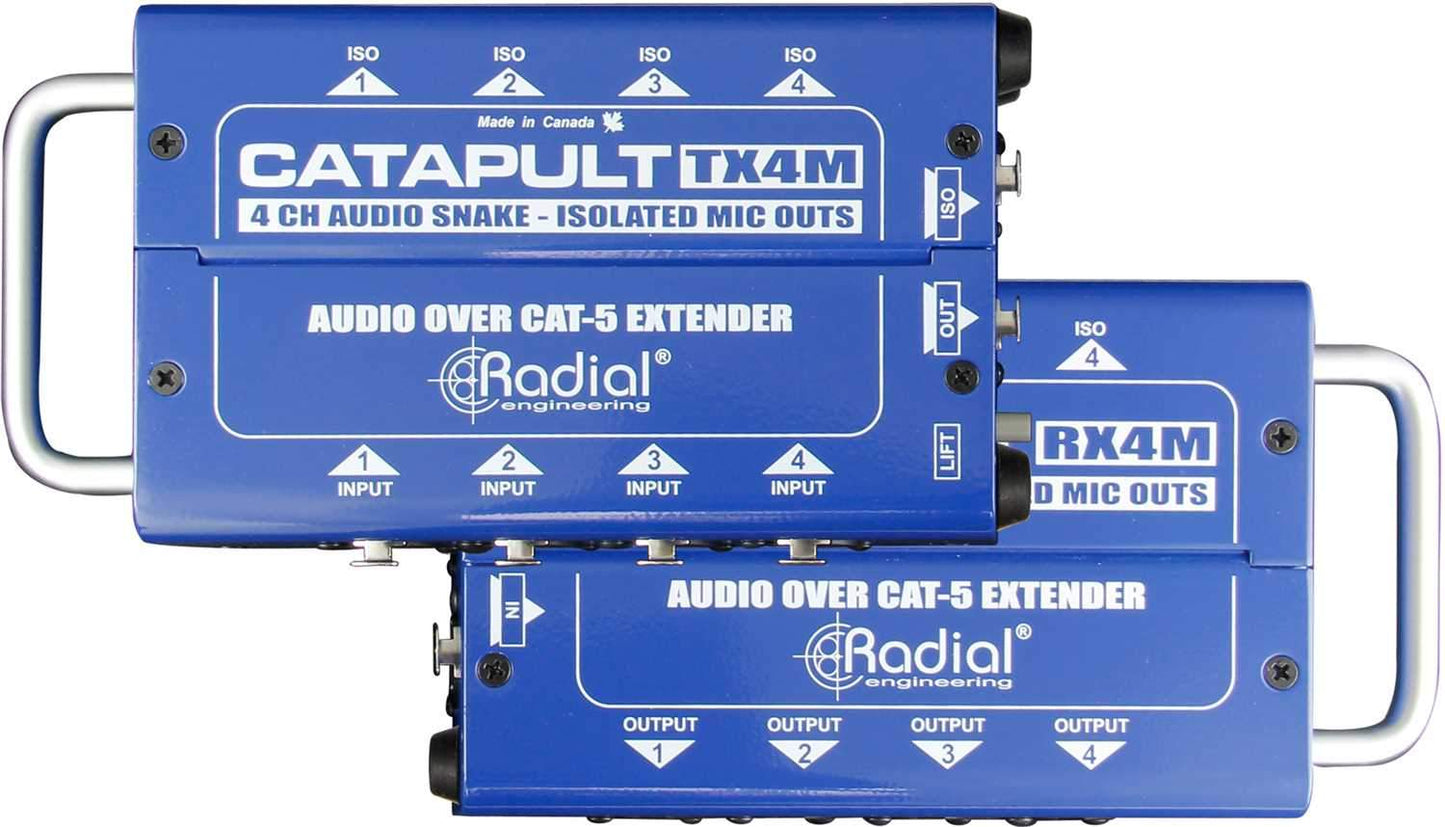

The Catapult TX4M and RX4M are four-channel mic level splitters and isolators that allow you to split four mic feeds and transmit them over a single standard cat5 shielded twisted pair cable. This allows you to split mics to three different locations; such as front-of-house, monitors, and a recording device. Mic level isolation transformers in both units keep each destination isolated from the others, eliminating problems that arise from ground loops such as buzz and hum. The TX4M has four XLR-F inputs and four isolated XLR-M outputs, while the RX4M has four direct XLR-M outputs and four isolated XLR-M outputs. Both units feature RJ45 type Ethercon connections with ground lift switches. Phantom power can be provided to the mics via the direct outputs, so long as a shielded Cat 5 cable is used.
