Description

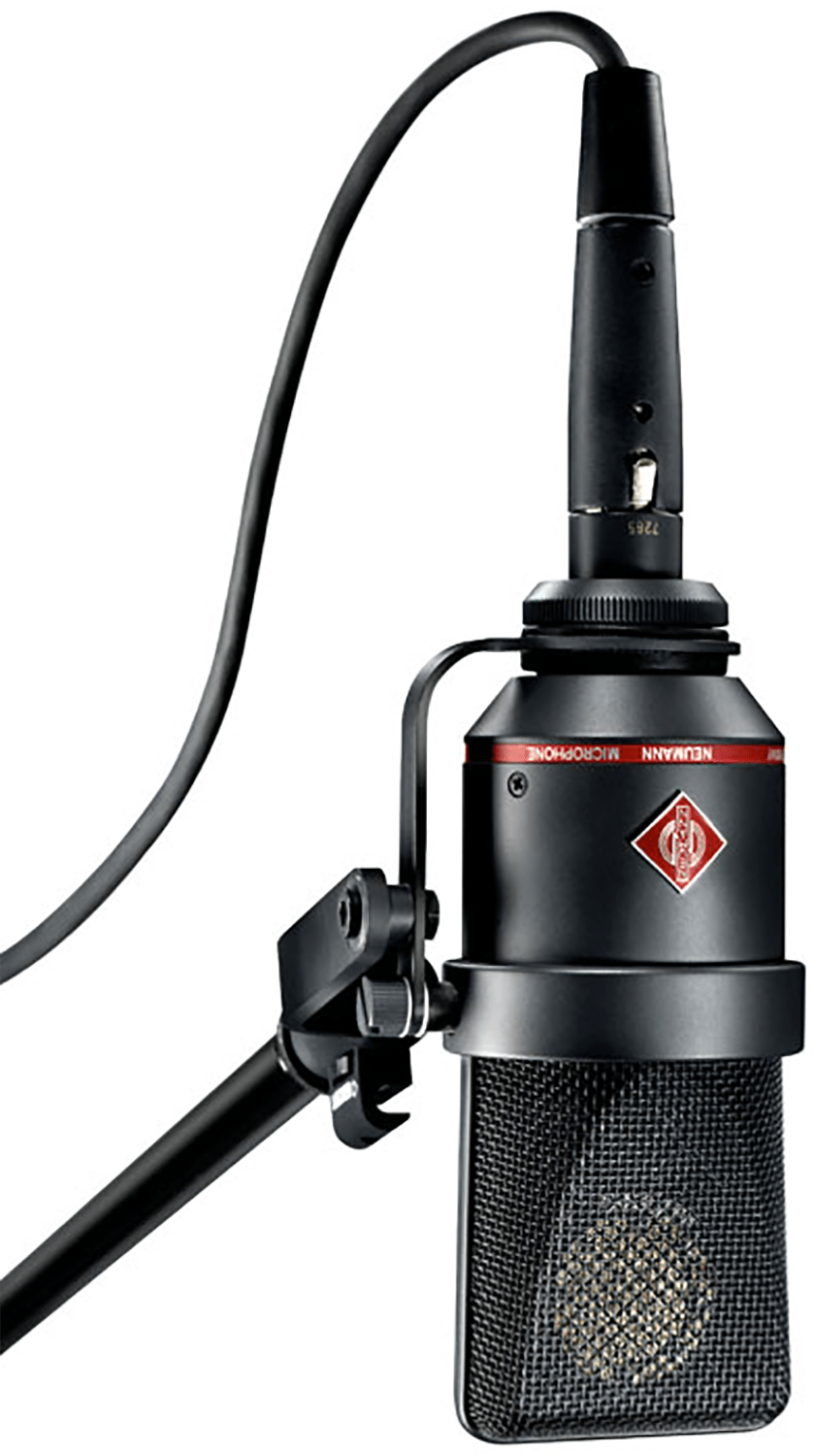

Neumann TLM-170-R-MT K 89 Capsule Multi-Pattern Microphone with Tilting Side Bracket - Matte Black

The black TLM 170 R Large-Diaphragm Multipattern Condenser Microphone from Neumann is a large-diaphragm, multipattern condenser microphone and features FET 100 technology, a balanced, transformerless output stage, low self-noise, and an impressive dynamic range.

Features:

  • Local and remote-controlled large-diaphragm microphone
  • Pressure-gradient transducer with double-membrane capsule
  • omnidirectional, wide-angle cardioid, cardioid, hypercardioid, and figure-8 polar patterns
  • Switchable low-frequency roll-off and 10 dB pre-attenuation
  • Tiltable, elastically suspended bracket mount

Specifications:

  • Microphone:
    • Primary Applications: Live Sound, Studio Recording, Broadcast
    • Form Factor: Large Diaphragm Mic / Stand/Boom Mount
    • Intended Sound Sources: Vocals, Speech/Voice-Over, Instruments, Orchestra
    • Sound Field: Mono
    • Element Type: Condenser
    • Polar Pattern: Cardioid / Figure-8 / Hypercardioid / Omnidirectional / Subcardioid/Wide Cardioid
    • Pattern Selection: Switched (Adjustable on Mic)
    • Orientation: Side Address
    • Circuitry: Solid-State
    • Pad: -10 dB
    • High-Pass Filter: 100 Hz
    • On-Board Controls: High-Pass Filter, Pad, Polar Pattern
  • Performance:
    • Frequency Range: 20 Hz to 20 kHz
    • Maximum SPL:
      • 144 dB SPL (.5% THD)
      • 154 dB SPL (.5% THD, with Pad)
    • Impedance: 50 Ohms
    • Load Impedance: 1000 Ohms (Rated)
    • Sensitivity: 8 mV/Pa at 1 kHz into 1 Kilohm
    • Dynamic Range: 130 dB
    • Signal-to-Noise Ratio:
      • 80 dB A-Weighted
      • 68 dB CCIR
    • Equivalent Noise Level:
      • 14 dB A-Weighted
      • 26 dB CCIR
  • Connectivity:
    • Analog Output: 1x XLR 3-Pin Male (on Mic)
  • Power:
    • Power Sources: Phantom Power
  • Physical:
    • Color: Black
    • Dimensions: ø: 2.4 x L: 6" / ø: 6 x L: 15.2 cm
    • Weight: 1.39 lb / 0.63 kg
  • Included: Tilting Side Bracket
