Description

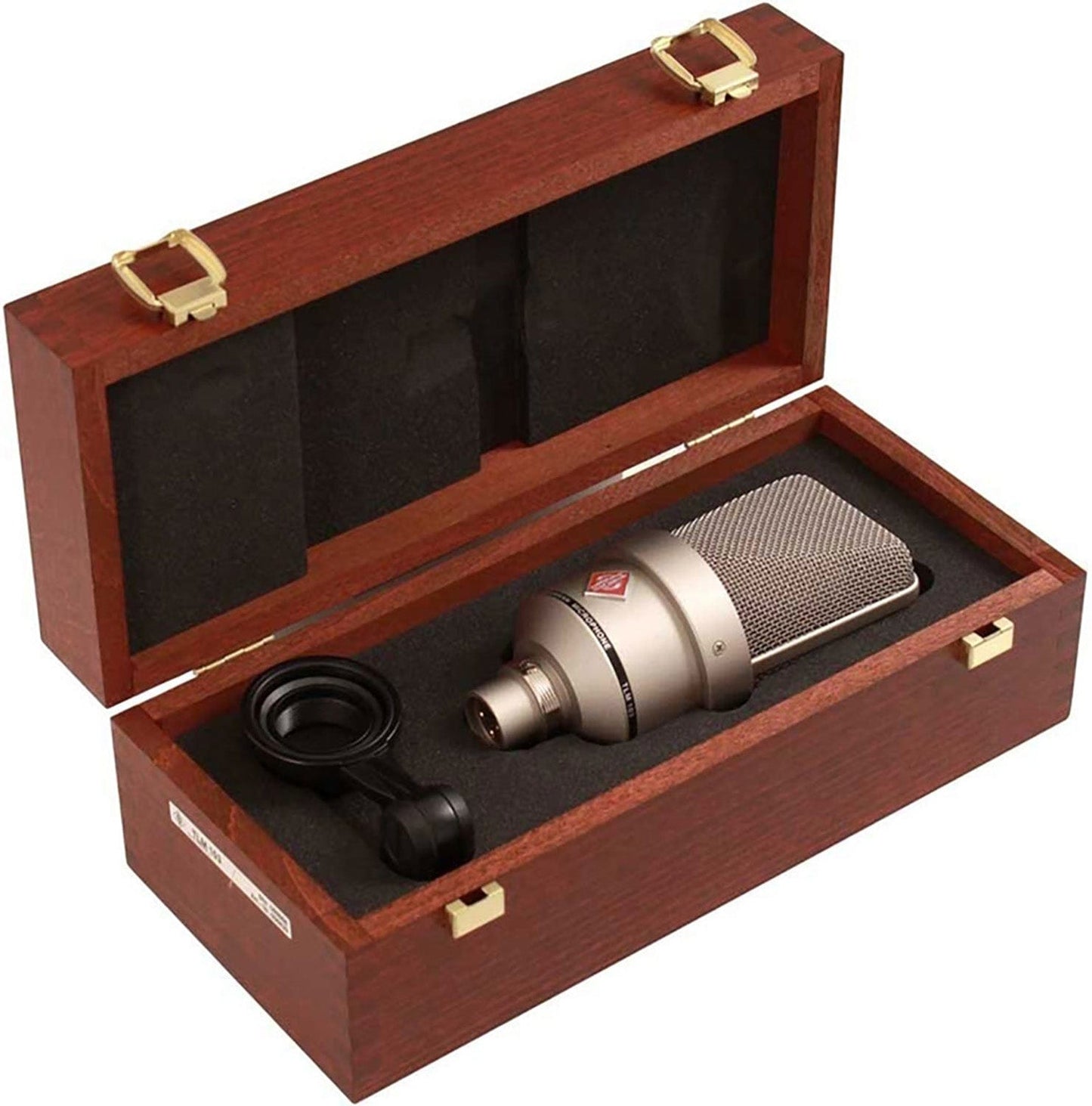

Neumann TLM-103 K 103 Capsule Cardioid Microphone with SG 1 Swivel Mount and Woodbox

The TLM 103 has quickly become one of the biggest successes in Neumann’s history. Its pristine, clear sound is a modern update on the classic U87. The TLM 103 is a transformerless cardioid condenser microphone with a gentle presence boost for a stunningly direct sound with breathtaking definition and ultra low noise.

Features:

  • Large diaphragm capsule derived from the classic U 87 microphone
  • Balanced sound with enhanced presence
  • Cardioid pattern
  • Transformerless circuitry with high SPL capability
  • Extremely low self-noise: only 7 dB-A

Specifications:

  • Acoustical operating principle: Pressure gradient transducer
  • Directional Pattern: Cardioid
  • Frequency Range: 20 Hz ... 20 kHz
  • Sensitivity at 1 kHz into 1 kohm: 23 mV/Pa = –32.5 dBV ± 1 dB
  • Rated Impedance: 50 ohms
  • Rated load impedance: 1 kohms
  • Equivalent noise level, CCIR: 17.5 dB
  • Equivalent noise level, A-weighted: 7 dB-A
  • Maximum SPL for THD 0.5%: 138 dB
  • Signal-to-noise ratio, CCIR (re. 94 dB SPL): 76.5 dB
  • Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 87 dB
  • Maximum output voltage : 13 dBu
  • Supply voltage (P48, IEC 61938): 48 V ± 4 V
  • Current consumption (P48, IEC 61938): 3 mA
  • Matching connector: XLR 3 F
  • Weight: approx. 450 g
  • Diameter: 60 mm
  • Length: 132 mm
