Neumann TLM-107 Multi-Pattern Condenser Microphone

The TLM 107 is a reference class microphone for vocals and instruments with breathtaking realism. Five polar patterns plus variable pad and low cut settings make the TLM 107 exceptionally flexible. And with a dynamic range of 131 dB the TLM 107 captures anything from a slight whisper to massive drums without unwanted noise or distortion.

Features:

• For Studio Vocals and Instruments

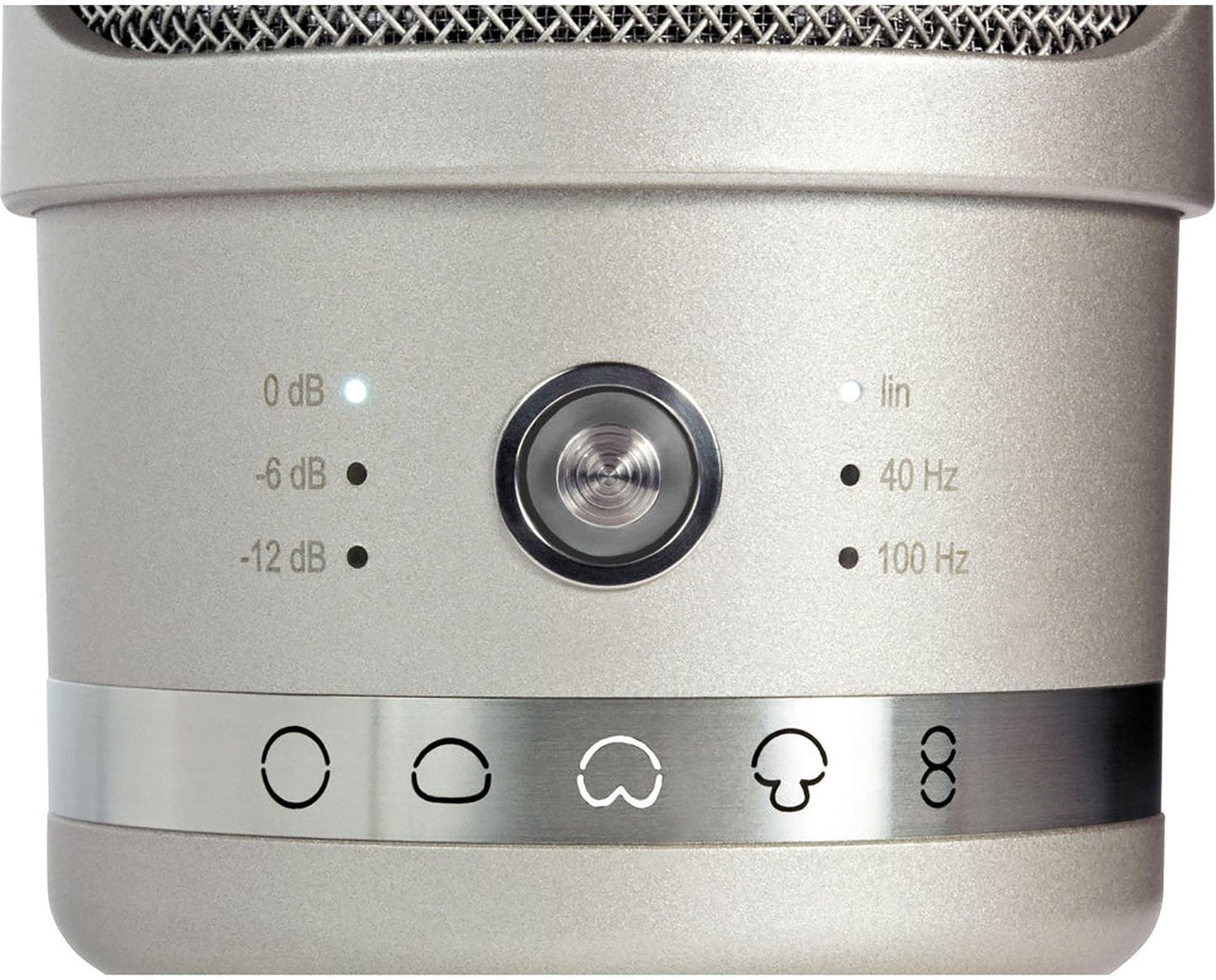

• Five Selectable Polar Patterns
• Dual-Diaphragm Condenser Capsule
• Transformerless Circuitry
• Balanced Tone in All Polar Patterns
• Switchable Pad at -6 or -12 dB
• Low-Cut Filter at 40 or 100 Hz
• Low Self-Noise of 10 dBA
• 48V Phantom Powered

Specifications:

• Acoustical operating principle Pressure gradient transducer
• Directional pattern Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
• Frequency range 20 Hz ... 20 kHz
• Sensitivity at 1 kHz into 1 kohm 11 mV/Pa
• Rated impedance 50 ohms
• Rated load impedance 1 kohms
• Equivalent noise level, CCIR1) 22 dB
• Equivalent noise level, A-weighted1) 10 dB-A
• Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 72 dB
• Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 84 dB
• Maximum SPL for THD 0.5%2) 141 dB
• with preattenuation -6 dB 147 dB
• with preattenuation -12 dB 153 dB
• Max. output voltage for THD < 0.5 % 10 dBu
• Power Supply (IEC 61938) P48
• Current consumption 3.2 mA
• Required connector XLR 3 F
• Weight 445 g
• Diameter 64 mm
• Length 145 mm
