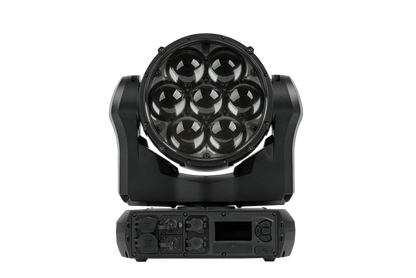

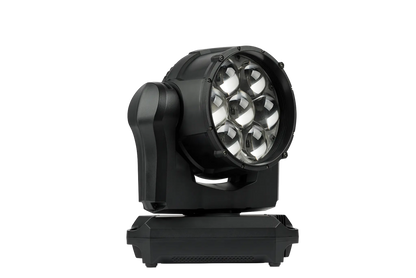

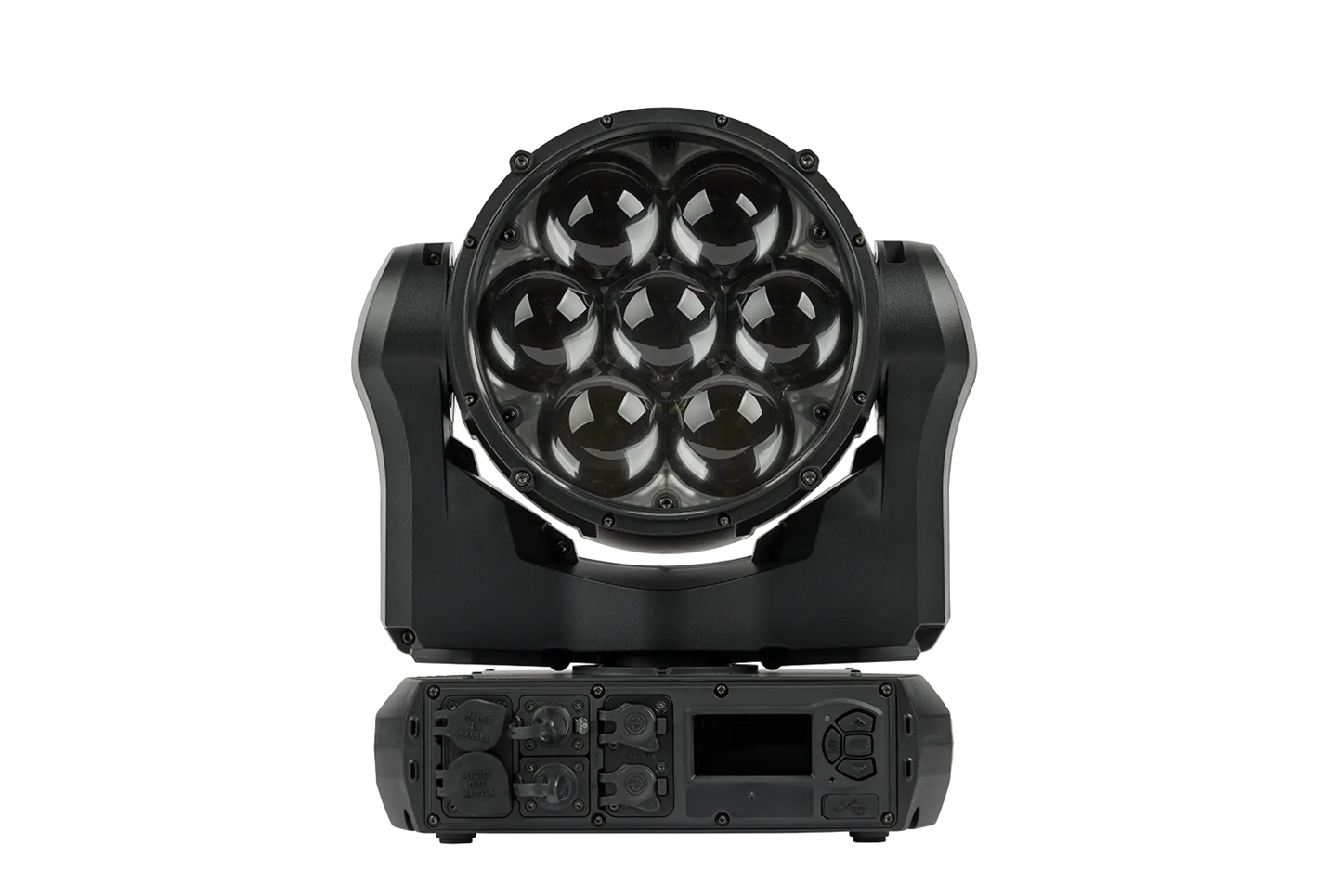

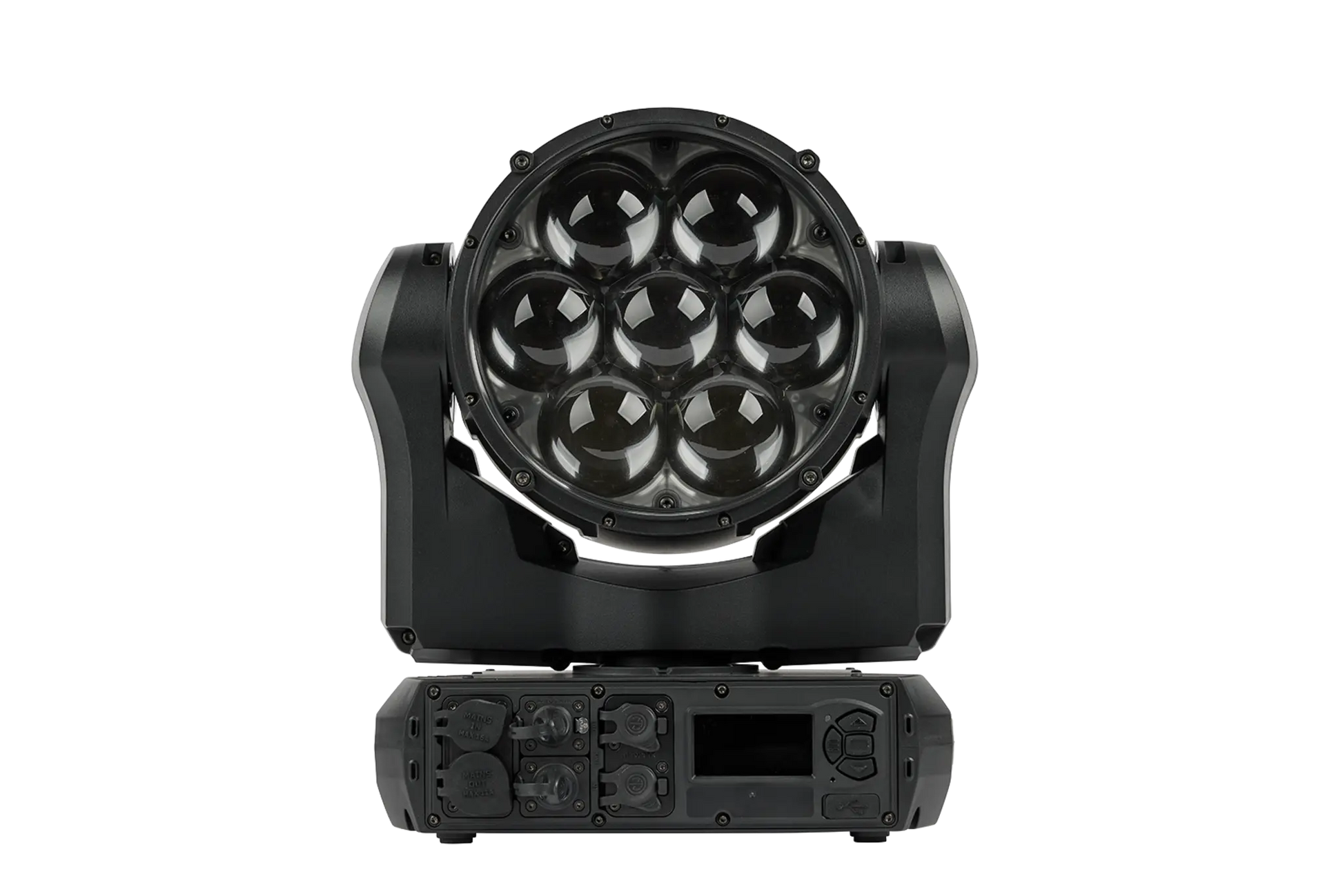

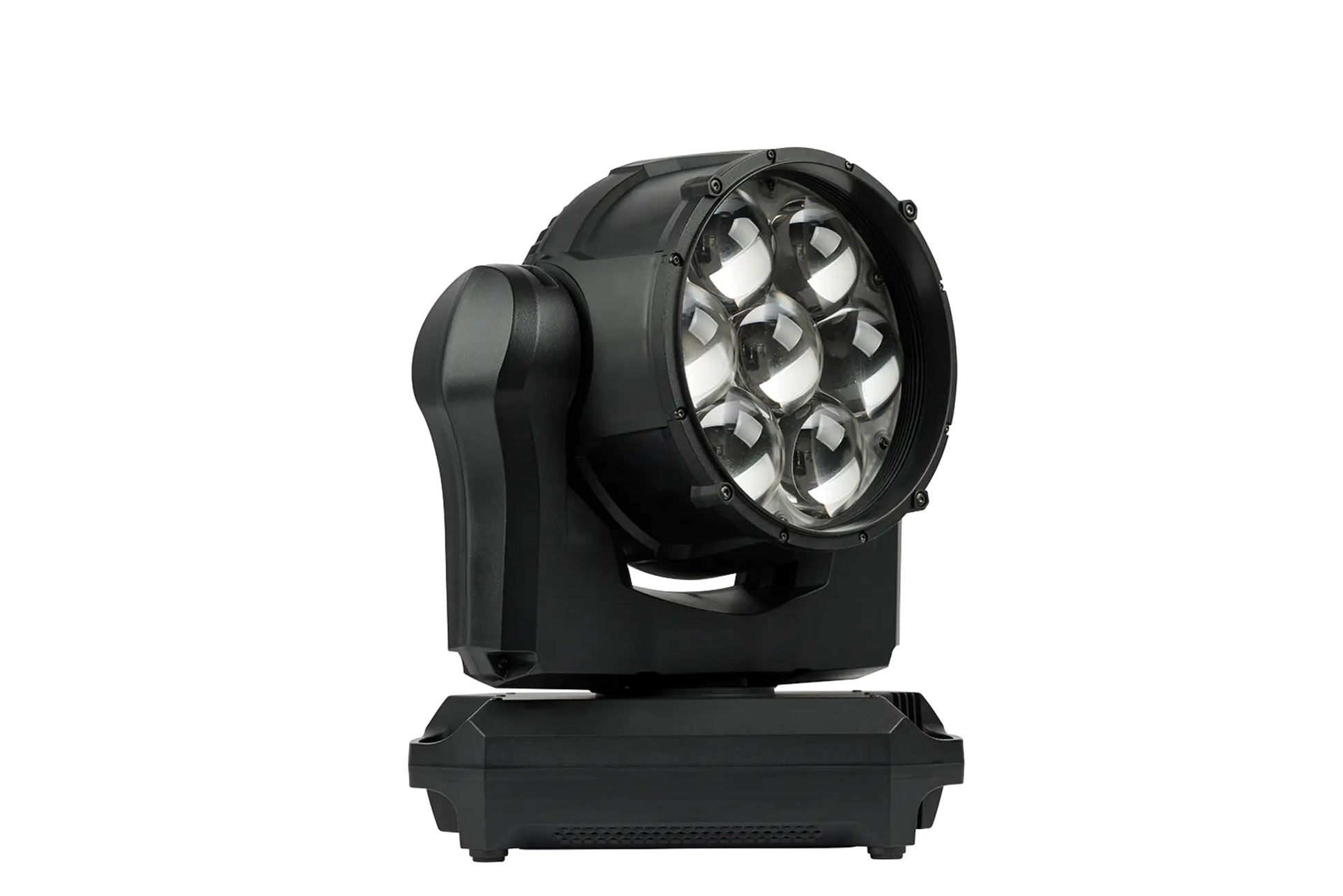

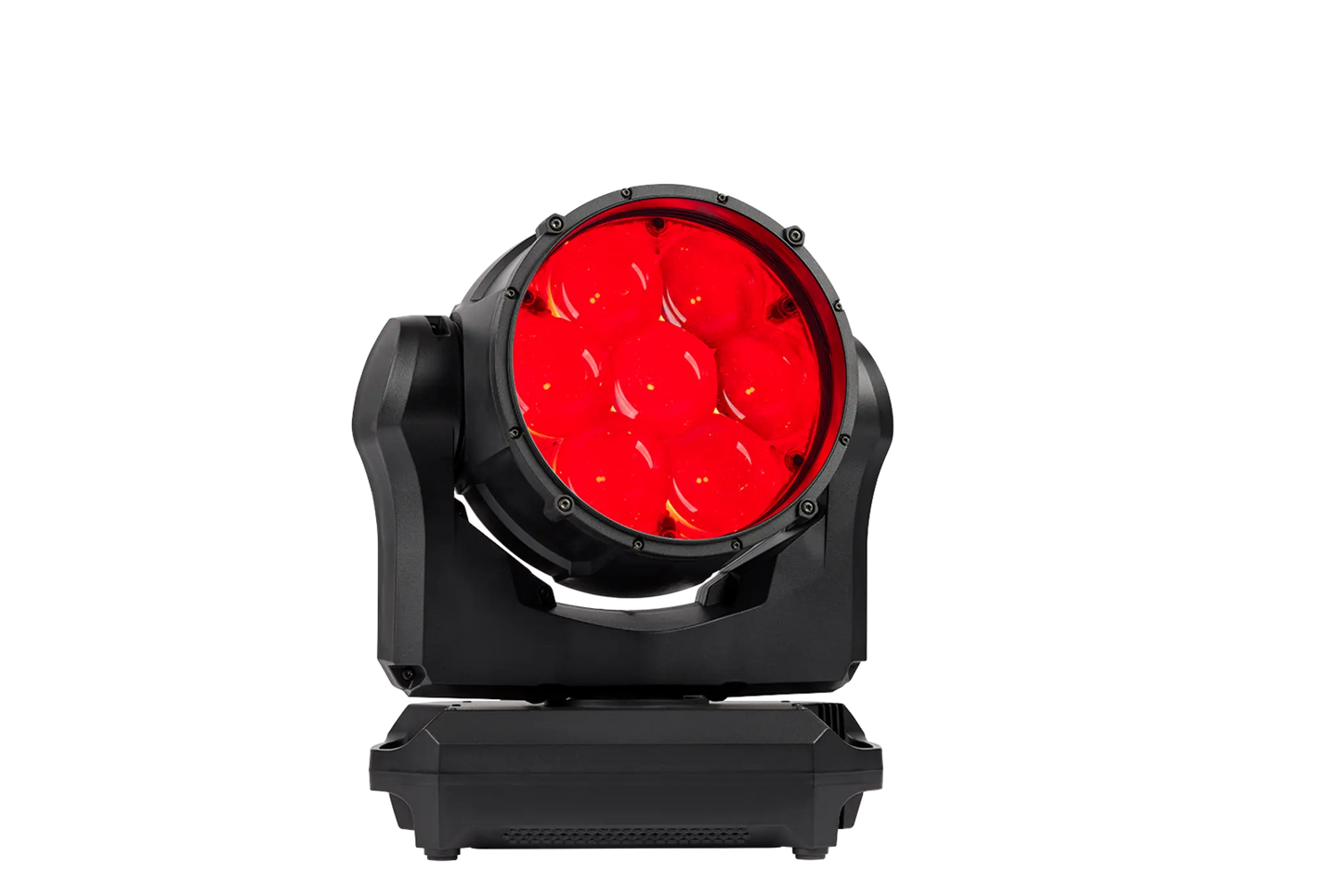

Martin MAC Aura XIP Wash Light
The MAC Aura XIP Wash Light redefines moving head wash technology with its ground-breaking aura filament effect and complete pixel control, enabling video mapping across the beam, aura, or both simultaneously.
The MAC Aura XIP was the industry's first outdoor-rated fixture in this category, it delivers performance without sacrificing weight, size, or visual elegance.
The wash light has an advanced optical engine which produces an exceptionally even wash field with refined soft edges, virtually eliminated stray light, and commanding mid-air beam intensity with precision light control.
The MAC Aura XIP Wash Light is available in Dual SiP or in EPS, and additionally in black or white.
Features:
- Light Source:
- 6,000 lumens RGBW light output
- High narrow intensity: 360,000 cd
- Pixelated Beam: 7x 60W RGBW LEDs
- Filament Aura: 12x 4W RGBW LEDs
- Fully calibrated using Martin's Full Gamut Colour Calibration
- Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
- LED Driver frequency adjustable for demanding applications
- Optics:
- Tight beam and beautiful wash field
- 6.3 – 50.4˚ zoom – Precise, silent and fast zoom
- Even soft edge wash field with zero hotspot
- High intensity mid-air beams
- Minimal stray light
- Minor colour temperature shift from centre to edge
- Soft lens Accessory:
- Creates an even softer edge wash field
- Minimal impact to Aura filament effects
- Attaches to front of fixture
- Can remain attached to fixture inside flight case SiP

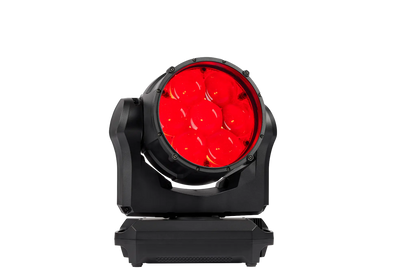

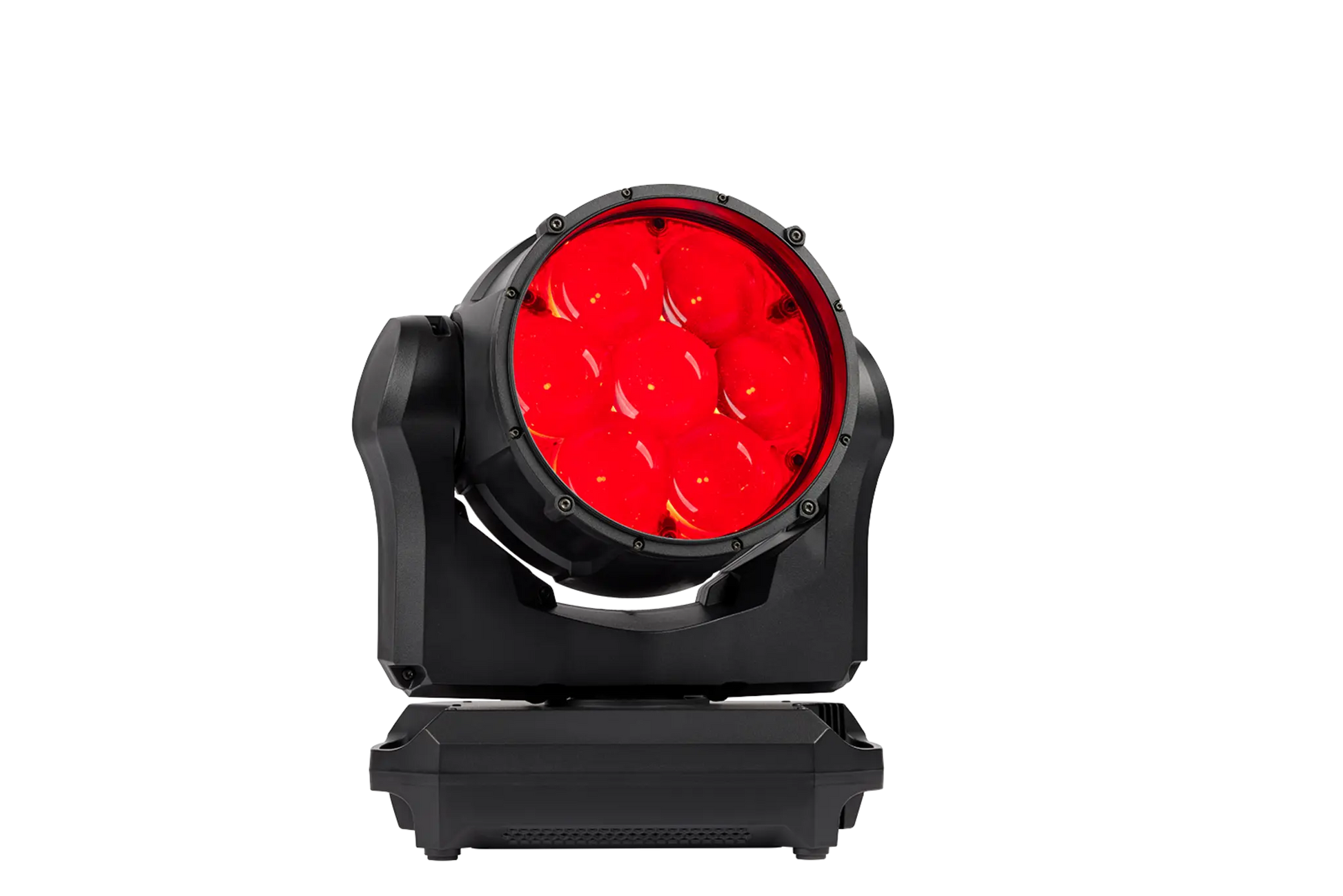

- Colour Palette:
- RGBW colour mixing with very bright and vibrant saturated colours, as well as soft pastels and white tones
- Calibrated and Extended Colour Modes
- Calibrated CTC control: 1,000 – 12,850 K
- Green Magenta Shift (Tint) Control
- Tungsten Emulation Option
- Virtual Colour Wheel

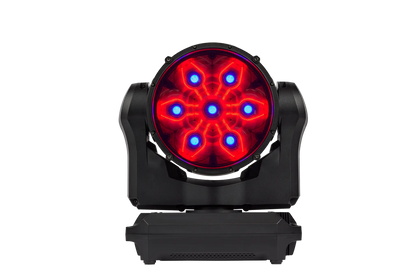

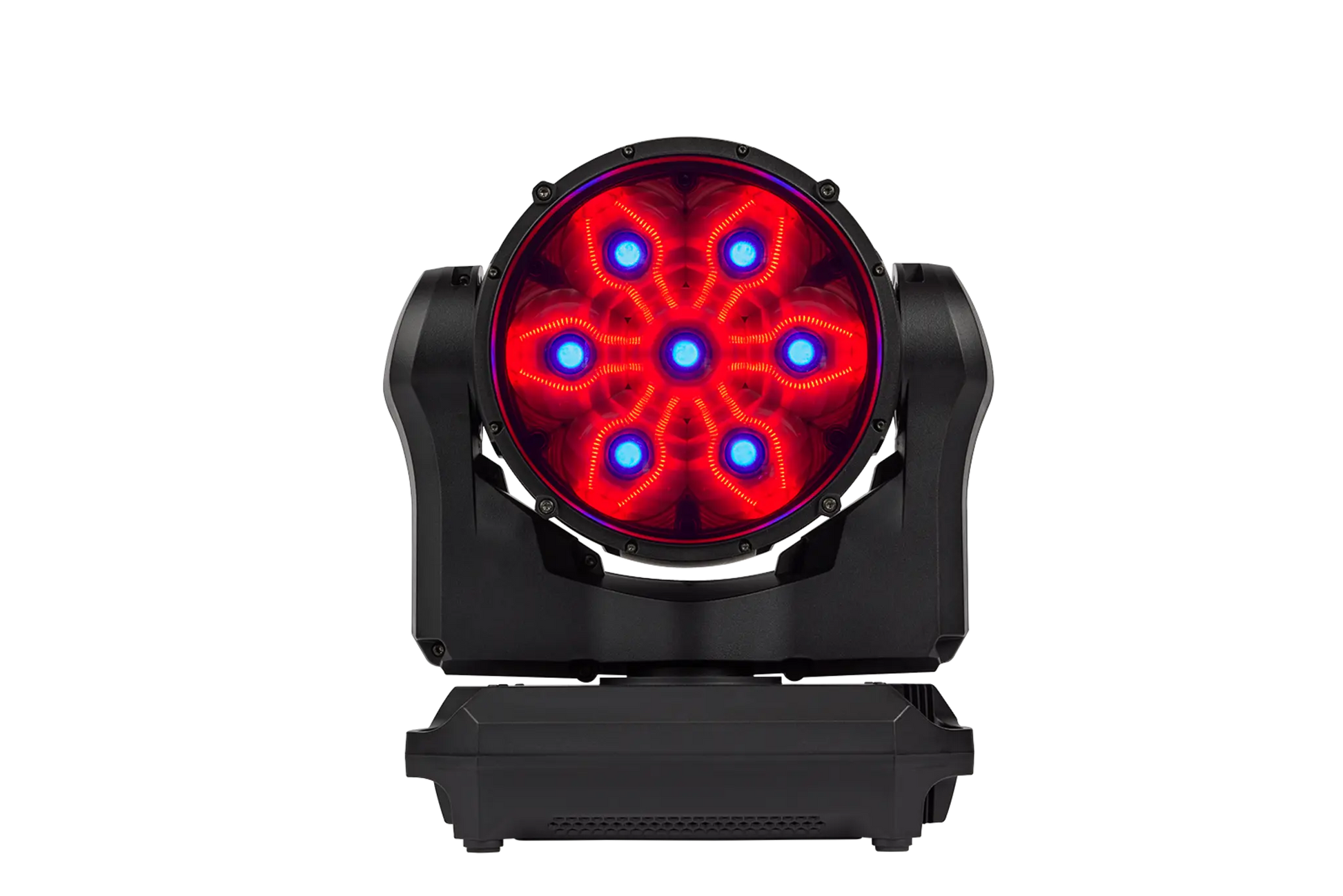

- Dynamic Effects:
- More than 200 built-in FX macros with control of foreground colour, background colour, speed and direction
- P3 video mapping of fixture Beam pixels and/or Aura filaments
- P3 Mix allowing crossfade between video looks and DMX looks
- High-speed pan, tilt and zoom
- Cooling and Noise:
- Ultra-quiet cooling system
- Theatre / Broadcast mode at just 25.2 dB(A)
- Low noise pan/tilt and effects operation
- Construction:
- Smart outdoor rating for any weather condition
- Weight 8.95 kg (19.73 lbs.)
- Dimensions: 338 x 380 x 226 mm
- Control:
- Battery-powered control panel on the base
- DMX in & thru
- Ethernet in & thru, supporting Art-Net, sACN & Martin P3
- Fail-safe bypass on Ethernet ports
- RDM over DMX and RDM over Art-Net
Specifications:
- Physical:
- Width (across yoke): 338 mm (13.31 in.)
- Width (base): 306 mm (12.05 in.)
- Height (head straight up): 380 mm (14.96 in.)
- Height (maximum): 421 mm (16.57 in.)
- Depth (head): 205 mm (8.07 in.)
- Depth (base): 226 mm (8.90 in.)
- Minimum centre-to-centre distance in side-by-side installation: 350 mm (13.78 in.)
- Weight: 8.95 kg (19.73 lbs.)
- Dynamic Effects:
- Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
- Beam Dimming options: Choice of four dimming curves
- Beam Colour Mixing: RGB, independently variable 0 - 100%
- Beam Colour Temperature Control: Variable 1,000 – 12,850 K
- Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
- Beam Virtual Colour wheel: 48 colour pre-sets, continuous rotation & random colour
- Zoom: Motorized with 1:6 zoom ratio
- Pan: Motorized 540°
- Tilt: Motorized 220°
- Beam Pixel Mapping: Individual RGB control of each of the 7 Beam pixels
- Beam P3 Mix: Video mapping of fixture with variable crossfade between DMX control and video control
- Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
- Aura Dimming options: Choice of four dimming curves
- Aura Colour Mixing: RGB, independently variable 0 - 100%
- Aura Colour Temperature Control: Variable 1,000 – 12,850 K
- Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
- Aura Virtual Colour wheel: 48 colour pre-sets, continuous rotation & random colour
- Aura Pixel Mapping: Individual RGB control of each of the 12 Aura filaments
- Aura P3 Mix: Video mapping of fixture with variable crossfade between DMX control and video control
- Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined
- LED Frequency control: Variable LED PWM control
- Control and Programming:
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol Detection: Automatic
- DMX Modes: Compact, Basic, Extended, Ludicrous, XB Standard & XB Extended
- DMX Channels: 20, 36, 57, 93, 14 & 25
- 16-bit Controllable Parameters: Beam & Aura Dimming, Beam Colour Mixing, Zoom, Pan and Tilt
- Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
- Local User Interface: Backlit LCD Display with battery-powered operation
- Fixture identification: User-settable ID number
- DMX Compliance: USITT DMX512-A
- RDM Compliance: ANSI/ESTA E1.20
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
- Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
- Optics:
- Front Lens Diameter: 196 mm (7.72 in.)
- Zoom Range: 1:6
- Full Zoom Range at Half Peak (Beam Angle): 6.3° - 35.3°
- Full Zoom Range at Tenth Peak (Field Angle): 8.8° - 50.4°
- Beam Light Source: 7 x 60 W RGBW LED
- Aura Light Source: 12 x 4 W RGBW LED
- Max. Total Beam LED Engine Power: 296.5 W
- Max. Total Aura LED Engine Power: 35.1 W
- Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)
- Photometric Data:
- Light Engine Luminous Output: 11,000 lumens
- Fixture Luminous Output Wide: 6,000 lumens
- Fixture Luminous Output Narrow: 4,500 lumens
- Peak Luminous Intensity Narrow: 360,000 cd
- CCT: Variable 1,000 K – 12,850 K (+/- 200 K)
- CRI (Colour Rendering Index): ≥ 71
- CQS (Colour Quality Scale): ≥ 80
- TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 78
- TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
- TLCI (Television Lighting Consistency Index): ≥ 57
- Beam LED Refresh Rate: Variable 2,400 Hz - 3,000 Hz and 24,000 Hz mode
- Aura LED Refresh Rate: 1,200 Hz
- Binning: Tight colour and flux binning
- Calibration: Full Gamut Colour Calibration of Beam and Aura
- Colour Modes: Extended Colour Mode and Calibrated Colour Mode
- Construction:
- Housing: High-impact flame-retardant thermoplastic
- Colour: Black
- Protection rating: IP54
- Installation:
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) centre-to-centre omega brackets and single M12 threaded hole
- Location: Indoor or Temporary Outdoor use
- Orientation: Any, except with display facing upwards in outdoor application
- Minimum distance to combustible materials: 0.2 m (7.87 in.)
- Minimum distance to illuminated surfaces: 1.0 m (39.37 in.)
- Connections:
- AC mains power in/thru: Neutrik powerCON TRUE1 TOP
- Firmware from flash memory: USB 2.0 type C port
- DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
- Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
- Electrical:
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 7.0 A
- Typical earth-leakage current: 0.43 mA
- Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
- Max current draw: 3.9 A @ 100 V / 120 V , 1.8 A @ 208 V / 230 V / 240 V
- Typical current draw: 2.9 A @ 100 V , 2.4 A @ 120 V , 1.4 A @ 208 V , 1.3 A @ 230 V , 1.2 A @ 240 V
- Thermal:
- Cooling: Forced air (temperature regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Maximum surface temperature, steady state, at 40° C ambient: 60° C (140° F)
- Total heat dissipation (calculated, +/- 10%): 972 BTU/hr.
