MA Lighting MA4000658 MA Network Switch Type N02-4FDW-A

With the brand new MA Network Switch, the setup time and the level of complexity to achieve an optimized lighting network is radically reduced. MA now offers the complete lighting control solution from MA console, via MA Network Switch and its network infrastructure to MA DMX distribution. In combination with the MA consoles and additional MA networking devices the MA Network Switch provides a very easy to use solution, even for complex lighting systems. Incorporating the hardware and software features MA is famous for.

Features:

• Simplicity: easy set-up and management
• MA DNA: industry leading support and reliability
• Designed for lighting technicians: standard lighting industry protocols can be filtered
• Performance: full throughput of all Gigabit ports
• Networking: compliant with IEEE 802.3ab Gigabit Ethernet

Specifications:

• Operating voltage/ Supply voltage: 100/240V, 50/60Hz (automatic detection)
• Power: max. 100VA
• Dimensions: 483 x 43 x 264mm / 19 x 1.69 x 10.4inch
• Net weight: 3.7kg / 8.2lbs

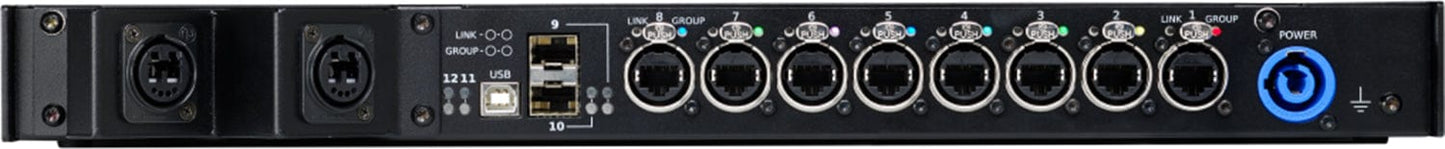

• Output connectors:
  • 9x etherCON
  • 4x prepared SFP Cages for Mini-GBIC
• Input connectors:
  • 1x powerCON
  • 1x USB Typ B
