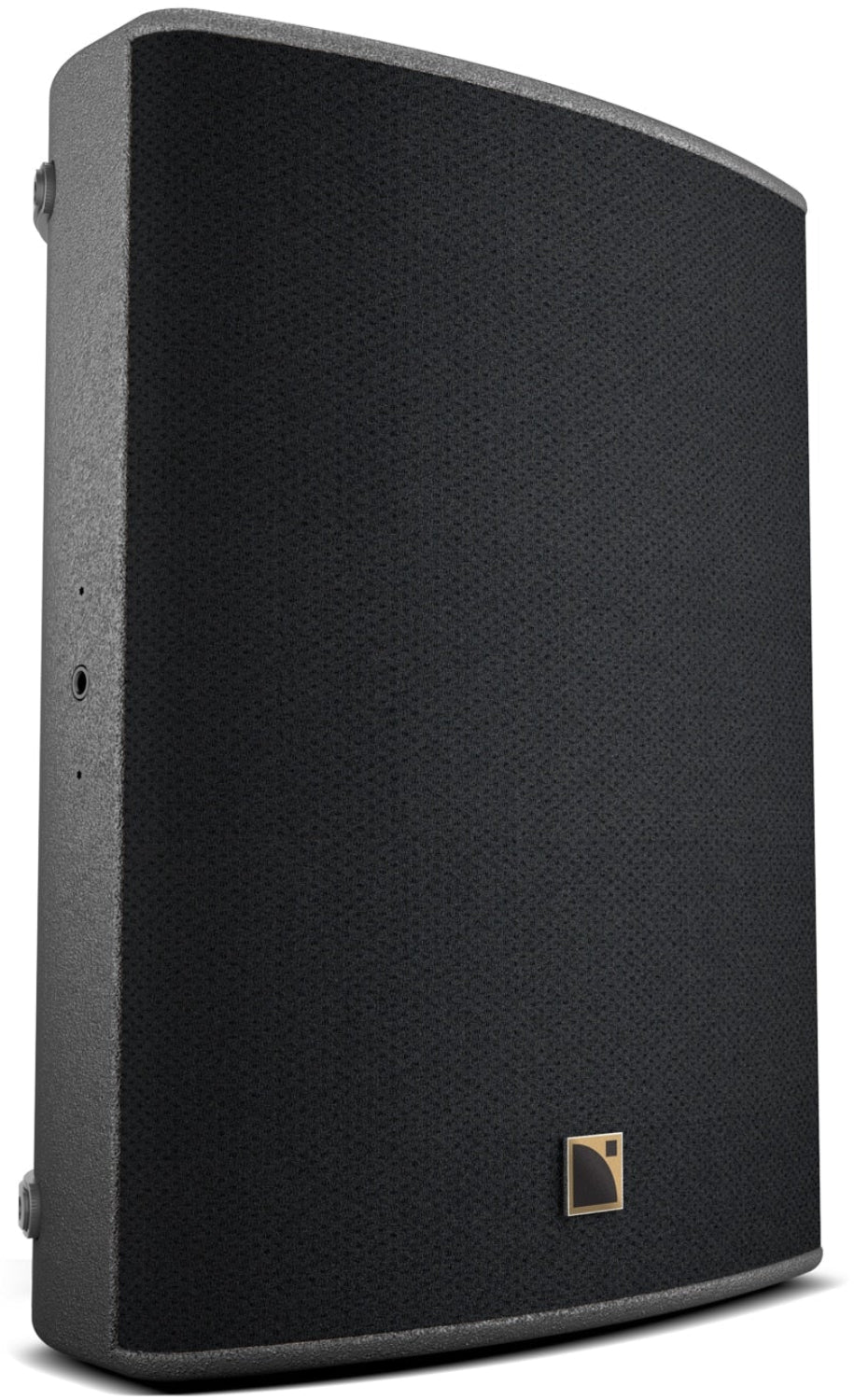

L-Acoustics X15 HIQ 2-Way Coaxial Speaker w/ Active Crossover

More L-Acoustics products

Write a review Q&A SKU: X15-HIQ Solotech ID#: 112772
1 of 4
Get a quote

Need help? Contact our product specialists.

View full details

Need help? Contact our product specialists.

Description

L-Acoustics X15 HIQ 2-Way Coaxial Speaker w/ Active Crossover

The X15 HiQ is a coaxial system designed as a reference stage monitor. The enclosure features a 3’’ diaphragm compression driver coaxially-loaded by a 15’’ low frequency transducer in a bass-reflex cabinet. The L-Vents laminar vented ports reduce turbulence and port noise at high levels to increase LF efficiency. The X15 HiQ operates from 55 Hz to 20 kHz. The coaxial transducer arrangement and its ellipsoid waveguide produce a 40° x 60° directivity pattern with a smooth tonal response free of secondary lobes over the entire frequency range. As a result, X15 HiQ boasts an exceptional immunity to feedback. The L-Acoustics amplified controllers ensure the advanced crossover functions, time alignment, linearization, and L-Drive protection of the transducers.

This is a passive speaker – requires 2 channels of amplification for each speaker box.

Specifications:

  • Description: 2-way coaxial enclosure, controlled and amplified by LA4X / LA8
  • Usable bandwidth (-10 dB): 55 Hz - 20 kHz (X15 preset)
  • Maximum SPL: 138 dB (X15 preset)
  • Nominal directivity:
    • Vertical: 60°
    • Horizontal: 40°
  • Monitoring angle:
    • 35° without risers
    • 55° with risers
  • Transducers:
    • LF: 1 × 15" neodymium, bass-reflex, laminar vents
    • HF: 1 × 3" neodymium compression driver, ellipsoid waveguide
  • Nominal impedance:
    • LF: 8 Ω
    • HF: 8 Ω
  • Connectors:
    • IN: SpeakON®
    • LINK: SpeakON®
  • Rigging and handling:
    • 2 × handles
    • DIN580-compatible M8 threaded insert
    • 4 × M10 threaded inserts
    • 2 × 35 mm pole sockets
  • Weight (net): 21 kg / 46.2 lb
  • Cabinet: First grade Baltic birch and beech plywood
  • Finish:
    • Dark grey brown Pantone® 426C
    • Custom RAL® code on special order
  • IP: IP43
