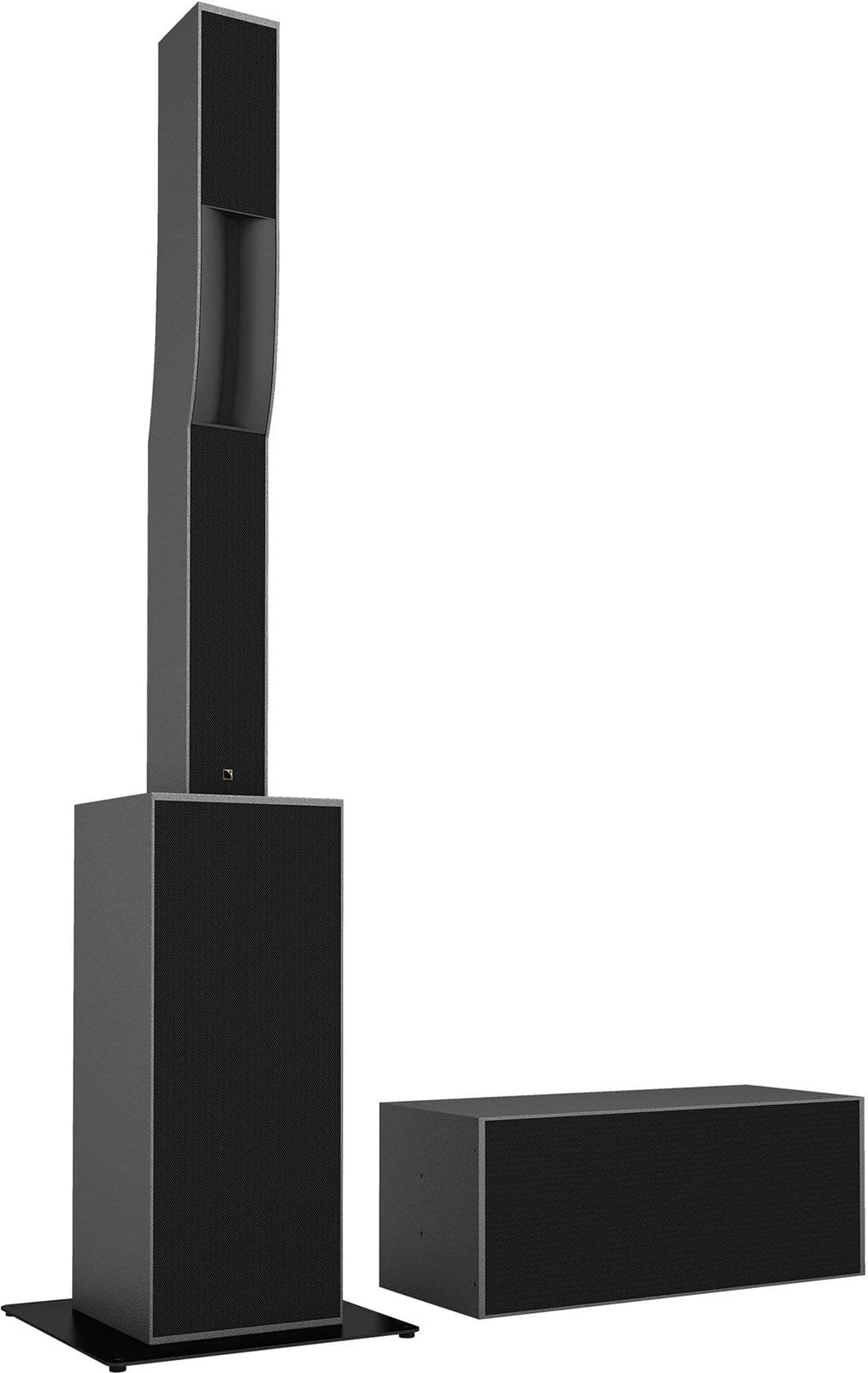

L-Acoustics Syva 2-Way Passive Medium Throw Speaker

Column speaker only - LOW module and SUB not included.

2-way passive enclosure with six 5 in drivers and three 1.75 in diaphragm compression drivers coupled to a cylindrical waveguide with 140° of horizontal directivity and a tightly controlled 26° of vertical directivity. The enclosure cabinet is constructed of premium grade Baltic beech and birch plywood with a slim elegance for easy integration. The enclosure front is protected by a coated steel grill and an acoustically transparent fabric. The enclosure integrates rigging and safety inserts for flown, wall-mount, pole-mount and stacked configuration. The enclosure integrates a signal connector on the bottom panel to connect to the companion subwoofer. Exclusively driven and protected by a proprietary amplified controller through a dedicated preset.

Specifications:

  • Coverage (-6 dB):
    • Vertical directivity: +5°/-21°
    • Horizontal directivity: 140°
  • Transducers:
    • MF transducer: 6 x 5" cone drivers
    • HF transducer: 3 x 1.75" diaphragm compression drivers
  • Acoustics:
    • Nominal impedance: 8 Ω
    • Usable bandwidth: 87 Hz - 20 kHz (-10 dB), 92 Hz - 20 kHz (-6 dB), 102 Hz - 20 kHz (-3 dB)
    • RMS power handling (Calculated using the mean impedance measured on the usable bandwidth): 454 W
    • Maximum SPL: 137 dB (Peak level measured at 1 m under free field conditions using pink noise with crest factor 4)
  • Physical data:
    • Acoustical load: bass-reflex
    • Cabinet: premium grade Baltic beech and birch plywood
    • Dimensions (W, H, D): 144 mm, 1304 mm, 209 mm / 5.7 in, 51.3 in, 8.2 in
    • Weight (net): 21 kg / 46 lb
    • Connectors:
      • 1 × 4-point speakON
      • 1 × 2-point screw terminal
      • 1 x proprietary connector
  • IP: IP54
  • Finish:
    • dark grey brown Pantone 426 C
    • pure white RAL 9010
    • custom RAL code on special order
